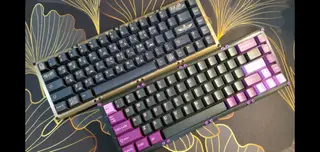

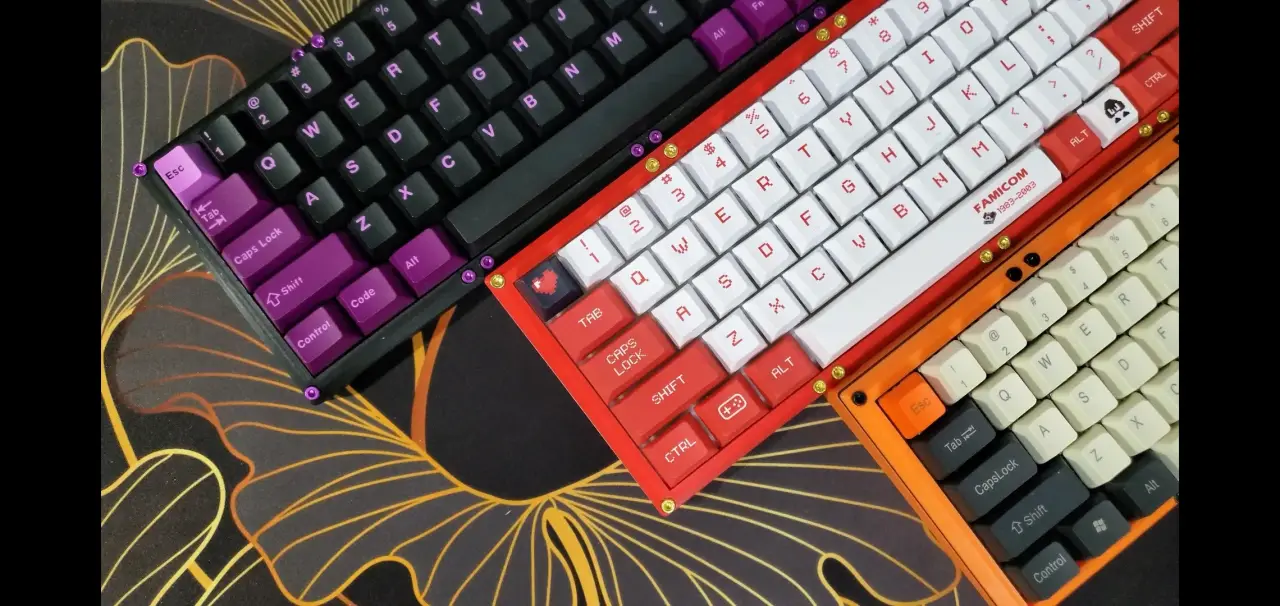

MECHANICAL KEYBOARD - 68 KEY - 65%
por Mad Mod Labs en Printables
Please check out the assembly tutorial for this project: https://youtu.be/iOeYkLlq9Ds
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Mad Mod Labs.
Archivos (10)
- ANSI Plate Left.stl STL · 257 KB
- ANSI Plate Right.stl STL · 264 KB
- BottomRight.stl STL · 188 KB
- BottomMiddle.stl STL · 261 KB
- BottomLeft.stl STL · 165 KB
- BezelRight.stl STL · 293 KB
- BezelLeft.stl STL · 239 KB
- ISOPlateTopLeft.stl STL · 263 KB
- ISOPlateTopRight.stl STL · 250 KB
- Keyboard Files.zip ZIP · 297 KB
- Categoría
- Tecnología
- Formatos
- STL, ZIP
- Descargas
- 1,768
- Publicado
Sobre este modelo
Please check out the assembly tutorial for this project: Update 10/31/2022: Added ISO layout plate version. This keyboard is a revision of a 3D printed Keyboard originally designed my Thingiverse user Fumbucker: https://www.thingiverse.com/thing:3010436 This build uses a Teensy 2.0 and QMK firmware. If you would like to flash the included firmware, make sure your wiring matches the included wiring diagram. You will need: 1 - Teensy 2.0 68 - 1N4148 Diodes 68 - of your favorite mechanical keyboard switches A compatible keycap set 3 - 2unit plate mount stabilizers 1 - 6.25 plate mount stabilizer for the spacebar 1 - USBC Breakout board 8 - 12mm M3 bolts 8 - 20mm M3 bolts 16 - M3 nuts Some wire and maybe some rubber feet for the bottom 3D PRINTING SETTINGS Material: PLA Infill: 20% Layer Height: .2mm Supports: No
