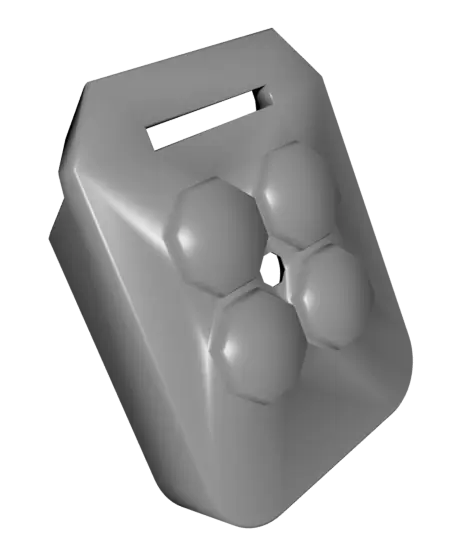

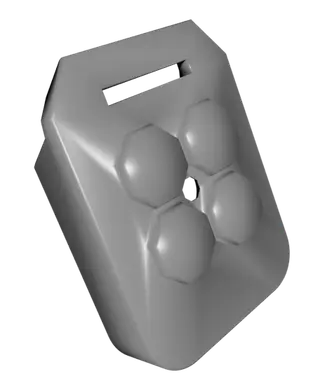

Makita LXT Battery Holder for Multiboard - T-bolt locked
Remix of https://www.printables.com/model/25617-makita-wall-mounts-holders-for-battery-and-tools-1
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Uso comercial permitidoPuedes imprimirlo, modificarlo y venderlo dando crédito al autor.
Al descargar aceptas respetar la licencia y dar crédito a dawidgora.
Archivos (1)
- Makita_LXT_Battery_Holder_for_Multiboard_T-bolt_locked.stl STL · 57 KB
- Categoría
- Herramientas
- Formatos
- STL
- Descargas
- 209
- Publicado
Sobre este modelo
Remix of https://www.printables.com/model/25617-makita-wall-mounts-holders-for-battery-and-tools-1

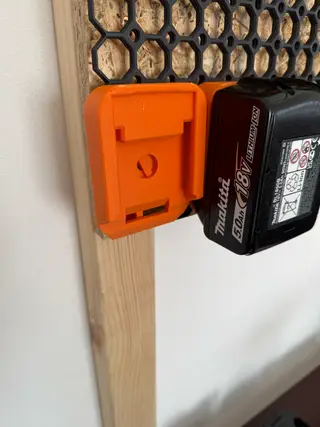

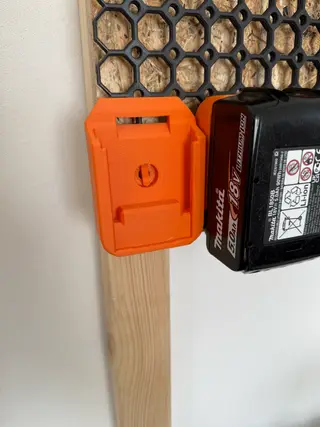

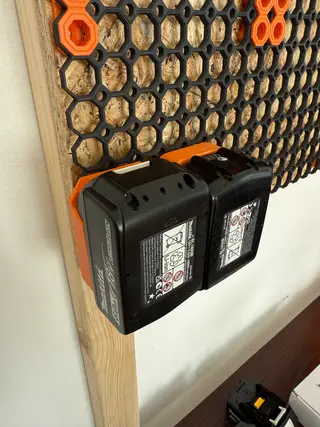

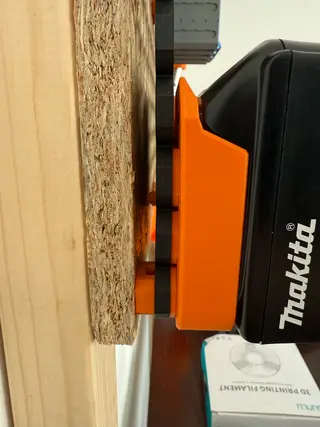

It allows the attachment of Makita batteries to Multiboard - Only requires 1g of support - Around 45g of filament (with support) - Infill: 15% - Wall loops: 3 - Print at a 30-degree angle, as shown on the attached screenshot - Manually draw normal support, as shown on the attached screenshot - Use "13 mm Small Thread, Flat Head, Shank T-Bolt" if your Multiboard is mounted with 8mm offset or "9 mm Small Thread, Flat Head, Shank T-Bolt" if it's mounted flat. - The model includes offsets that allow you to mount it over mounting snaps (see photos)
Descripción original del autor, publicada en Thangs.
