MagSafe iPhone and Airpod Stand — modelo 3D

MagSafe iPhone and Airpod Stand

por pcnc en Printables

Fits Apple MagSafe Wireless Charger for charging iPhone's and AirPods

Descargar gratis Ver en Printables

Todos los archivos (5) en un ZIP

Licencia

Uso comercial permitido

CC BY-SA 4.0 — Atribución, compartir igual

Puedes usarlo y modificarlo dando crédito; las versiones modificadas deben compartirse con la misma licencia.

Al descargar aceptas respetar la licencia y dar crédito a pcnc.

Archivos (5)
Categoría
Tecnología
Formatos
3MF, F3Z, GCODE
Descargas
2,485
Publicado

Sobre este modelo

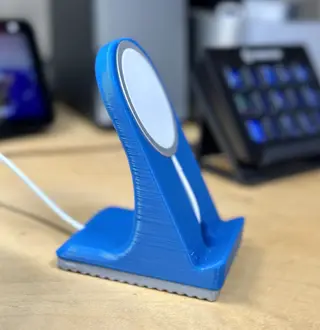

Designed to work ideally with an iPhone 14 Pro or similarly sized iPhone (13, 13 Pro, 14 should be similar) to charge with Apple MagSafe USB-C charger.

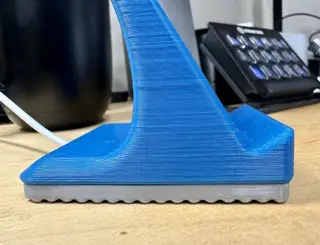

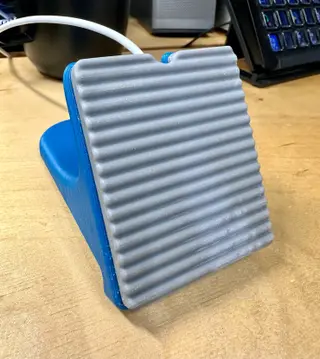

V2 - Added TPU Base After months of use, I wanted to revise this to fix a couple of frustrations. It slid around a little too easily on my desk and if you picked up the phone the cord would misalign when you set it back down. So I added a TPU base that has a bit of non-skid action, a bit more weight, and also when glued to the PLA upper, it captures the cord nicely. The TPU base was printed on a Bambu X1C which has slicing settings included in the 3MF. Basically, run it super slow - 20-25m/s. You do need to apply pressure (clamps) for up to 24 hours to get the glue to adhere.

Upper printed with Duramic PLA, variable layer height, 0.6mm nozzle. Print with part oriented as would be used with only support for the cord slot area underneath.

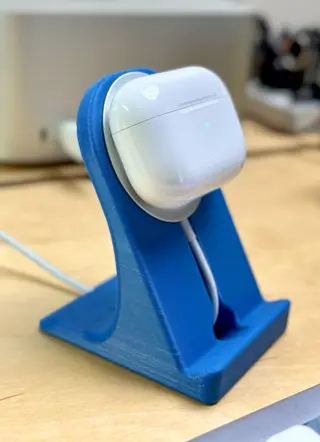

Also works great with AirPods or AirPods Pro.

To adapt for different uses, you can change HeightCenterMS in the Fusion 360 parameters to make the MagSafe location taller or shorter. You'd probably also want to adapt BackTall as well.

Items Includes Affiliate Links - Duramic PLA - Inland TPU - Glue - MagSafe - Small Clamps

See our Products 💙

Descripción original del autor, publicada en Printables.
