MagPod Mini Bluetooth Speaker

MagPod Mini Bluetooth Speaker is a compact, rechargeable, and magnetic 3D-printed Bluetooth speaker designed as a simple DIY electronics project.

The speaker uses a 27 mm 4Ω 3W driver together with a compact Bluetooth 5.4 TWS mono amplifier module. The module includes a built-in 5W amplifier, USB-C charging, an ON/OFF switch, and a 3.5 mm AUX input.

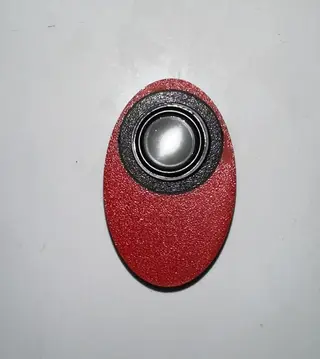

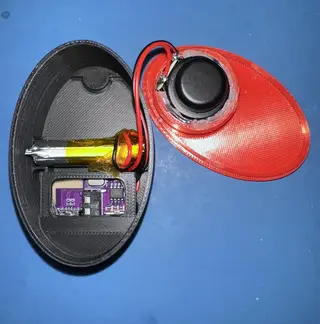

The compact enclosure holds the speaker, Bluetooth board, rechargeable battery, and magnets while keeping the overall design small and portable. 3 × 6 mm neodymium magnets allow the MagPod Mini to attach easily to compatible metal surfaces.

Components used:

1 × 27 mm Mini Speaker, 4Ω 3W

https://s.click.aliexpress.com/e/_c3bepHeZ

https://s.click.aliexpress.com/e/_c4KTLco1

1 × Bluetooth 5.4 TWS Mono Amplifier Module, 5W

https://s.click.aliexpress.com/e/_c3OqWhhr

https://s.click.aliexpress.com/e/_c2QZuztJ

1 × 3.7V rechargeable Li-ion/LiPo battery

3 × 6 mm neodymium magnet(s)

https://s.click.aliexpress.com/e/_c34HXJvX

https://s.click.aliexpress.com/e/_c3700SCp

Kapton Tape

https://s.click.aliexpress.com/e/_c3KaJ8QD

https://s.click.aliexpress.com/e/_c4ctSa3b

Hookup Wire(24 AWG)

https://s.click.aliexpress.com/e/_c2RRdlxR

https://s.click.aliexpress.com/e/_c3SXmYvJ

Hot Glue / Instant Adhesive

https://s.click.aliexpress.com/e/_c4a0bxtb

https://s.click.aliexpress.com/e/_c2ybp8GH

3D-printed enclosure ♻️ Reused Vape Battery

The 3.7V rechargeable battery used in this project was recovered from a disposable vape. In the video linked below, you can see how I recovered, checked, and prepared these batteries for reuse.

Always inspect reused lithium batteries carefully and do not use cells that are swollen, damaged, leaking, punctured, or overheating.

https://www.youtube.com/watch?v=IeT6NTGdaz0

🎥 Complete Build Video

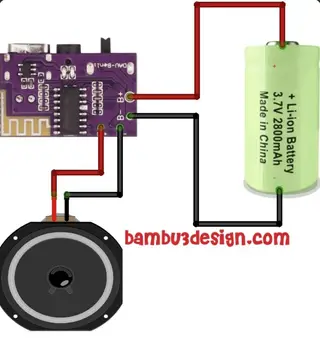

The complete assembly process, including wiring, installation of the electronics, battery, speaker, magnets, and final testing, is available on my YouTube channel in the video below.

https://www.youtube.com/watch?v=58VUAWh9kgU
