Magnetic screw tray and organiser for electronics repair - optimised for 3DS — modelo 3D

Magnetic screw tray and organiser for electronics repair - optimised for 3DS

por Mr Meatbeard en Printables

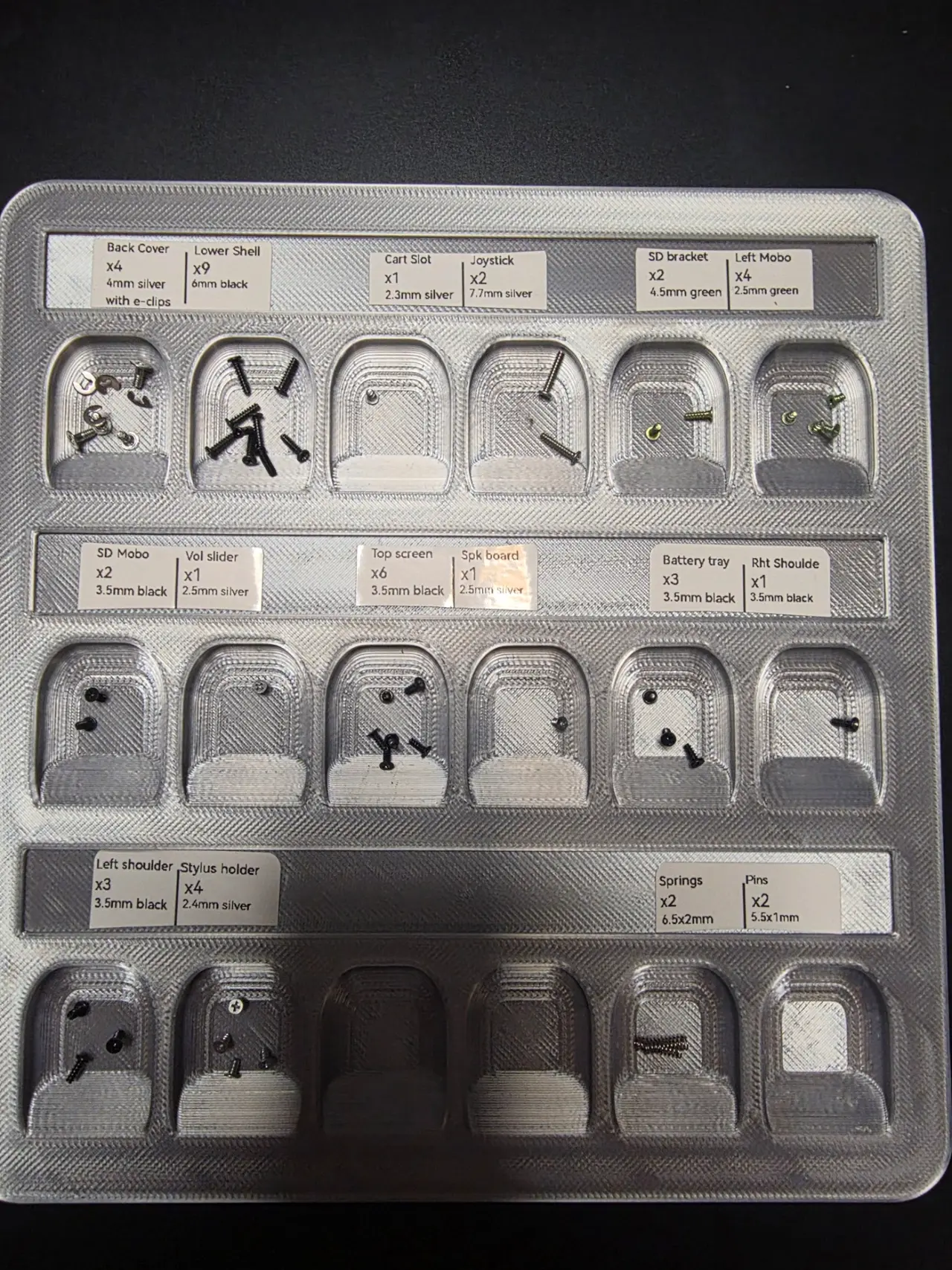

A screw tray with 18 pockets with ez-slide ramps for easy retrieval

Descargar gratis Ver en Printables

Todos los archivos (1) en un ZIP

Licencia

Solo uso personal

CC BY-NC 4.0 — Atribución, no comercial

Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.

Al descargar aceptas respetar la licencia y dar crédito a Mr Meatbeard.

Archivos (1)
Categoría
Tecnología
Formatos
STL
Descargas
1
Publicado

Sobre este modelo

I couldn't find anything to help manage and keep track of screws removed from devices for disassembly and repair that I liked. This has 18 pockets for 18x3mm (with adhesive pad) or 18x4mm (glued) circular magnets. These insert from the bottom, and allow you to stick your tool tray to a metal desk/cabinet for storage. The magnets keep the screws from leaving and I've tested shaking the tray at 90 degrees vertical and screws hold steady. There are 14mm tall recesses for labels to be added if desired which will fit standard P-Touch labels There are also 4 pockets for rubber feet should you wish to use them.

Descripción original del autor, publicada en Printables.
