Magnetic gopro mount base

Model originally uploaded to Thingiverse at https://www.thingiverse.com/thing:4904309.

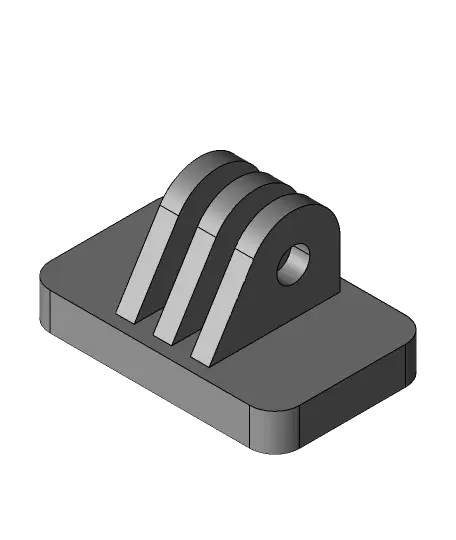

Magnetic GoPro Mount

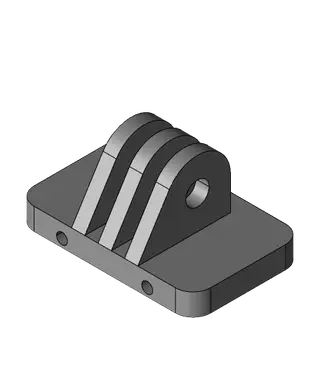

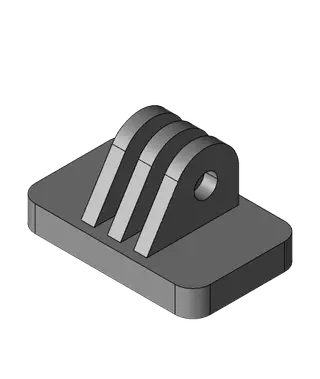

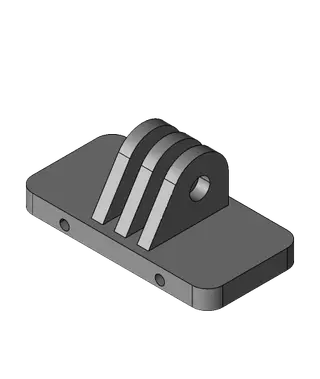

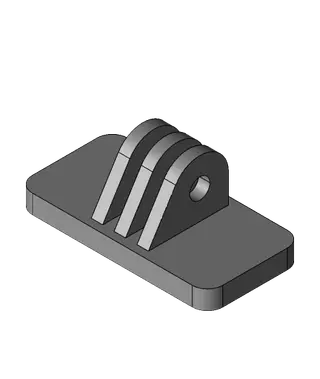

This GoPro mount is fixed with magnets. It uses neodymium magnets with a diameter of 13mm and a thickness of 2.5MM or 16mm and a thickness of 2.3mm. Two types are available: the type where the magnet is pushed into the back side and attached with double-sided tape or adhesive, and the type where the magnet is pushed into the slit and fixed.

The round indentations can be covered with rubber to prevent slippage. Apply double-sided tape to the rubber sheet and punch out a round shape with a hole punch.

The slit type has less fixing power, but you can choose the one that best suits your application. The one that uses two 13mm neodymium magnets stacked on top of each other has the strongest fixing power. Although not recommended and not guaranteed, we were able to hold our iphone horizontally.

I used the data here to mount my iphone. It's a great model and I'm very grateful for it. Object Holders for LiftPod by HeyVye October 16, 2020 https://www.thingiverse.com/thing:4625349

The arm I make for the octoprint-camera is in preparation, but should work with many GoPro mount arms and camera mounts.

2021/07/13 Sorry. The 16mm data I uploaded was wrong, so I replaced it. GoPro_mount_16mm_hole.stl GoPro_mount_16mm_slot.stl
