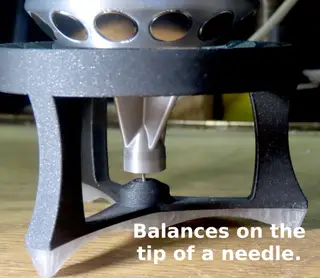

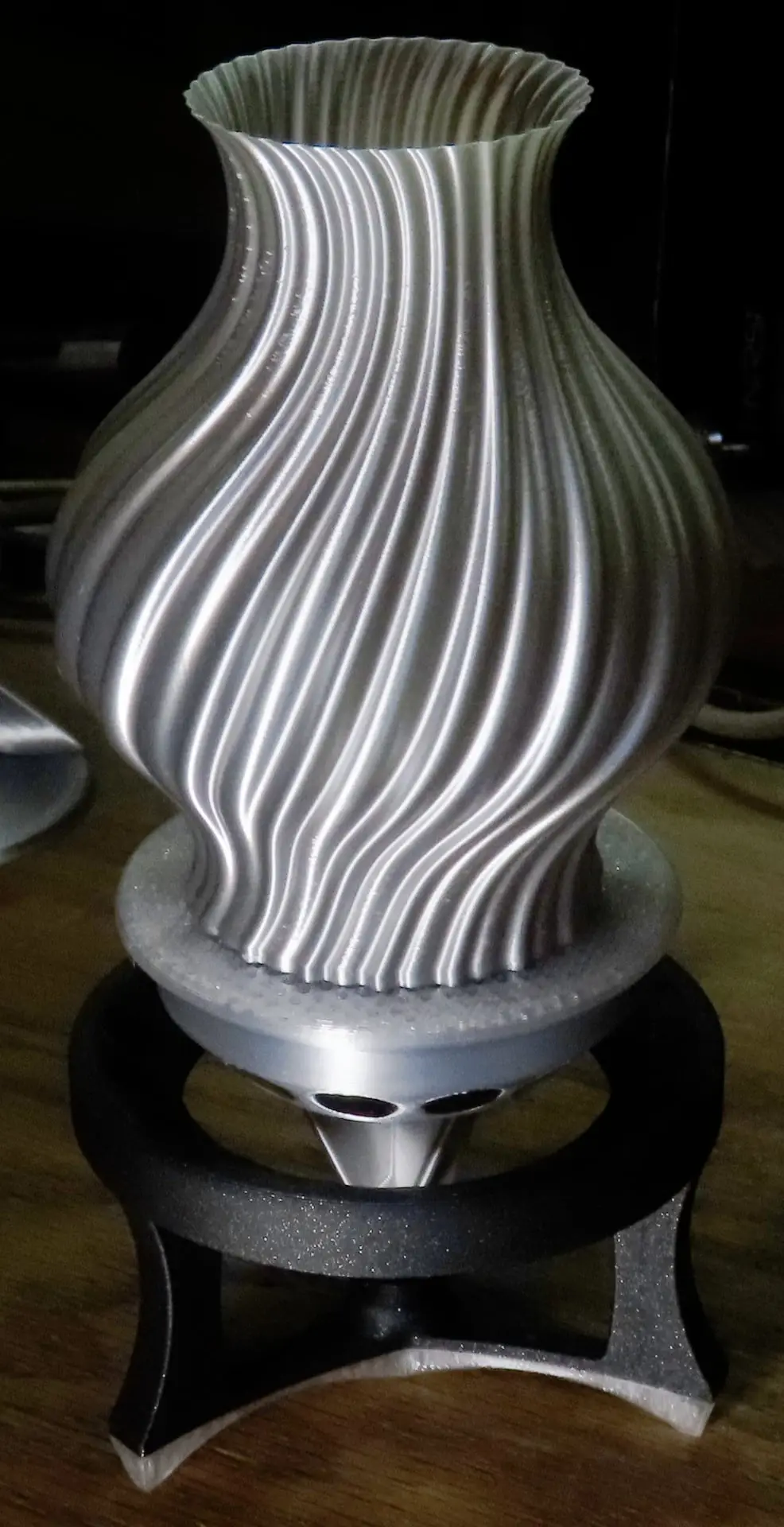

Magnetic floating display stand. Balances on the tip of a needle.
por loughkb en Thingiverse
This project took awhile to get right. The parts should print well, supports will be needed for the base and the magnet sorter base. There is a demo video linked below that also includes detailed assembly notes. You really should watch that to have success the first time with this build. Use the...
Licencia
Solo uso personalCC BY-NC 4.0 — Atribución, no comercial
Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a loughkb.
Archivos (11)
- Base.stl STL · 2,3 MB

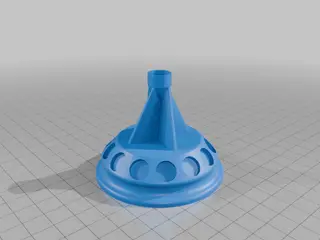

- Display_stand_28mm_length.stl STL · 3,9 MB
- Display_stand_29mm_length.stl STL · 3,9 MB

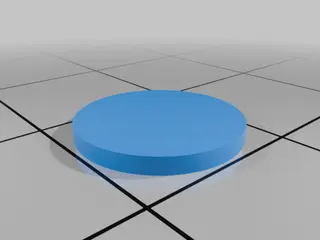

- magnet_cover.stl STL · 22 KB
- TPU_cover.stl STL · 61 KB
- TPU_Foot.stl STL · 1,1 MB
- Magnet_sorter-arrow_magnet_holder.stl STL · 45 KB
- Magnet_sorter-Arrow.stl STL · 476 KB
- Magnet_sorter-Sled.stl STL · 60 KB
- Magnet_sorter-base.stl STL · 294 KB
- Spiral_demo_piece-Body.stl STL · 39,5 MB
- Categoría
- Figuras y arte
- Formatos
- STL
- Descargas
- 2
- Publicado
Sobre este modelo
This project took awhile to get right. The parts should print well, supports will be needed for the base and the magnet sorter base. There is a demo video linked below that also includes detailed assembly notes. You really should watch that to have success the first time with this build. Use the magnets linked to get working results. It's designed around their strength level. There is a magnet sorting tool provided to allow you to match up the ring magnets to get smooth operation. Fine tuning can be accomplished with the needle length. Start at 6mm. Adjusting length in 0.5 mm increments to achieve the desired stability. Yes, it's that sensitive. Here's the video link, please watch it before attempting this build: https://youtu.be/-RGMrLz-3Gk These are the magnets to use: https://www.amazon.com/dp/B07D8QPG2Y
Descripción original del autor, publicada en Thingiverse.
