Magic Mushroom Lamp – Touch & Magnetic LED Light — modelo 3D

Magic Mushroom Lamp – Touch & Magnetic LED Light

por Bambu3Design en MyMiniFactory

Bring a little magic to your desk with this interactive 3D-printed mushroom lamp.

Descargar en MyMiniFactory

MyMiniFactory entrega los archivos a usuarios con cuenta gratuita

Licencia

Solo uso personal

CC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual

Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.

Al descargar aceptas respetar la licencia y dar crédito a Bambu3Design.

Archivos (8)
  • Bambu3design.3mf 3MF
  • obj_1_02.STL.stl STL
  • obj_2_01.STL.stl STL
  • obj_3_08.STL.stl STL
  • obj_4_05.STL.stl STL
  • obj_5_03.STL.stl STL
  • obj_6_07.STL.stl STL
  • obj_7_04.STL.stl STL
Categoría
Hogar
Formatos
3MF, STL
Descargas (todas las plataformas)
29
Publicado

También en

Sobre este modelo

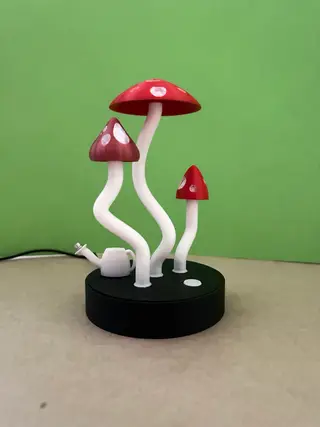

Bring a little magic to your desk with this interactive 3D-printed mushroom lamp.

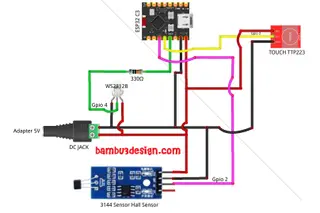

This project combines a decorative mushroom design with programmable WS2812B LEDs, touch control, multiple lighting modes, and a magnetic watering effect. The lamp is controlled using an ESP32-C3 SuperMini and includes several interactive features.

With a single touch, you can turn the lamp on or off. A double tap cycles through multiple colors, including 12 fixed colors and a Rainbow mode. Holding the touch sensor activates a smooth breathing-light effect using the currently selected color. The lamp also includes a warm white night-light mode.

One of the most unique features is the magnetic watering effect. When the small watering can containing a magnet is brought close to the Hall sensor, the LEDs illuminate green from the bottom upward through the mushroom stems. When the watering can is moved away, the green light returns downward from the same point.

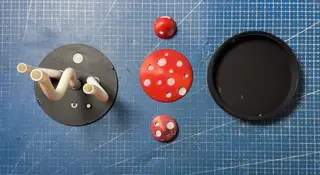

The mushroom stems can be printed using white or translucent filament to help diffuse the light, while the base and mushroom caps can be printed in any color combination you prefer.

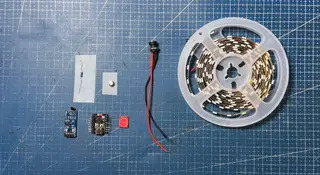

Required Components

- ESP32-C3 SuperMini https://s.click.aliexpress.com/e/_c2zsPg2d

https://s.click.aliexpress.com/e/_c4lGYIBP

- 30 cm WS2812B 5V Addressable RGB LED Strip https://s.click.aliexpress.com/e/_c4nDwV7L

https://s.click.aliexpress.com/e/_c39BBKgt

- TTP223 capacitive touch sensor https://s.click.aliexpress.com/e/_c2vri309

https://s.click.aliexpress.com/e/_c4VnuE9L

- Hall effect sensor module (3144) https://s.click.aliexpress.com/e/_c2xgluQN

https://s.click.aliexpress.com/e/_c3WyzcOl

- Small neodymium magnet (5X1.5) https://s.click.aliexpress.com/e/_c3TcghBT

https://s.click.aliexpress.com/e/_c3NaVZYl

https://s.click.aliexpress.com/e/_c3AWhsKH

- 330 Ω resistor for the WS2812B data line

- https://s.click.aliexpress.com/e/_c30mRkAz

https://s.click.aliexpress.com/e/_c4e9RGkZ

https://s.click.aliexpress.com/e/_c4SqqInf

- 5V power supply https://s.click.aliexpress.com/e/_c4CRkueH

https://s.click.aliexpress.com/e/_c4VrO1bx

- Jumper wires https://s.click.aliexpress.com/e/_c4166kPJ

https://s.click.aliexpress.com/e/_c3KhBPrj

https://s.click.aliexpress.com/e/_c4TIEsEN

- 5.5 × 2.1 mm DC Power Jack https://s.click.aliexpress.com/e/_c4UMUb9x

https://s.click.aliexpress.com/e/_c3XYlctJ

- Heat-shrink tubing

- https://s.click.aliexpress.com/e/_c2ySp7Yt

Descripción original del autor, publicada en MyMiniFactory.
