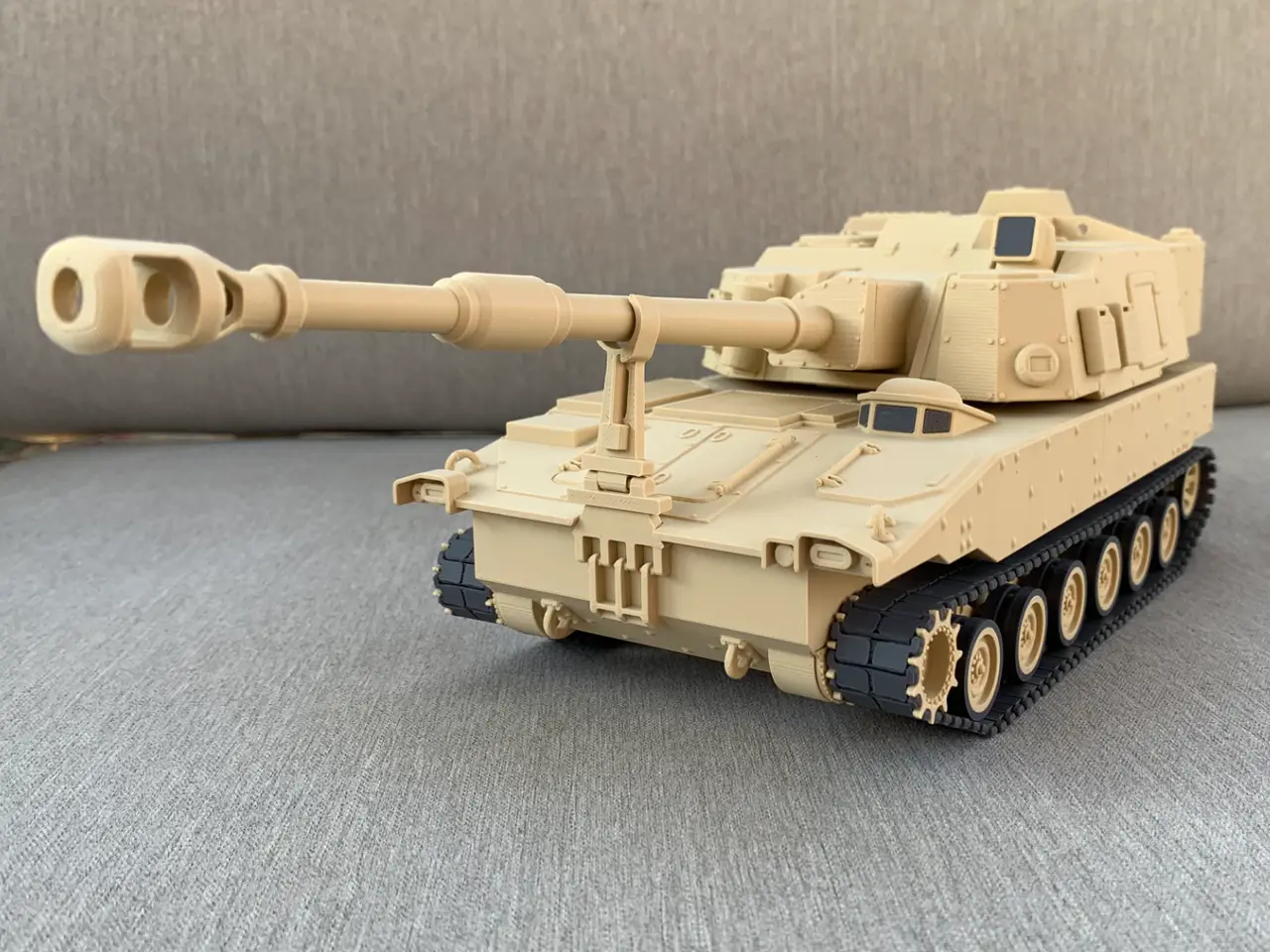

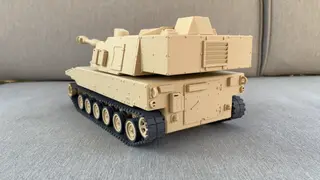

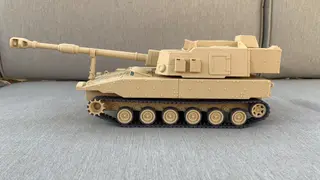

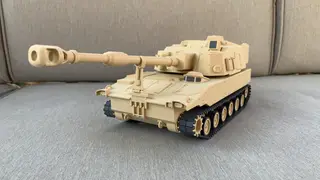

M109A7 Paladin Self-Propelled Howitzer
por Sgt_Reckless en MakerWorld
Please make sure you are printing the tracks at 0.08 mm layer height. This is a detailed and fully printable M109A7 Paladin Self-Propelled Howitzer modeled from scratch with Autodesk Fusion. This vehicle is currently operated by the U.S. Army and can fire 155mm barrages of Freedom and Democracy.…
MakerWorld entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalStandard Digital File License
Licencia estándar de archivos digitales: solo uso personal. No se permite compartir, revender ni subir el archivo a otros sitios, ni vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a Sgt_Reckless.
Archivos (24)
- Barrell stand.stl.stl STL · 274 KB
- Driver.stl.stl STL · 895 KB
- Fuel Jug.stl.stl STL · 1,7 MB
- Glass Front.stl.stl STL · 1 KB
- Glass Side L.stl.stl STL · 1 KB
- Glass Side R.stl.stl STL · 1 KB
- Gun Peg.stl.stl STL · 1 KB
- Hull 1.stl.stl STL · 1,8 MB
- Hull 2.stl.stl STL · 1,4 MB
- Hull Peg.stl.stl STL · 1 KB
- Idler.stl.stl STL · 1,3 MB
- Muzzle.stl.stl STL · 1,8 MB
- Rear Idler.stl.stl STL · 1,5 MB
- scope screen.stl.stl STL · 16 KB
- Tire Rear.stl.stl STL · 71 KB
- Tire.stl.stl STL · 70 KB
- Track Link 2.stl.stl STL · 281 KB
- Tracks Left.stl.stl STL · 445 KB
- Tracks Right.stl.stl STL · 445 KB
- Turret Bore.stl.stl STL · 291 KB
- Turret Main.stl.stl STL · 1,4 MB
- Turret Part Peg.stl.stl STL · 1 KB
- Turret Rear Part.stl.stl STL · 109 KB
- Turret Rear.stl.stl STL · 692 KB
- Categoría
- Educación
- Formatos
- STL
- Descargas
- 6,506
- Publicado
Sobre este modelo
Please make sure you are printing the tracks at 0.08 mm layer height.
This is a detailed and fully printable M109A7 Paladin Self-Propelled Howitzer modeled from scratch with Autodesk Fusion. This vehicle is currently operated by the U.S. Army and can fire 155mm barrages of Freedom and Democracy. This 1:27 scaled model is meant to be a static desktop display that's fun to put together and nice to look at. Currently, neither the gun nor the tracks can move around, but that could change later on. This model does not require an AMS.
Although many of the main components can be press-fitted together, it will require a little bit of plastic glue and a lot patience as all 182 track links (91 on each side) have to be clipped together one at a time. Have some fun with it, I welcome any positive feedback.
Here's a banana for scale so you know what you're getting into:
Filaments used: Bambu PLA Basic Dark Grey (10105) + Bambu PLA Matte Desert Tan (11401)
Brief assembly instructions
Assembling the components for this model is pretty straight forward. But if you don't know where to start, simply follow the steps below:
Hull/turret assembly
- Use the provided dowel pins to join the sections together, those are there so you don't spend too much time with alignment. Those parts could also be press-fitted, but a little bit of glue is recommended.

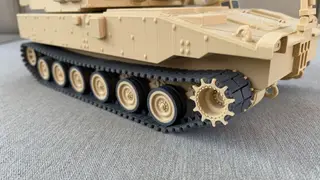

Track system assembly
- Fit the circular tires onto the roadwheels and the rear idler, note that there are two different types of tires, there are 4 tires that are slightly thinner than the rest, those will go onto the rear idler. The thicker ones goes onto the roadwheels. Glue is required if the parts are slightly lose.
- Place the drive sprocket, roadwheels, and the rear idler onto the wheel housing plate, glue is required to keep the components attached.
- Attach your assembled wheel housing to the hull you previously assembled. Glue required.
- Assemble the track links, 91 links on each side. Use a flat surface to press the track links into each other. Highly recommend doing sets of 10 links do you don't lose count.
- Wrap your assembled tracks around and enclosing all the wheel components.
