Lyman / Mulier Filament Extruder V5
por Hugh Lyman en Thingiverse

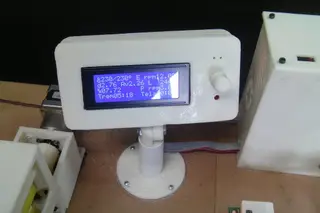

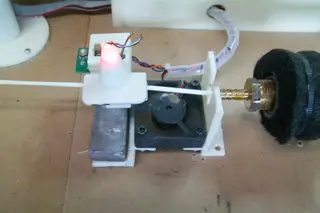

The Lyman / Mulier Filament Extruder V5 extrudes filament for use in 3D printers. Features: Stepper Gear Motors LCD control of Ramps for all functions Filament Diameter Sensor Level Winding filament onto Filament Spool. Manual is 60 pages and there are 35 stl part files in the zip folder. BOM for...
Licencia
Uso comercial permitidoPuedes imprimirlo, modificarlo y venderlo dando crédito al autor.
Al descargar aceptas respetar la licencia y dar crédito a Hugh Lyman.
Archivos (9)
- STL_PARTS_ZIP.zip ZIP · 833 KB
- A07_PART_3_STL_28_WORM_GEAR.stl STL · 393 KB
- A03_PART_1_STL_6B_SENSOR_CASE_CONE.stl STL · 55 KB
- A02_PART_11_STL_1__EXTR_BASE_NO_OUTRIGGER.stl STL · 118 KB
- LYMAN_MULIER_FILAMENT_EXTRUDER_V5_MANUAL_R1.pdf PDF · 5,3 MB
- A02_PART_19_STL_4_FUNNEL_BASE.stl STL · 720 KB
- A05_PART_4_STL_18_PED_CASE_NO_OUTS.stl STL · 112 KB
- LEVEL_WIND_NEW_WORM_GEAR.zip ZIP · 524 KB
- LEVEL_WIND_SQ_GUIDE_with_Clips.stl STL · 45 KB
- Categoría
- Para tu impresora
- Formatos
- ZIP, STL, PDF
- Descargas
- 70,509
- Publicado
Sobre este modelo

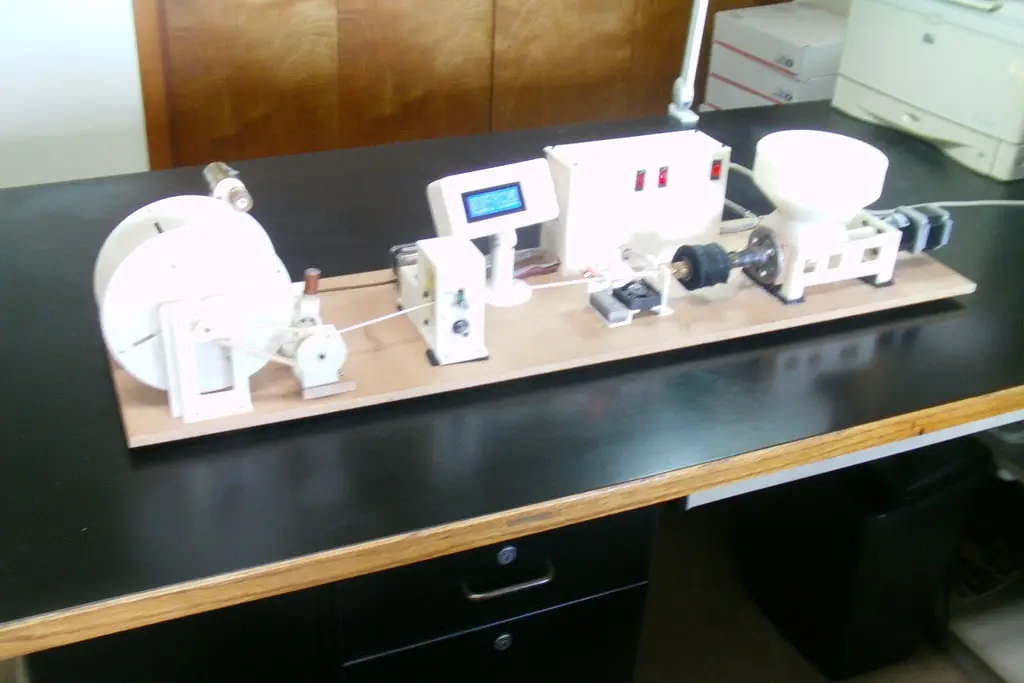

The Lyman / Mulier Filament Extruder V5 extrudes filament for use in 3D printers. Features: Stepper Gear Motors LCD control of Ramps for all functions Filament Diameter Sensor Level Winding filament onto Filament Spool. Manual is 60 pages and there are 35 stl part files in the zip folder. BOM for each sub assembly is included with each exploded view of the assembly. Material Cost of about $600. Video Link: https://www.youtube.com/watch?v=vL9zDOdRqBo
Descripción original del autor, publicada en Thingiverse.
