LTS Respooler - Motorized Filament Winder
por LTS Design en MakerWorld
This compact Filament Respooler incorporates a stepper motor and a filament runout sensor for ease of use. You can also use the app to fine-tune the settings and monitor the progress. In my experience, it works great! The Respooler is optimized for the Bambu Lab reusable spools and compatibility…
MakerWorld entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalMakerWorld Exclusive License
Licencia exclusiva de la plataforma: uso personal, no se permite compartir el archivo ni vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a LTS Design.
Archivos (40)
- LTS Respooler V4 full 3D Model.step STEP · 22,9 MB
- Brace Single x2.stl STL · 49 KB
- Bottom Roller x2.stl STL · 129 KB
- Top Roller x2.stl STL · 881 KB
- Big Gear.stl STL · 2,0 MB
- Small Gear.stl STL · 2,1 MB
- Bearing Washer.stl STL · 58 KB
- Filament Guide Lid x2.stl STL · 55 KB
- Guide Pulley x2.stl STL · 987 KB
- Gear Shaft.stl STL · 187 KB
- Spool Shaft.stl STL · 241 KB
- Tension 1 Washer.stl STL · 58 KB
- Tension 2 Washer.stl STL · 61 KB
- Tension Pulley Top x2.stl STL · 173 KB
- Tension Pulley Bottom x2.stl STL · 183 KB
- Motor Pulley.stl STL · 1,0 MB
- Washer Spool Shaft.stl STL · 68 KB
- Motor Base V3.stl STL · 333 KB
- Base.stl STL · 371 KB
- Brace Double.stl STL · 129 KB
- TPU Foot 1 x2.stl STL · 46 KB
- TPU Foot 2.stl STL · 35 KB
- Electronics Case Control Board V3.stl STL · 490 KB
- Spool Center.stl STL · 1,4 MB
- Spool Nut.stl STL · 1014 KB
- Control Panel Button.stl STL · 100 KB
- Motor Base.stl STL · 363 KB
- Tension 1 Holder.stl STL · 153 KB
- Tension 2 Holder.stl STL · 141 KB
- Worm Gear x2.stl STL · 2,3 MB
- Electronics Case Control Board.stl STL · 553 KB
- Electronics Case ESP32.stl STL · 553 KB
- Electronics Case Lid.stl STL · 276 KB
- Control Panel Single Color.stl STL · 382 KB
- Control Panel Plate.stl STL · 39 KB
- Filament Switch Stopper.stl STL · 989 KB
- Filament Guide.stl STL · 2,0 MB
- Filament Guide Pin x2.stl STL · 295 KB
- Frame L.stl STL · 454 KB
- Frame R.stl STL · 708 KB
- Categoría
- Para tu impresora
- Formatos
- STEP, STL
- Descargas
- 11,157
- Publicado
Sobre este modelo

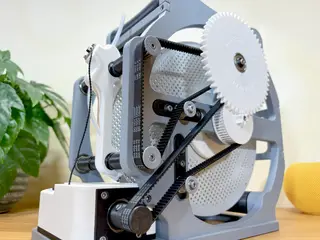

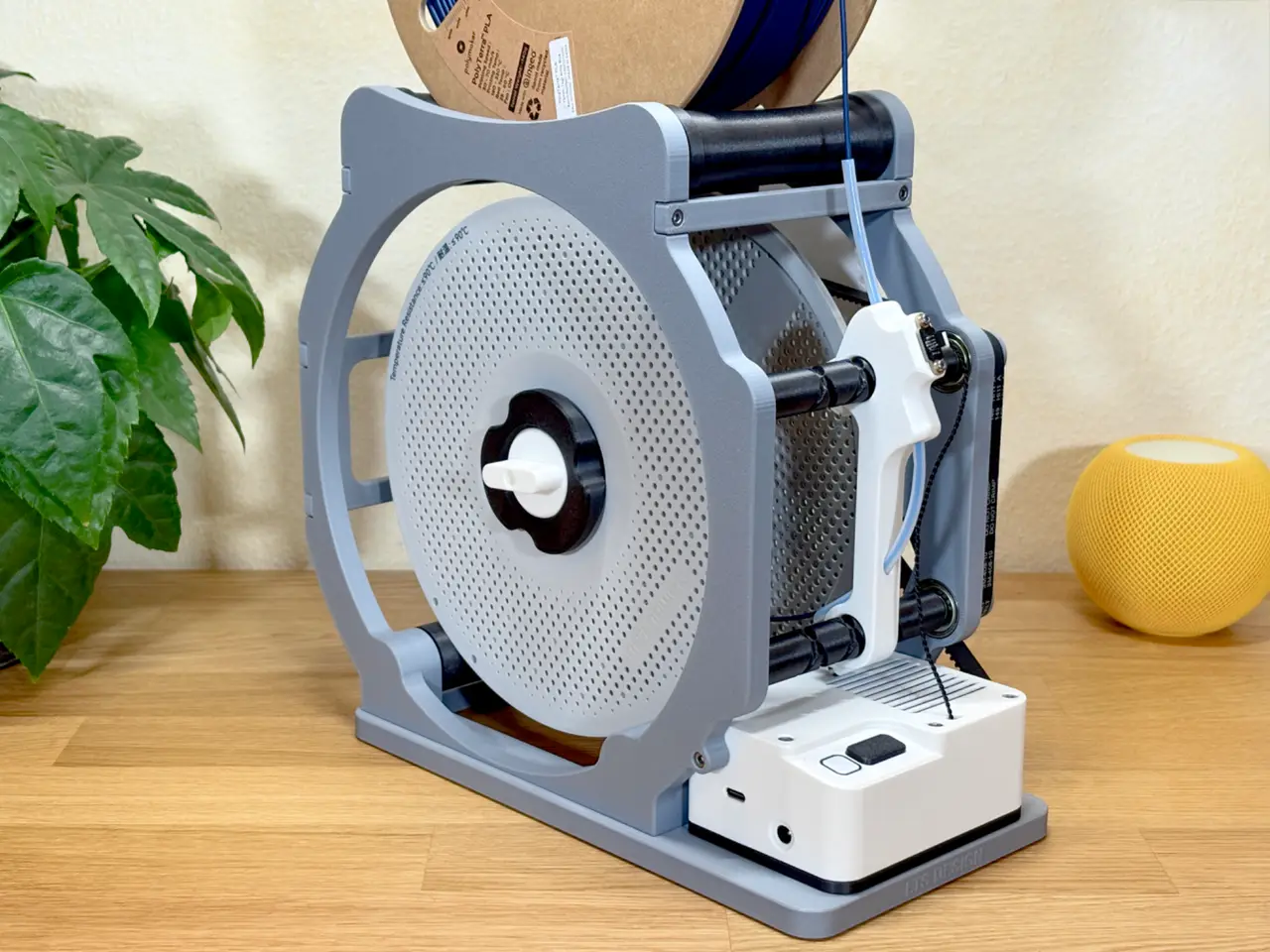

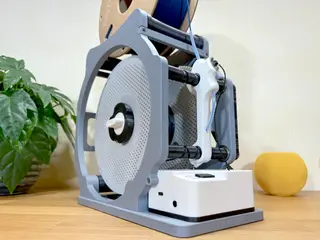

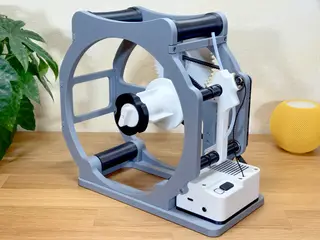

This compact Filament Respooler incorporates a stepper motor and a filament runout sensor for ease of use. You can also use the app to fine-tune the settings and monitor the progress. In my experience, it works great! The Respooler is optimized for the Bambu Lab reusable spools and compatibility with other manufacturers is not guaranteed.
Improved Respooler Pro now available here!
🗒️ Detailed Bill of Materials and Instructions PDFs in the downloads section!
Needed Hardware and Electronics:
- The Respooler uses an ESP32 to control all the functions
- Most of the needed parts can be ordered via Bambu Lab's Maker's Supply, just use the “BUY NOW” button at the bottom of this page
- To connect the ESP32 with the rest of the electronics, there is a custom PCB available via my Store or you can order your own from the provided Gerber files. There is also a shared project on PCBWay.
- Flash the needed code to the ESP32 using the Web Flasher
Please check for the availability of the PCBs first before printing or purchasing the other parts!
📁 All the code, Gerber files along with the print profiles for previous versions are on GitHub.
There is an iOS App to configure and control the Respooler! Android users can use the Web version for now. The app is optional! The Respooler still works completely fine without it. I made it mostly for fun and to learn app development. Get it here:
How to use it:
- Feed the filament from the top spool through the PTFE tube
- The LED will turn green. Without filament, the motor does not start
- Attach the filament to the bottom spool (I recommend this model) and press the button
- Once all the Filament has been transferred, the motor will automatically stop
- If you want to pause the winding, just press the button again
Video of the Respooler in action: YouTube
Changelog:
Changes for V4:

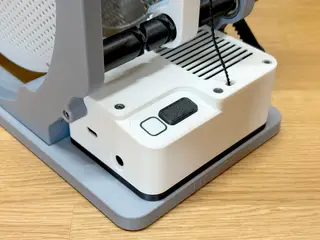

- updated Electronics Case, working with ESP32 and Maker's Supply button/LED
- updated Filament Guide, working with Maker's Supply switch
- improved Spool Center geometry
Changes for V3:
- different pulleys to be compatible with 10 mm wide HDT belt
- motor belt tension now more easily adjustable
- way thicker Spool Shaft for more strength
Changes for V2:
- new Frame and Base geometry for smaller footprint when printing
Descripción original del autor, publicada en MakerWorld.
