LPE Exhaust Quick Release and Mounting System

por Paul B en Thangs

Quick Connect Exhaust System

Descargar en Thangs

Thangs entrega los archivos a usuarios con cuenta gratuita

Licencia

Revisa las condiciones

LogicalPlanet General Non-Commercial License

El autor publicó su propia licencia comercial. Revisa sus condiciones en la página original.

Al descargar aceptas respetar la licencia y dar crédito a Paul B.

Archivos (15)

LPE25-C91 Head Cap 1v00.stl STL · 17,0 MB
LPE25-C92 Tube Cap 1v00.stl STL · 17,0 MB
LPE25-DH1 Dual Head Manifold 1v00.stl STL · 4,0 MB
LPE25-E11 End Ring 1v00.stl STL · 174 KB
LPE25-F60 6060 Fan Connector 1v00.stl STL · 654 KB
LPE25-H00 Head 1v00.stl STL · 8,7 MB
LPE25-HG1 1v00.stl STL · 64 KB
LPE25-M21 Mount Ring 1v00.stl STL · 248 KB
LPE25-M22 Middle Ring 1v00.stl STL · 198 KB
LPE25-MW1 Wall Clamp Mount 1v00.stl STL · 1,6 MB
LPE25-WV1 Wall Vent Port 1v00.stl STL · 620 KB
LPE25-X80 Internal Ring 1v00.stl STL · 151 KB
LPE25-X81 100mm Extension 1v00.stl STL · 248 KB
LPE25-X82 200mm Extension 1v00.stl STL · 248 KB
LPE25-Y41 Y Section 1v00.stl STL · 1,6 MB

Categoría: Para tu impresora
Formatos: STL
Descargas (todas las plataformas): 1,326
Publicado: 19 de julio de 2024

También en

Thangs Licencia comercial · ↓ 604

Sobre este modelo

Quick Connect Exhaust System v1.00

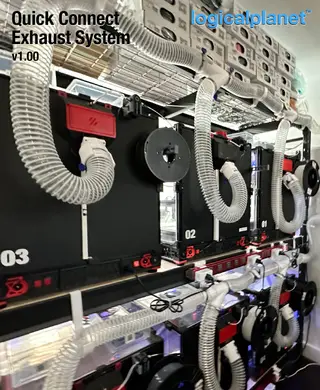

If you're running multiple 3D printers — or any setup that needs exhaust or vacuum ducting — managing a tangle of hoses and clamps gets old fast. The Quick Connect Exhaust System is a modular, tool-free ducting system designed to make connecting, disconnecting, routing, and mounting exhaust hoses actually pleasant.

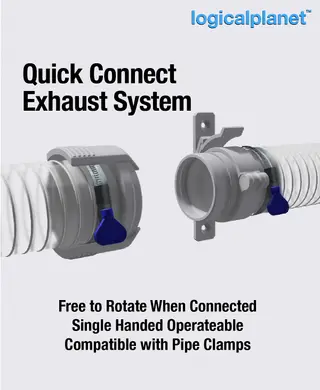

The Quick Release Head snaps on and off with one hand. The whole system rotates freely when connected, so you can reposition without fighting your hoses. And if you prefer traditional pipe clamps, every component is fully reverse compatible — nothing is locked into the quick-connect approach.

---

Key Features - One-handed quick connect and disconnect — no tools, no clamps required - Free to rotate when connected — reposition hoses without disconnecting - Snap-lock mounting brackets — print-in-place swing clamp latches securely, releases with a thumb press - Modular and expandable — mix and match connectors, extensions, and manifolds to suit your layout - Reverse compatible with standard pipe clamps — use what you already have - Scales to any size setup — single printer to full multi-printer manifold runs

---

What's in the System

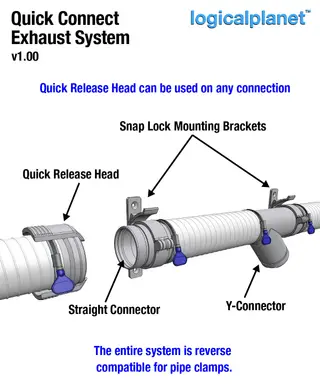

Core Connection Parts - LPE25-H00 — Quick Release Head - LPE25-HG1 — Gasket (for Quick Release Head) - LPE25-E11 — End Ring - LPE25-M22 — Middle Ring (Straight Connector) - LPE25-M21 — Mount Ring (Y-Connector) - LPE25-Y41 — Y Section

Extensions - LPE25-X80 — Internal Connector Ring - LPE25-X81 — 100mm Extension - LPE25-X82 — 200mm Extension

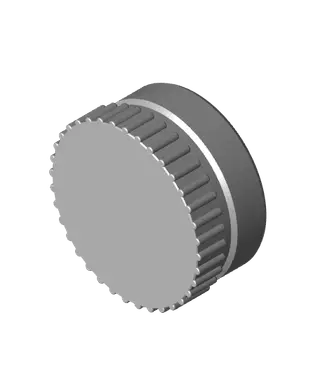

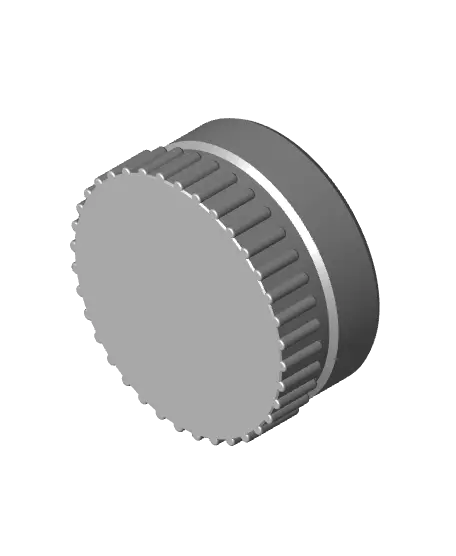

Caps - LPE25-C91 — Head Cap - LPE25-C92 — Tube Cap

Mounting - LPE25-MW1 — Wall Mounting Bracket (print-in-place swing clamp)

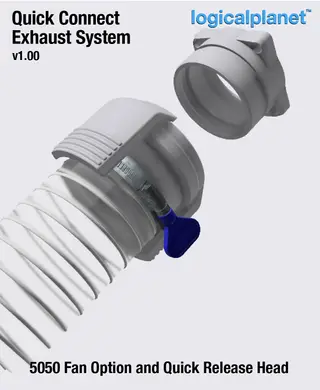

Fan Connectors - LPE25-F60 — 6060 Fan Connector Mount - LPE25-DH1 — Dual Head Manifold (120mm fan) - LPE25-WV1 — Wall Vent Port

---

How to Build It

Each accessory part (Straight Connector, Y-Connector, Fan Connector) is assembled from rings that glue together. Apply a bead of CA or epoxy glue around the mating surface of each ring before pressing together. Extensions (LPE25-X81, LPE25-X82) slot in between the rings of any accessory part, letting you dial in the exact length you need.

The Quick Release Head (LPE25-H00) can be used on any connection point in the system and is optional — any connection can also be made permanent or secured with a standard pipe clamp.

See the Selector Guide and Build Guide images for full assembly diagrams.

---

Print Settings - Recommended material: PETG or PLA - Nozzle: 0.4mm - Layer height: 0.2mm - Line width: 0.4mm - Wall count: 4 (1.6mm)

---

Thru-Wall Components

A companion series of thru-wall components is available separately:

Quick Connect Exhaust System — Thru-Wall Series https://than.gs/m/1206813

---
