Low-profile DIN Rail Bracket for Raspberry Pi, SKR Pico, and BTT Pi 1.2.
por tn00364361 en Printables

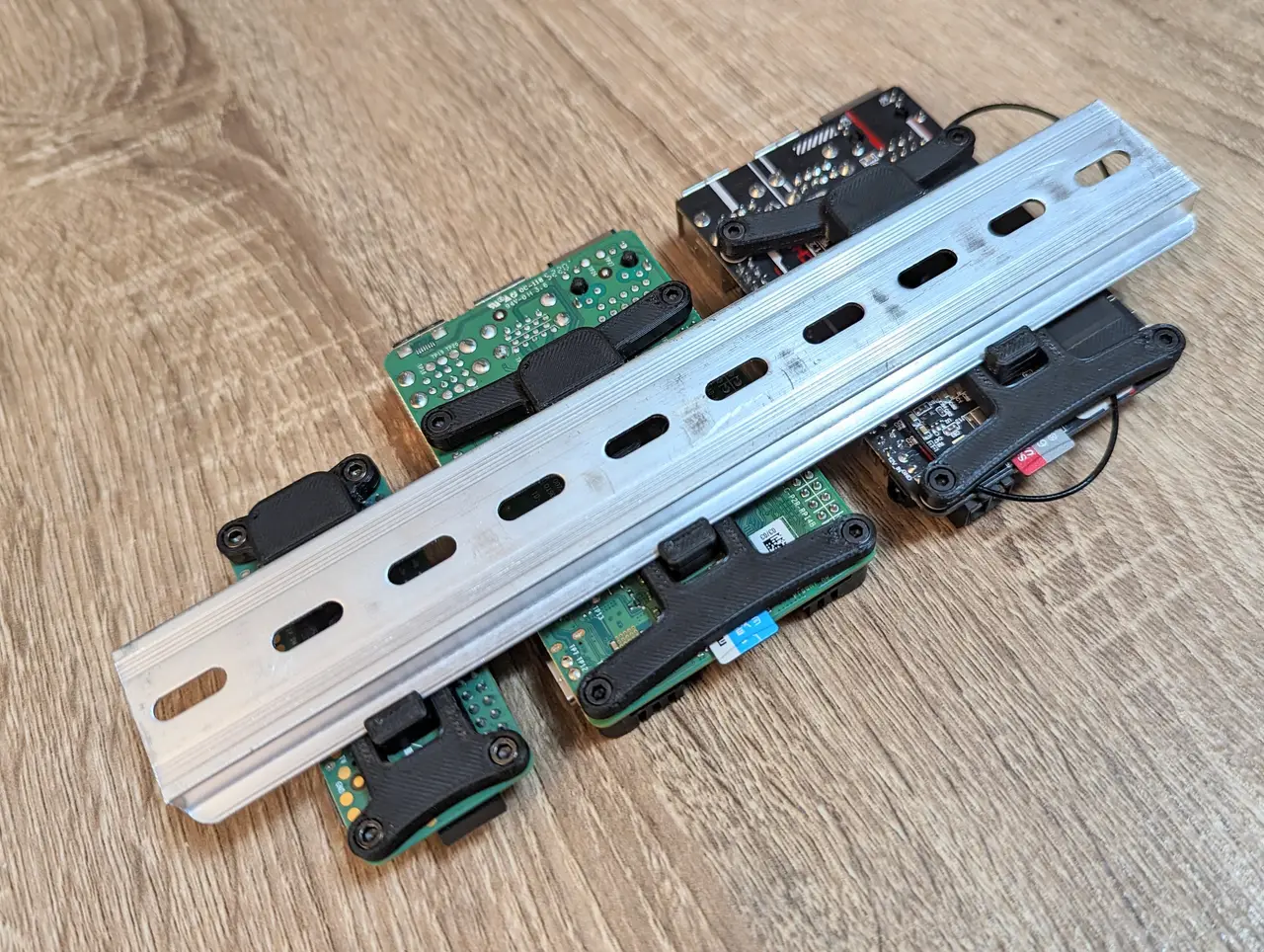

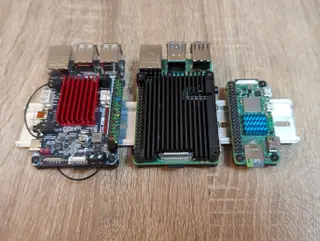

These DIN rail brackets are designed for Raspberry Pi, SKR Pico, and BTT Pi 1.2 boards.
Licencia
Solo uso personalCC BY-NC 4.0 — Atribución, no comercial
Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a tn00364361.
Archivos (8)
- DIN Rail Bracket_BTT Pi 1.2.3mf 3MF · 114 KB
- DIN Rail Bracket_BTT Pi 1.2.step STEP · 337 KB
- DIN Rail Bracket_Raspberry Pi.3mf 3MF · 116 KB
- DIN Rail Bracket_Raspberry Pi.step STEP · 338 KB
- DIN Rail Bracket_Raspberry Pi Zero.3mf 3MF · 131 KB
- DIN Rail Bracket_Raspberry Pi Zero.step STEP · 338 KB
- spacer_2mm.3mf 3MF · 106 KB
- spacer_2mm.step STEP · 12 KB
- Categoría
- Para tu impresora
- Formatos
- 3MF, STEP
- Descargas
- 1,594
- Publicado
Sobre este modelo
The mounting holes for the BTT Pi 1.2 are measured directly from the STEP file in BTT's GitHub repository, as they differ slightly from a regular Raspberry Pi.

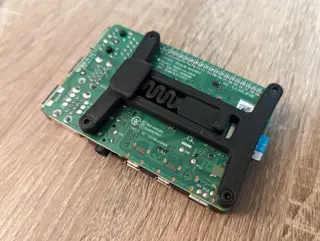

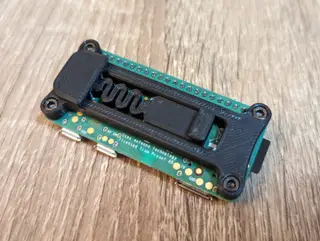

To mount the boards, you will need: - four M2.5x8 screws (or M2.5x4 when using threaded standoffs) - four M2.5 nuts - four standoffs or spacers with at least 2mm in height (or 1mm for the Pi Zero)

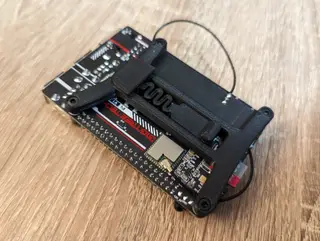

You must use standoffs or spacers to separate the bracket and the board. Otherwise you might damage the SMD components on the back side of the board when the spring is moving. The antenna of the BTT Pi 1.2 can be attached to the flat part of the bracket. If you route the antenna wire between the BTT Pi and the bracket (like what I have in the picture) be sure that the wire is not pinched or stressed.
Descripción original del autor, publicada en Printables.
