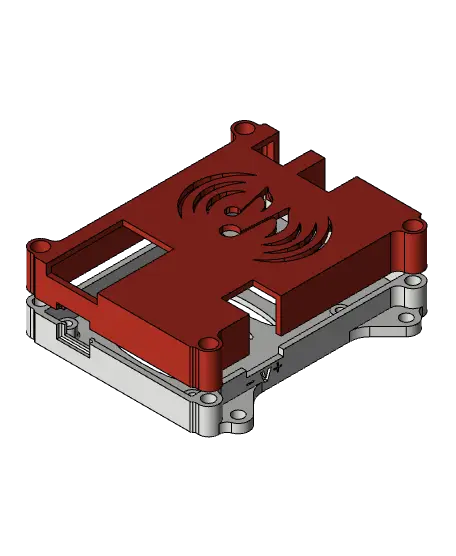

Louder ESP32 s3 Ethernet Case
por Davis Prints 3D en Thangs
This is a remix of Louder ESP32 s3 Player/Amplifier Case (https://www.printables.com/model/1058552-louder-esp32-s3-playeramplifier-case)
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalSin licencia indicada
El autor no indicó una licencia: todos los derechos le pertenecen. Úsalo solo para imprimir en casa y consulta al autor para cualquier otro uso.
Al descargar aceptas respetar la licencia y dar crédito a Davis Prints 3D.
Archivos (4)

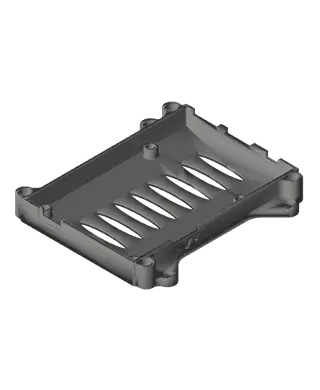

- Bottom.3mf 3MF · 73 KB

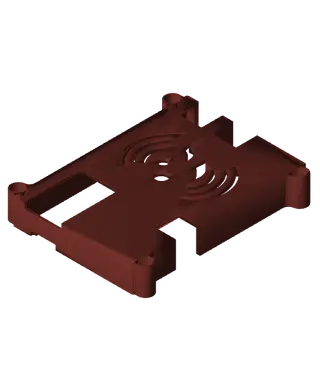

- Top.3mf 3MF · 158 KB
- Louder ESP32 S3 Case v5.step STEP · 995 KB
- Louder ESP32 S3 Ethernet Case v5.f3d F3D
- Categoría
- Para tu impresora
- Formatos
- 3MF, STEP, F3D
- Descargas
- 11
- Publicado
Sobre este modelo
This is a remix of Louder ESP32 s3 Player/Amplifier Case (https://www.printables.com/model/1058552-louder-esp32-s3-playeramplifier-case)
You may need to extend the ethernet port hole further down. I soldered in my ethernet module after-sale so it might be higher than if you got yours pre-soldered.
Original Description: As the Louder ESP32 module has the same size as a Raspberry PI I remixed my Pi 4 case.
The board can be screwed down with 2.9mm screws or M3 bolts and the top of the case can be fastened with “M3 X D5.0 X L4.0 heat set inserts” and M3 bolts.
I included the f3d and step files for convenience.
Board: https://sonocotta.com/louder-esp32/
Descripción original del autor, publicada en Thangs.
