Logitech Streamcam Mount with Joint (Remix)

Model originally uploaded to Thingiverse at https://www.thingiverse.com/thing:6277282.

Streamcam webcam mount with joint to fit on a 3/8" boom or microphone mount

Remix of the Logitech Streamcam Tripod Mount with Joint (https://www.printables.com/model/96748-logitech-streamcam-tripod-mount-with-joint) by Neoz3d

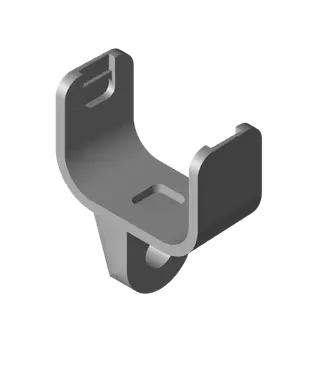

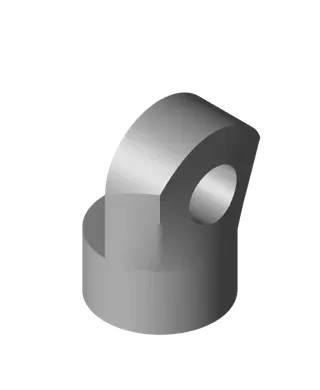

Rebuilt from scratch in Autodesk Fusion 360 based on Neoz3d's design. - Model is fully 3D printed. Replaced the need for an M3 nut and bolt with a printed thread and nuts suitable for manually adjustment of the joint. - The camera grip is tapered to fit the Streamcam body better, similar to the OEM grips. - The base of the joint has a female 3/8" 16 UNC threaded connector suitable for many microphone and boom mounts.

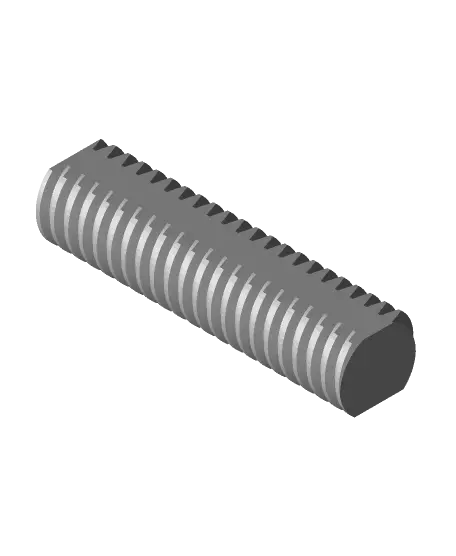

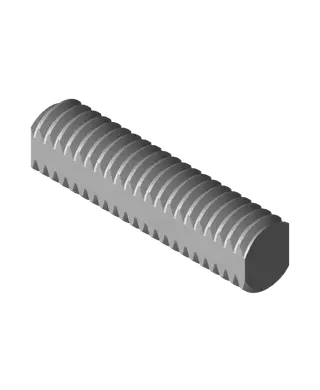

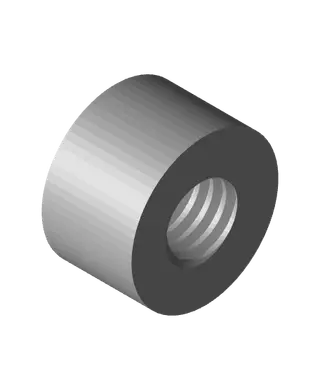

Recommended print settings I recommend printing the parts separately. All parts can be printed without supports. - Camera grip - print with 0.2mm layer height and 3 perimeters. - Joint - print with a 0.12mm layer height, or adaptive layers for the threaded base. Orient with the threaded hole at the bottom. - End nuts - print 2 of them, with a 0.12mm layer height, or adaptive layers. Use the fuzzy skin option for the outside perimeters for better grip. Orient with the threaded hole at the top. - Bolt thread - print with 0.2mm layer height. If the thread is too tight try reprinting with the printers flow rate reduced by 10%.
