Locking ball and socket arm
por Alex Rich en Thingiverse
Want to support me? Interested in the PCB holder shown in the picture and want to support me? Check out Stickvise, my low profile soldering vise: - Information: http://www.stickvise.com - Buy it on Amazon: http://amzn.to/2dgmQCE Summary Ball and socket system, upgraded with a quarter turn twist...
Licencia
Uso comercial permitidoCC BY-SA 4.0 — Atribución, compartir igual
Puedes usarlo y modificarlo dando crédito; las versiones modificadas deben compartirse con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Alex Rich.
Archivos (8)
- ball_and_socket_v5_-_main_body.STL STL · 446 KB
- ball_and_socket_v5_-_alligator_clip_holder.STL STL · 320 KB

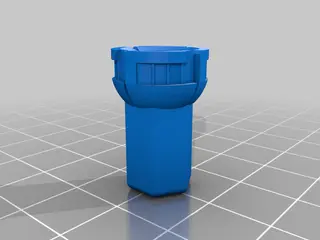

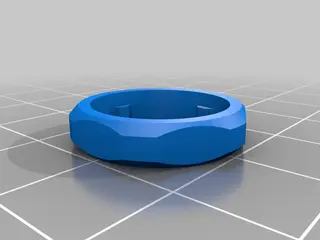

- ball_and_socket_v5_-_twist_lock.STL STL · 71 KB
- ball_and_socket_joint_-_simple.sldprt SLDPRT · 341 KB
- ball_stud_12.5mm_dia.STL STL · 374 KB
- ball_and_socket_joint.x_t X_T · 176 KB
- ball_and_socket_joint.STEP STEP · 394 KB

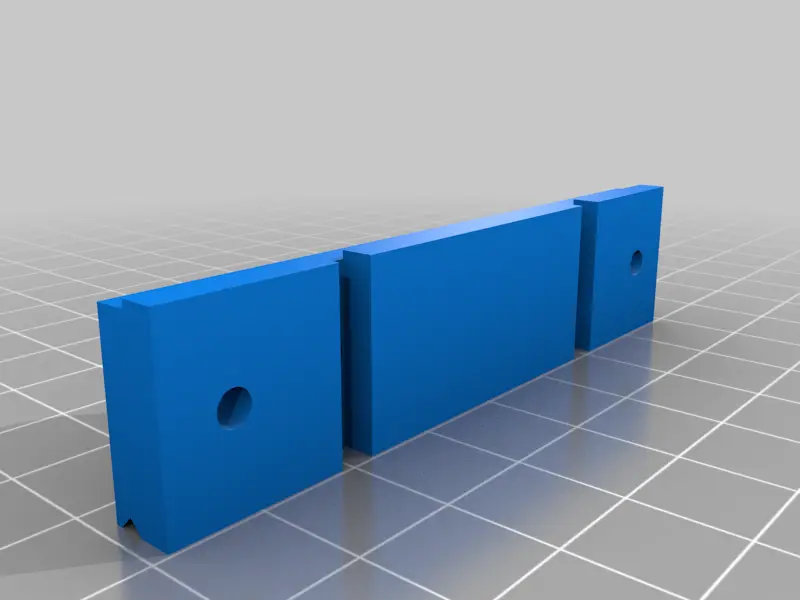

- Stickvise_BallandSocketv5_Jaw.STL STL · 308 KB
- Categoría
- Herramientas
- Formatos
- STL, SLDPRT, X_T, STEP
- Descargas
- 27,412
- Publicado
Sobre este modelo

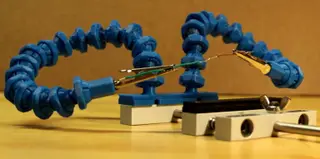

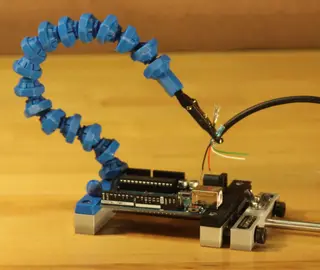

Want to support me? Interested in the PCB holder shown in the picture and want to support me? Check out Stickvise, my low profile soldering vise: - Information: http://www.stickvise.com - Buy it on Amazon: http://amzn.to/2dgmQCE
Summary Ball and socket system, upgraded with a quarter turn twist lock on each ball joint to greatly increase pullout strength. My idea is to create a ball and socket system that is not only 3d printable but extremly strong and will not pop apart easily. This would be suitable for things like an LED lamp arm or heavy duty alligator clip where you don't want the neck popping apart. My original project was posted on hackaday: https://hackaday.io/project/5739-locking-ball-and-socket-gooseneck-system Update 5/17/15 New STL files posted on 5/17/15 - should work much better on printers with larger layer height / lower resolution
Descripción original del autor, publicada en Thingiverse.
