Lock Pick 9 in 1 Multitool
por EON en Printables
9 tools in 1 compact profile lock pick tools Choose 9 attachments to print and assemble this multitool.
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a EON.
Archivos (21)
- Upper_2mm.stl STL · 51 KB
- Lower_Low_Tolerance.stl STL · 749 KB
- Lower_2mm_Tight_Tolerance.stl STL · 934 KB
- Nut_Low_Tolerance (print 2).stl STL · 1,1 MB
- Nut_Tight_Tolerance (print 2).stl STL · 1,1 MB
- Spacer_1mm (print 9).stl STL · 40 KB
- ShortHook_1mm.stl STL · 46 KB
- ShortHook_0.7mm.stl STL · 68 KB
- MediumHook_1.0mm.stl STL · 39 KB
- Shim_0.2mm.stl STL · 63 KB
- Rake_0.7mm.stl STL · 80 KB
- Rake2_0.7mm.stl STL · 77 KB
- Comb1_1.0mm.stl STL · 44 KB
- Comb2_1.0mm.stl STL · 44 KB
- Comb3_1.0mm.stl STL · 44 KB
- Comb4_1.0mm.stl STL · 45 KB
- WaferJiggler1_1.0mm.stl STL · 108 KB
- WaferJiggler2_1.0mm.stl STL · 69 KB
- WaferJiggler3_1.0mm.stl STL · 25 KB
- WaferJiggler4_1.0mm.stl STL · 31 KB
- WaferJiggler5_1.0mm.stl STL · 30 KB
- Categoría
- Herramientas
- Formatos
- STL
- Descargas
- 5,959
- Publicado
Sobre este modelo

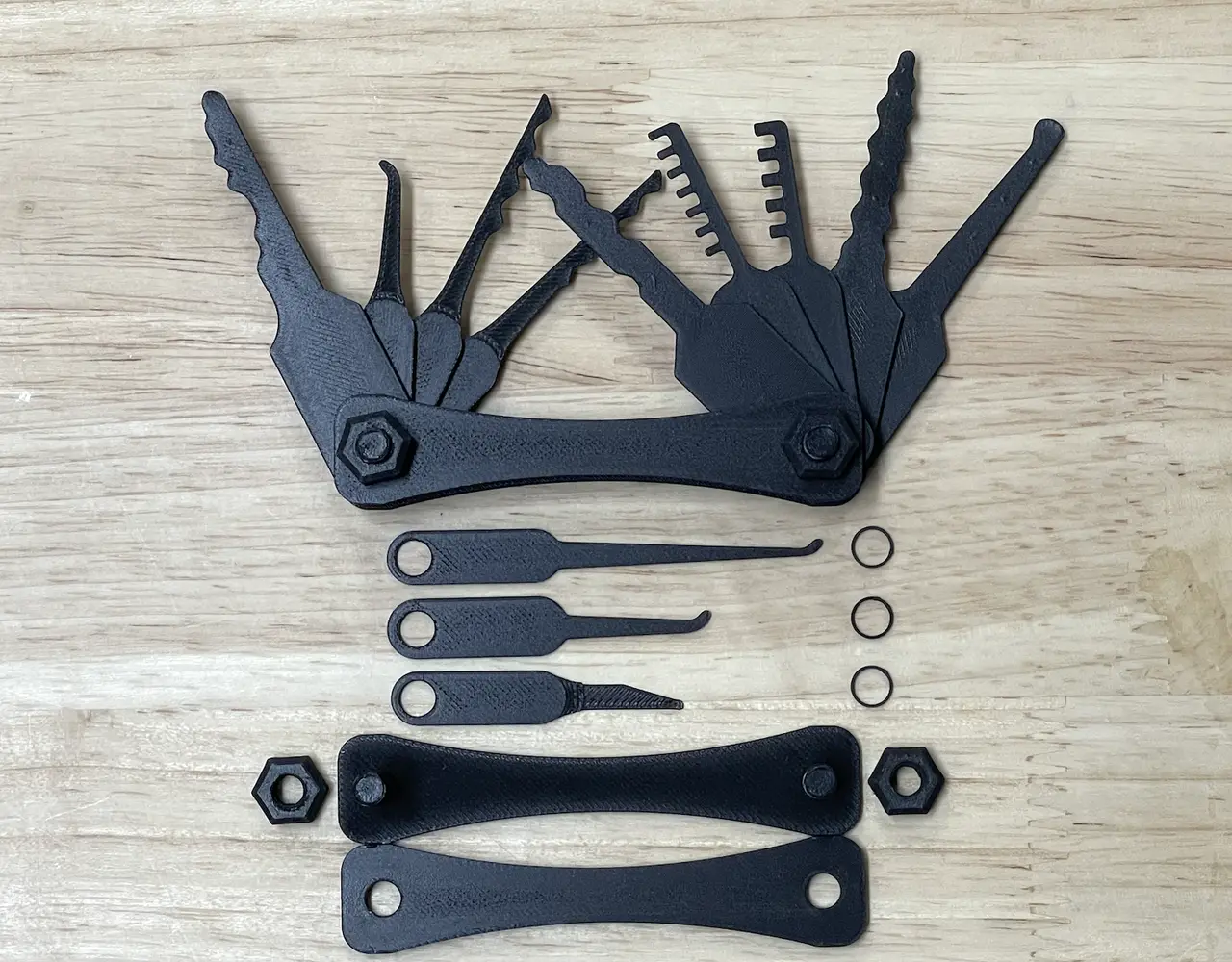

Choose 9 attachments to print and assemble this multitool. Print Lower, Upper, 2 Nuts, and 9 spacers. The nut is hard to screw on with hand, use a tool if possible.
- Print threaded parts in high-quality settings. (i used 0.16mm layer height) - Print with part solid. About 5 walls or do 100% infill - The spacer is small, ARACHNE wall generator worked for this part - Use stiffer materials such as PLA, PLA-CF. - ABS or PETG are more flexible, which is bad for printed lock picks.

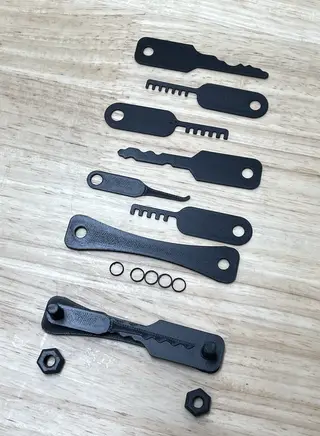

Assembly Instruction: - Place a 1mm thick tool on one end of the first rod - Place a spacer (1mm thick too) on the end of the second rod - Repeat until 9 tools and 9 spacers are used up - Place Upper part on and screw nut if needed (The lid can be press fitted without nut)
Slim 6 in 1 lock pick: https://www.printables.com/model/1138102-lock-picks-slim-6-in-1 Check out OTF Pick, Lock Pick Tensioners, Rake, and Notch Decoder too: https://www.printables.com/model/1112320-otf-lock-pick https://www.printables.com/model/1103439-lock-pick-tensioner https://www.printables.com/model/1110171-rake-lock-pick https://www.printables.com/model/1105728-lock-notch-decoder
