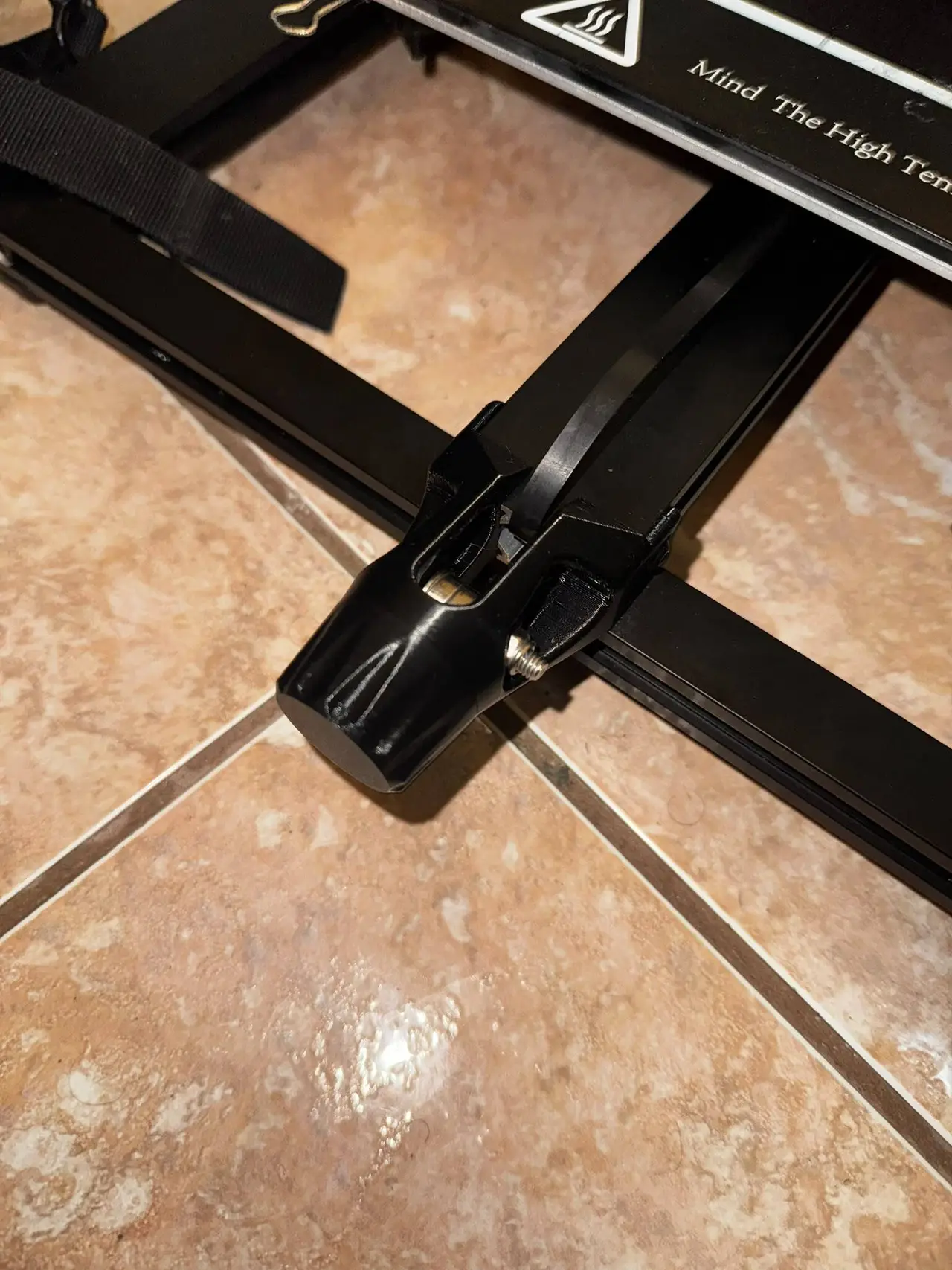

LK1 compatible Y axis belt tensioner — modelo 3D

LK1 compatible Y axis belt tensioner

por Nelo Guitarra en Thingiverse

I saw the original version of this thing made for the LK5 and saw that no one has published a version of this tensioner for the LK1, so I decided to make a remix of this tensioner. no additional hardware is needed. feel free to use the original nut and idler. maybe use a shorter M5 screw for the...

Descargar gratis Ver en Thingiverse

Todos los archivos (3) en un ZIP

Licencia

Uso comercial permitido

CC BY-SA 4.0 — Atribución, compartir igual

Puedes usarlo y modificarlo dando crédito; las versiones modificadas deben compartirse con la misma licencia.

Al descargar aceptas respetar la licencia y dar crédito a Nelo Guitarra.

Archivos (3)
Categoría
Para tu impresora
Formatos
STL
Descargas
12
Publicado

Sobre este modelo

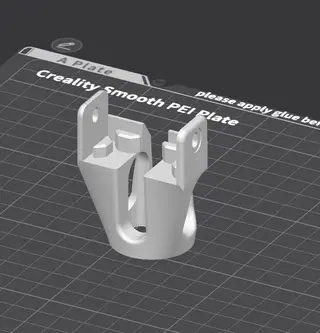

I saw the original version of this thing made for the LK5 and saw that no one has published a version of this tensioner for the LK1, so I decided to make a remix of this tensioner. no additional hardware is needed. feel free to use the original nut and idler. maybe use a shorter M5 screw for the "screw" part of the tensioner itself. If this needs further improvement, please let me know as this is my first time ever posting on thingiverse. God bless you all :D Printed in Overture Professional PLA Could be printed in ABS or PETG for durability Orientation: as shown in the second photo, flat side to the bed for the cleanest result Recommended settings: 0.2mm layer height 4 walls Alternate extra Wall turned on if it is available for your slicer for higher strength due to the infill directly meshing with the inner walls. 5 top layers 5 bottom layers gyroid infill at 20% density Supports: Yes for reference: https://www.thingiverse.com/thing:2869114 Also, this x axis tensioner made for the LK4 just so happens to fit the LK1 pretty well: https://www.printables.com/model/175635-longer-lk4-x-belt-tensioner

Descripción original del autor, publicada en Thingiverse.
