Lithophane IKEA tea light shades

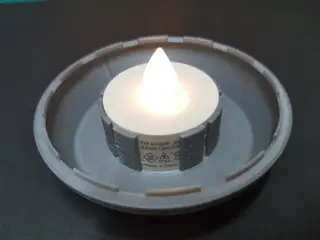

Modular Lampshade for IKEA GODAFTON LED tealight https://www.ikea.com/us/en/catalog/products/00355576/ The LED candle gives a cozy flickering light like a real candle. Convenient and easy to use, since the built-in timer automatically turns on the light at the same time every day and then makes it shine for 6 hours.

Shade tube: The tube should have an inner diameter of 76mm and a top and bottom thickness of 3mm.

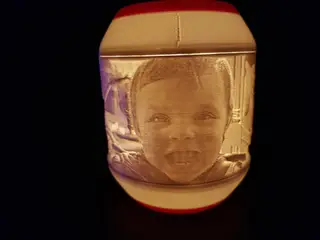

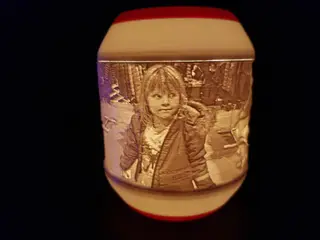

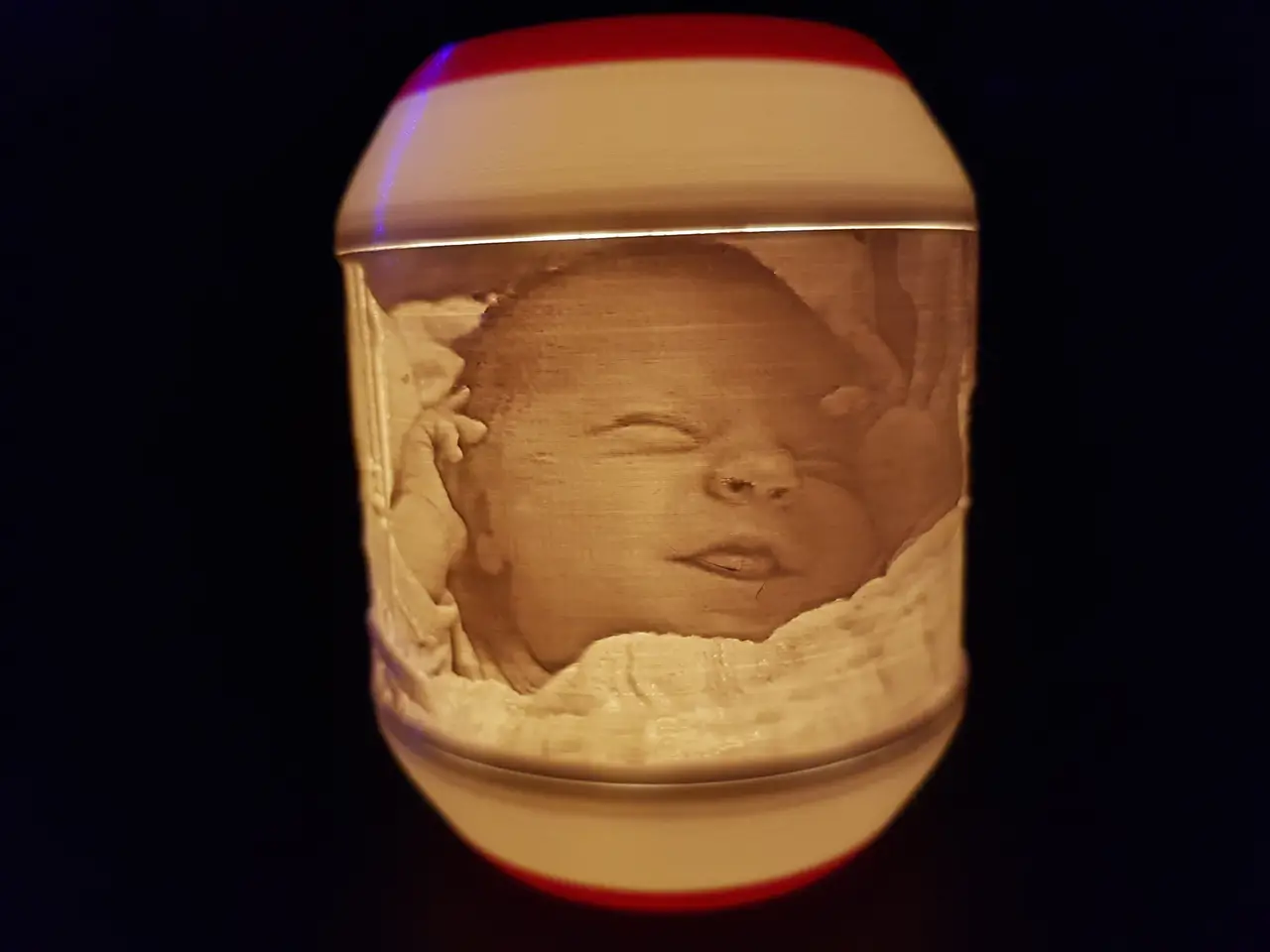

Customizable Lithophane Shades: Using http://3dp.rocks/lithophane/ to generate the lithophane stl. Mode: Outer Curve

Image settings: positive mode (This makes pitch black thick (3mm) and pure white thin (.4mm)) .. rest is default

Model settings: Maximum Size: 240 Thickness: 3 Border: 0 Thinnest Layer: 0.4 Vectors Per Pixel: 4 Base/Stand Depth: 0 Curve: 360

The image height:width ratio I use is 4.3:1 but guess you can change that if you want a higher tube. Use a gradient to black in the image to make the transition to base and coupling nice.

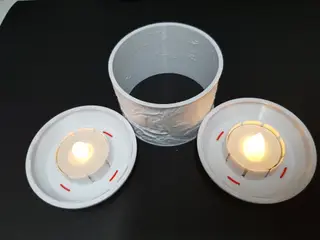

To connect multiple cylinders glue in a coupling.
