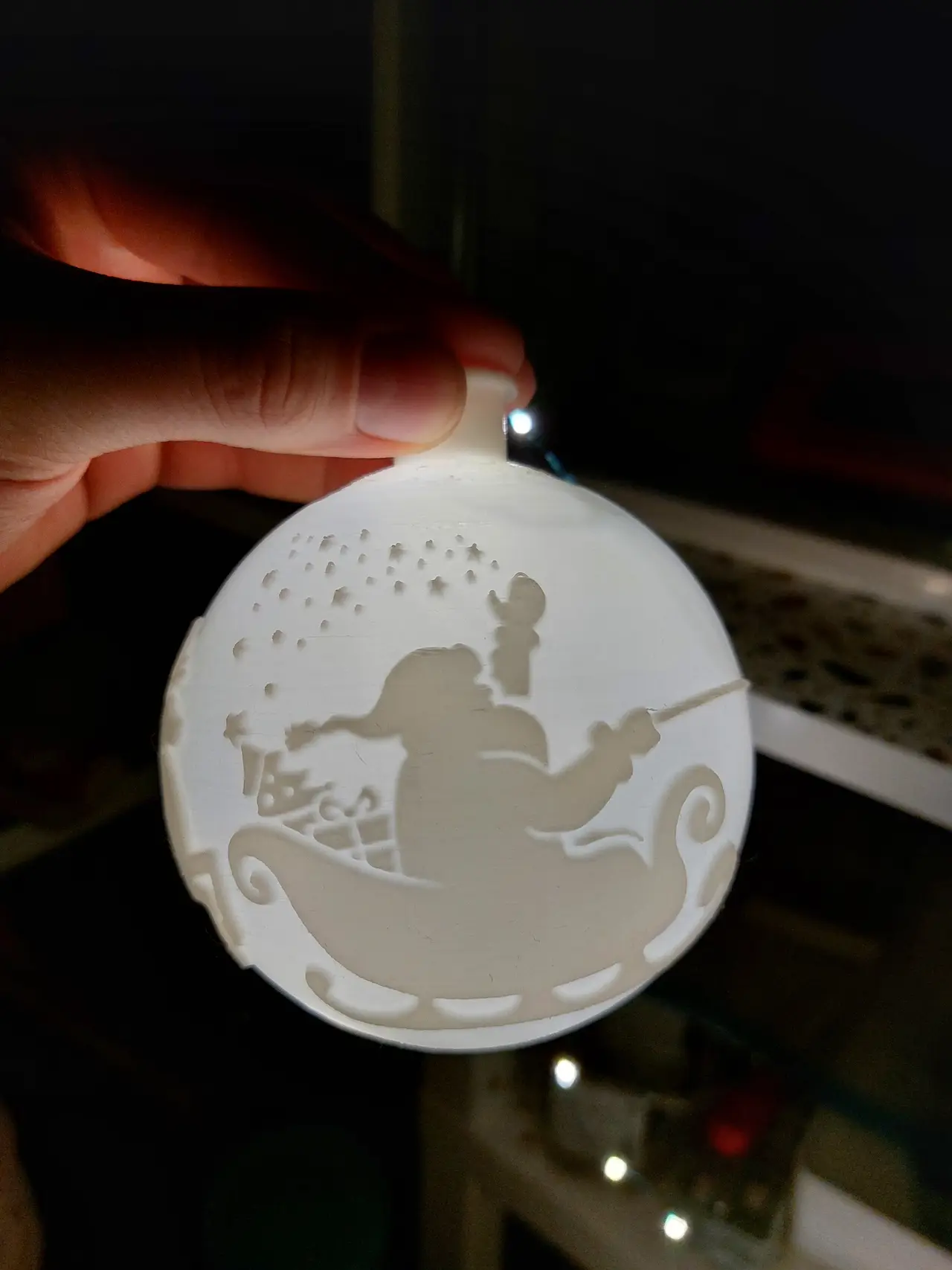

Lithophane Christmas Ball

Lithophane Christmas ball made from the Lithophanemaker.com sphere tool .https://lithophanemaker.com/Lithophane%20Sphere.html Just upload a picture which you prefer and insert the settings :

*Flip image *Fit image to Sphere or use “crop image” depending on what image you're using - Lithophane Resolution : 0.20 - Sphere Diameter : 100mm - Maximum thickness : 2.4mm - Minimum Thickness: 0.6mm - Cylinder outer diameter : 20mm - Cylinder height : 15mm - Cylinder thickness : 2.4mm - Cylinder ledge outer diameter : 25mm - Top hole outer diameter : 0

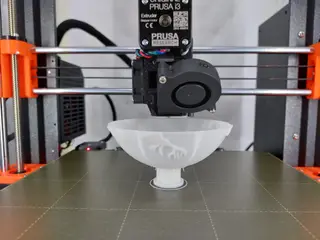

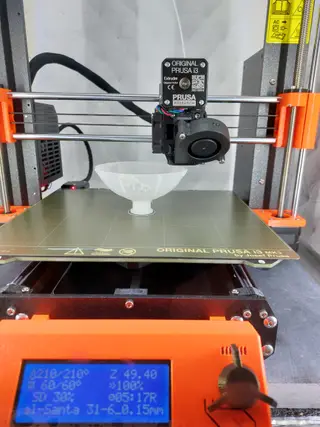

Print upside down . Print settings i used :

I used white Esun PLA+ - 0.4mm nozzle - 0.15mm layer height ( 0.15 Quality) - Stock prusaslicer settings - 100% infill - No support ,you do get some slight strings on top of the ball which are visable .So you could use some support there but it is not necessary. -Speed : its imported to not print this too fast (around 40mm/s ) - 7.5hour print time and aprox 40grams of filament is used
