Lighthouse Lantern - Lithophane LED Tea Light Lamp with Stone Block Tower, Wave Base and Gallery Roof
A lighthouse that becomes a lamp at night. The tower is a thin lithophane shell: the stone-block wall and the wave band at the base are modelled into the wall thickness, so with an LED tea light inside the mortar joints glow brighter than the blocks and the whole tower lights up like a real light...
Cults3D entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalLicencia de uso privado de Cults3D: puedes imprimirlo para ti. No se permite compartir el archivo ni vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a diateh.
Archivos (3)
- Lighthouse_Top_Gallery_Lantern.stl STL
- Lighthouse_Tower.3mf 3MF
- README.txt TXT
- Categoría
- Hogar
- Formatos
- STL, 3MF, TXT
- Descargas
- 0
- Publicado
Sobre este modelo

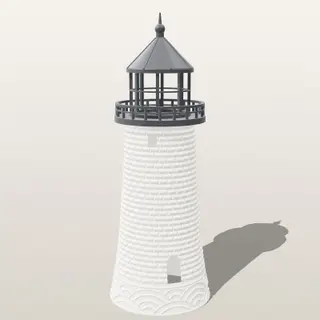

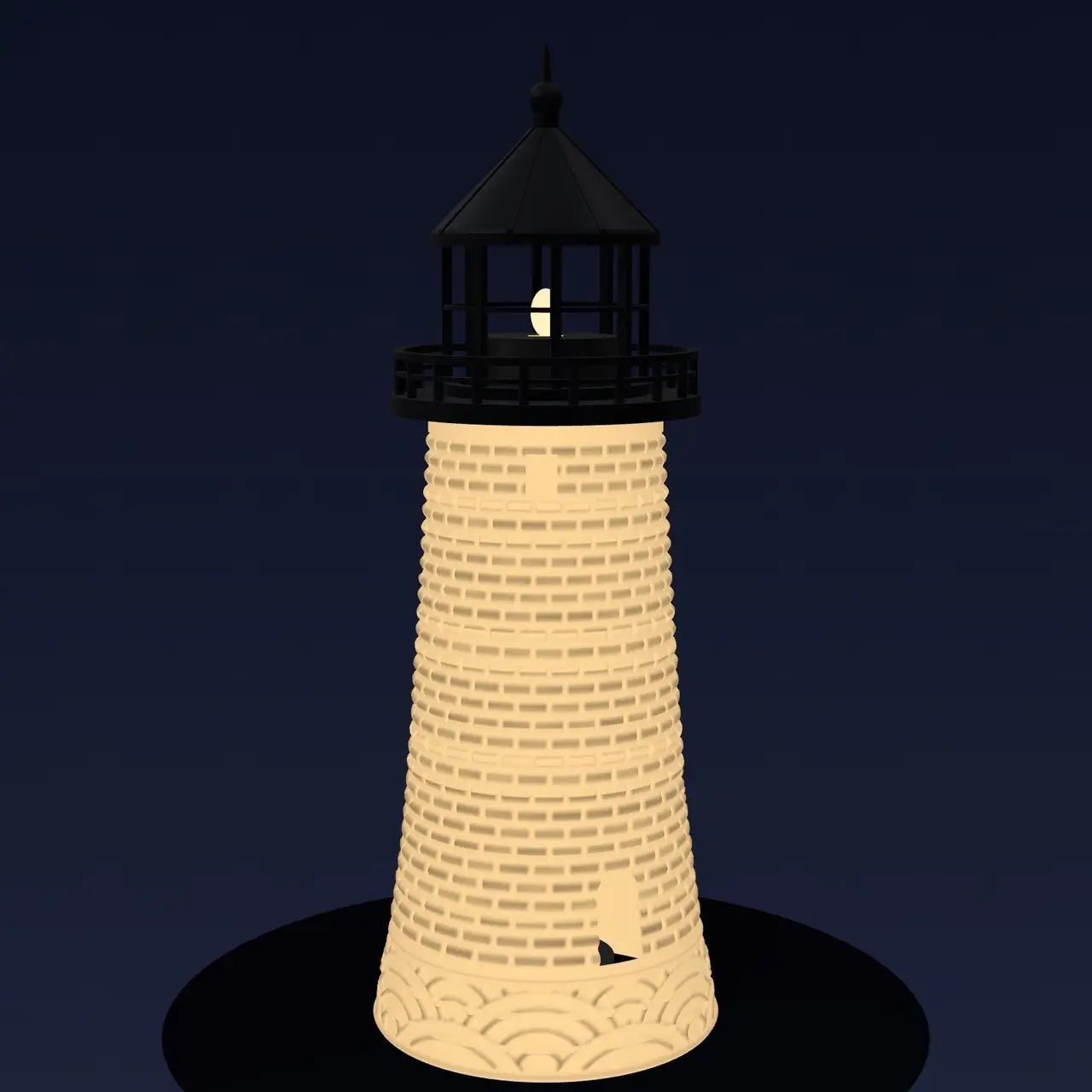

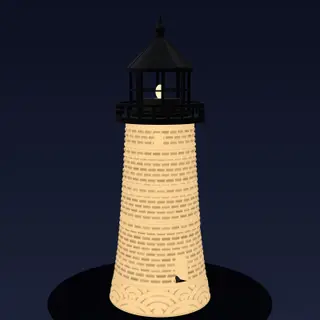

A lighthouse that becomes a lamp at night. The tower is a thin lithophane shell: the stone-block wall and the wave band at the base are modelled into the wall thickness, so with an LED tea light inside the mortar joints glow brighter than the blocks and the whole tower lights up like a real lighthouse on a dark coast. A door and four small windows let sharp beams of light out.

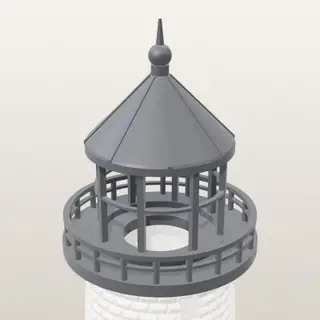

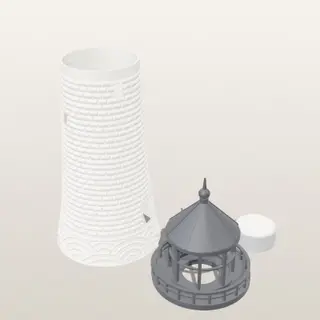

The top piece is a separate print in a dark filament: gallery platform with railing, the lantern room with eight mullions and a conical roof with ribs and a ball finial. It simply sits on the tower - a locating groove under the platform keeps it centred. A second LED tea light fits inside the lantern room.
WHAT YOU GET
- Lighthouse_Tower.3mf - tower (lithophane shell, high resolution mesh)
- Lighthouse_Top_Gallery_Lantern.stl - gallery, lantern room and roof
- README with print settings
SIZE
Assembled 262 mm tall, 96 mm base diameter. Tower 170 mm, top 95 mm. Scale it down to 60-70 % for a smaller lamp if you like.
PRINTING
Tower: 0.4 mm nozzle, 0.12-0.16 mm layers, 2 perimeters, 0 % infill, no supports. Not vase mode (because of door and windows). White, natural or light grey PLA/PETG give the best glow. About 45 g.
Top: 0.2 mm layers, 15 % infill, no supports. Dark grey, black or copper looks great. About 70 g.
LIGHT
Place an LED tea light or a small LED puck on the table and set the tower over it - there is a cable notch at the back for USB pucks. LED light only, never a real candle.
Generated with the DIATEH GEN parametric engine.
Descripción original del autor, publicada en Cults3D.
