Lift / elevator for IKEA / Brio wooden train.
This is a lift / elevator system for IKEA/Brio wooden trains or cars. The train or car is driven onto the platform and
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalSin licencia indicada
El autor no indicó una licencia: todos los derechos le pertenecen. Úsalo solo para imprimir en casa y consulta al autor para cualquier otro uso.
Al descargar aceptas respetar la licencia y dar crédito a Turbo T.
Archivos (29)
- Gear 22mm x4.stl STL · 93 KB
- Gear 74mm x3.stl STL · 268 KB
- Gear box baseplate.stl STL · 556 KB
- Gear box cover plate only option 2.stl STL · 263 KB
- Gear box cover uprights x4 for option 2.stl STL · 2 KB
- H-Rotary wheel.stl STL · 238 KB

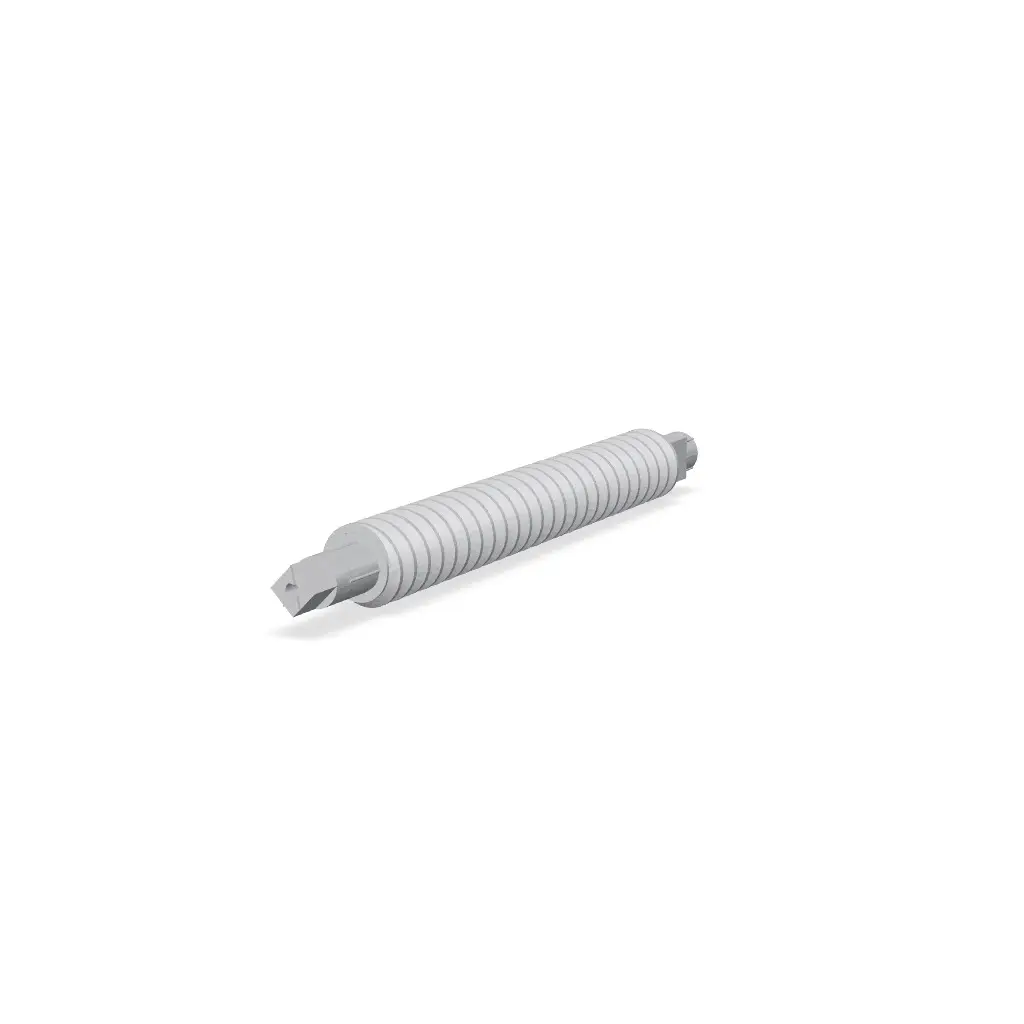

- Lead screws 100mm with rotary wheel holder x1.stl STL · 610 KB
- Lead screws 100mm x3.stl STL · 558 KB
- Lift platform.stl STL · 260 KB
- Lower level ramp.stl STL · 125 KB
- Top cover.stl STL · 236 KB
- Upper level ramp part 1.stl STL · 129 KB
- Upper level ramp part 2.stl STL · 127 KB
- Upper level ramp support angled half-height.stl STL · 259 KB
- Upper level ramp support full height.stl STL · 125 KB
- Upper level ramp support straight half-height.stl STL · 96 KB
- V1-Assembly hole plug.stl STL · 38 KB
- V1-Gear holder.stl STL · 117 KB
- V1-Gear x2.stl STL · 224 KB
- V1-Rotary wheel shaft.stl STL · 48 KB
- V1-Rotary wheel.stl STL · 343 KB
- V2-Bearing cover.stl STL · 61 KB
- V2-Gear holder.stl STL · 171 KB
- V2-Gear large.stl STL · 486 KB
- V2-Gear small.stl STL · 283 KB
- V2-Rotary wheel shaft.stl STL · 66 KB
- V2-Rotary wheel.stl STL · 204 KB
- Description elevator.pdf PDF
- Photos.pdf PDF
- Categoría
- Educación
- Formatos
- STL, PDF
- Descargas
- 0
- Publicado
Sobre este modelo

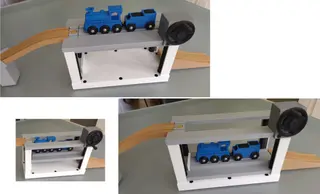

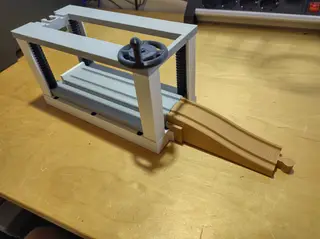

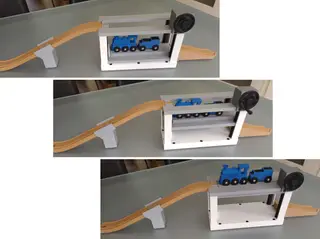

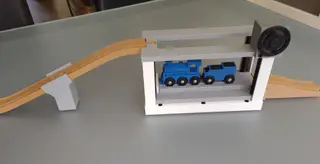

This is a lift / elevator system for IKEA/Brio wooden trains or cars. The train or car is driven onto the platform and can then be raised or lowered by approximately 10 cm. The entire system operates using gears and lead screws and is driven by a handwheel. See description.pdf and photos.pdf for instructions, comments, and explanations.
