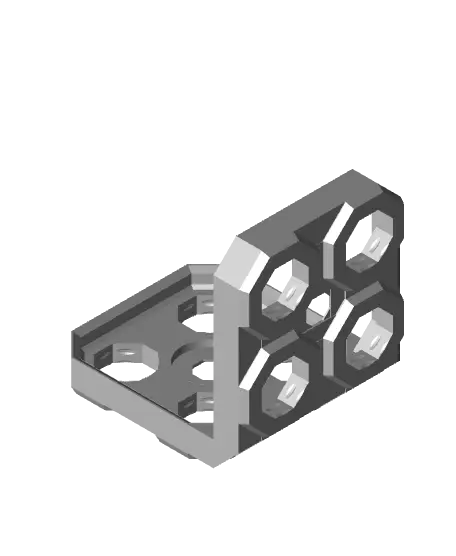

Legacy Bin Shelf
por Jonathan K en Thangs

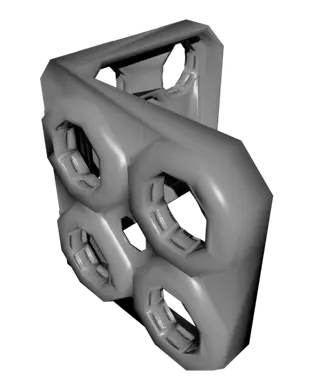

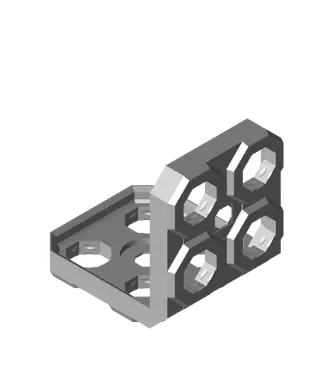

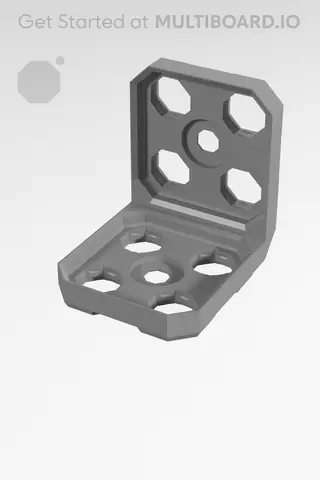

Bin shelves are used to attach Mutigrid Bins to vertical tiles.
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Revisa las condicionesMULTIBOARD LICENCE - Download Terms and Conditions - 12-June-2024
El autor usa su propia licencia. Revisa sus condiciones en la página original antes de compartir, modificar o vender.
Al descargar aceptas respetar la licencia y dar crédito a Jonathan K.
Archivos (1)
- Bin Shelf.stl STL · 2,2 MB
- Categoría
- Herramientas
- Formatos
- STL
- Descargas
- 3,407
- Publicado
Sobre este modelo
Bin shelves are used to attach Mutigrid Bins to vertical tiles.
Connect the Bin Shelf to the Tile with a “Bin To Tile, T-Bolt” or “Bin To Tile, T Click Lock”.
Connect the Bin to the Bin Shelf using a “Bin To Plate, Multigrid T Click Lock” or an “8.25 mm Screw-In Fastener“.
Learn more about this part at https://multiboard.io/knowledge-hub
Printing Guidelines:
The printing orientation is as provided in the file. The print has been designed to be “3 wall perimeters” in wall thickness. Printed at a layout height of 0.2 mm. It doesn't need printing supports. Use the default 15% infill. This part has been designed with a tolerance of 0.25 mm. Your printer will need to be able to bridge gaps of up to 30 mm for some designs.
—
This object is part of Multiboard, a FREE "all in one" organization system with 700+ parts, that combines pegboard holes, honeycomb snaps, Gridfinity like bins, threads, brakes, and much more.
Explore and build the coolest, most adaptable workshop at https://multiboard.io
Descripción original del autor, publicada en Thangs.
