LED light box - Interchangeable 3D printed scenes or logos

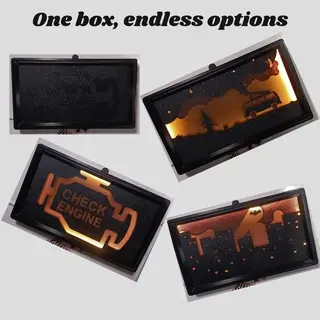

One box, endless options!

A fully 3D-printable LED lightbox with interchangeable picture inserts. Swap between different scenes, decorations or logos without printing another box. Designed for easy assembly and customisation.

The collection includes:

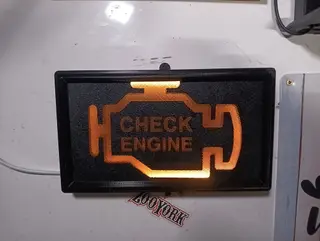

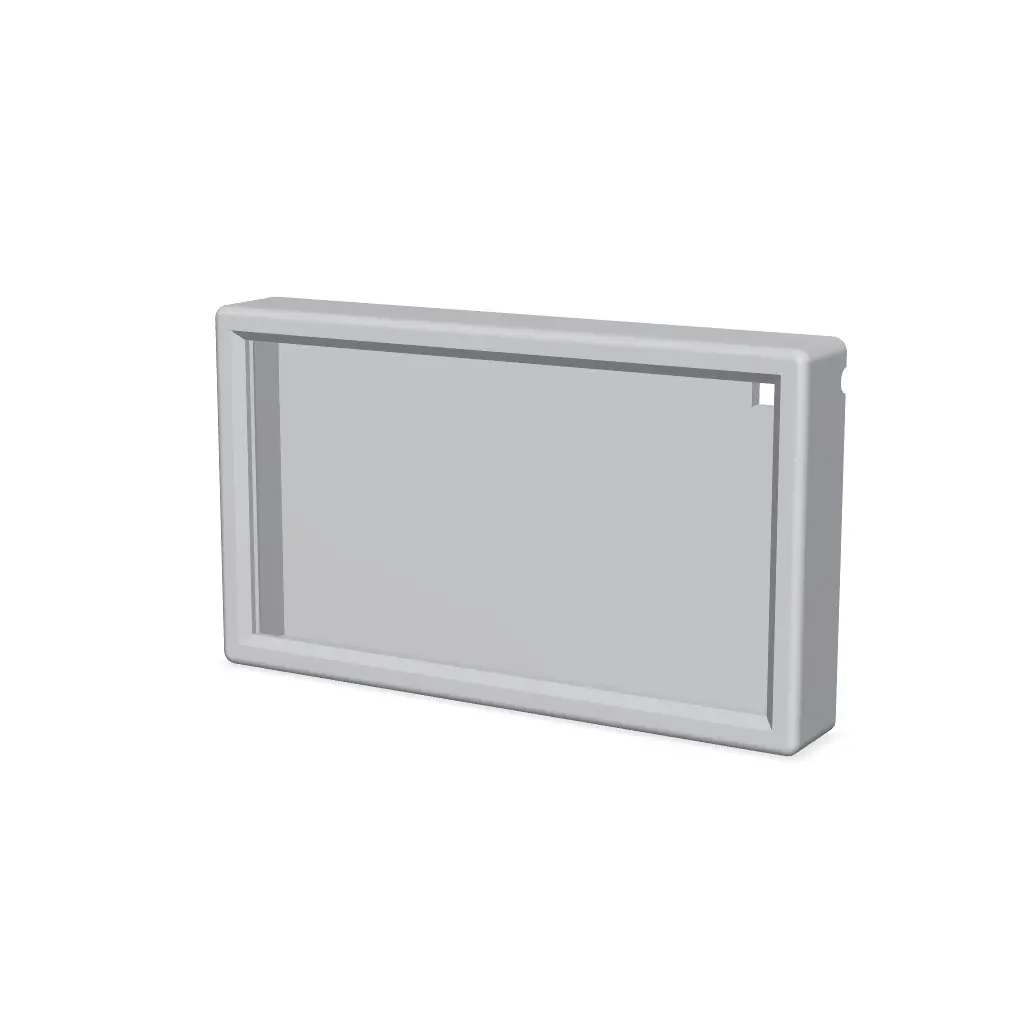

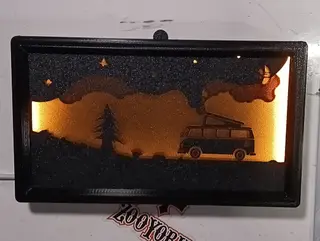

Campervan under the stars Check Engine warning light Bat-inspired city skyline VanDog brand logo A reusable lightbox housing

Features

Interchangeable picture inserts Designed for LED strip lighting 3D-printable housing and scenes Easily swap designs to suit your mood

Printing and assembly

Material: Black PETG

Box: Print flat on its back Nozzle: 0.4 mm Layer height: 0.20 mm Support: Organic(tree) (Carefully remove any support generated inside the insert slots using a blunt tool)

Inserts: Print flat on the back side First layer: 0.20 mm Layer height: 0.16 mm No support needed _Important:_ Some parts of the print can be very thin, remove from build plate with a flat tool covering the entire width of the insert (Eg. plastic ruler)

Stick an LED strip around the inner side of the walls facing towards the centre. Required length: Approximately 0.5m, with thin LED strips 1m can be used to double the LEDs. Slide in the desired insert and turn on the lights - enjoy the glow.

LEDs used by me: https://www.amazon.co.uk/dp/B0BP7SVX5T?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1

Feel free to design and share your own compatible inserts! I'd love to see what other people create using this light box. Please credit the original VanDog design. Designed by VanDog — Built to be used.
