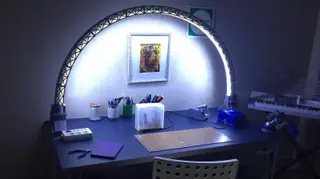

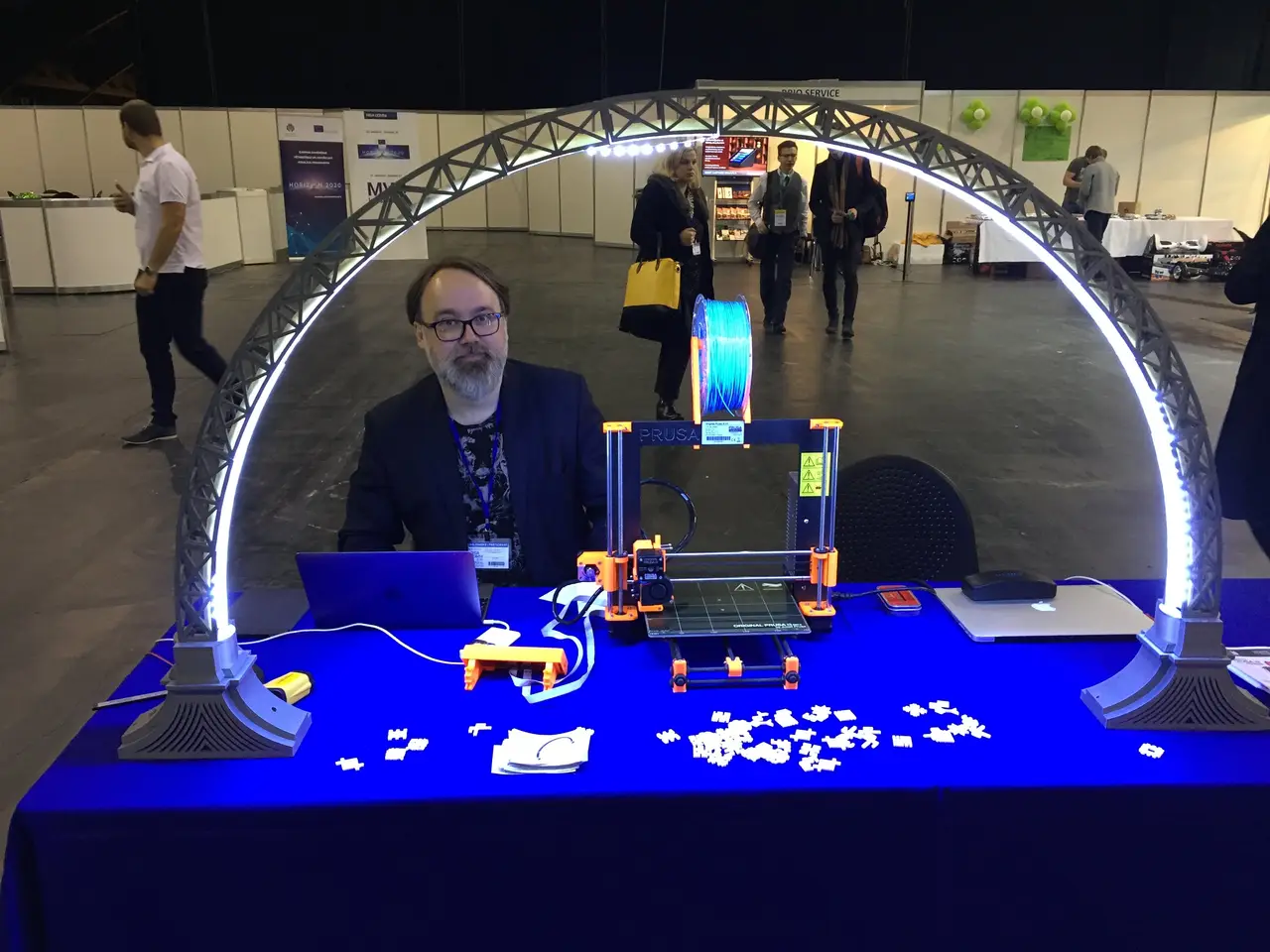

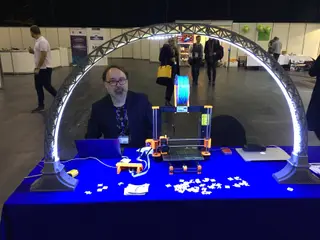

Led bridge lamp Universal Segment
por Janis Jakaitis en Thingiverse
See change log is at the bottom By popular request I have included LBLUC v38 Fusion 360.f3d Purpose of creating this new design of the Led Bridge Lamp is to solve several issues and add improvements suggested by so many lamp builders and contributors ... - Constrained workplace? Print just half of..
Licencia
Uso comercial permitidoPuedes imprimirlo, modificarlo y venderlo dando crédito al autor.
Al descargar aceptas respetar la licencia y dar crédito a Janis Jakaitis.
Archivos (25)
- Base_in_half_b.stl STL · 113 KB
- LBLUC_final_pr.pdf PDF · 186 KB
- LBLUC-general_assembly.pdf PDF · 135 KB
- LBLUC-top_assembly.pdf PDF · 87 KB

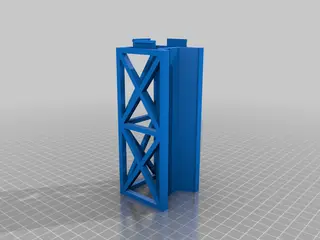

- LBLUC_segment_straight_onepiece_160916.stl STL · 31 KB
- LBLUC_segment_curved_onepiece_06022017-2.stl STL · 88 KB
- LBLUC-segment_set.stl STL · 79 KB
- LBLUC-segment_light_guides.stl STL · 32 KB
- End_cap_for_half-bridge.stl STL · 27 KB
- LBLUC_foot_base.stl STL · 484 KB
- LBLUC_foot_height_extension.stl STL · 81 KB
- LBLUC_foot_mountingPiece_papa.stl STL · 192 KB
- LBLUC_foot_mountingPiece_mama_v6.stl STL · 29 KB
- LBLUC-straight-parts.zip ZIP · 8 KB
- LBLUC-straight-combined.stl STL · 31 KB
- LBLUC-straight-flat.stl STL · 110 KB
- LBLUC-segment_asembly_helper.stl STL · 40 KB
- LED_channels.stl STL · 60 KB
- LBLUC_segment_curved_onepiece_lightguide.stl STL · 13 KB
- desk_clamp.stl STL · 50 KB
- Base_in_half_a.stl STL · 112 KB
- Base_in_half_b.stl STL · 113 KB
- foot_v1.f3d F3D · 3,2 MB
- LightPipe-wider.stl STL · 4 KB
- LBLUC_v38_Fusion_360.f3d F3D · 7,2 MB
- Categoría
- Hogar
- Formatos
- STL, PDF, ZIP, F3D
- Descargas
- 69,576
- Publicado
Sobre este modelo
See change log is at the bottom By popular request I have included LBLUC v38 Fusion 360.f3d Purpose of creating this new design of the Led Bridge Lamp is to solve several issues and add improvements suggested by so many lamp builders and contributors ... - Constrained workplace? Print just half of the arc and rotate foot by 90º. - Need wider arc? Add some middle segments! - Want to make it taller? Scale middle piece of the foot. - Now includes straight segment.
Thank you, 50 000 + viewers of the original Led Bridge Lamp!
Descripción original del autor, publicada en Thingiverse.
