LCD Digital Thermometer Holder for SKADIS Pegboard
A compact holder for a rectangular LCD digital thermometer with an external wired temperature probe. Ideal for keeping the temperature display visible on your workshop pegboard.
Cults3D entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalCC BY-NC 4.0 — Atribución, no comercial
Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a dorpgas.
Archivos (2)
- Termo.step STEP
- Termo.stl STL
- Categoría
- Hogar
- Formatos
- STEP, STL
- Descargas
- 1
- Publicado
Sobre este modelo

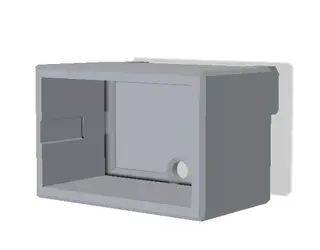

A compact holder for a rectangular LCD digital thermometer with an external wired temperature probe. Ideal for keeping the temperature display visible on your workshop pegboard.

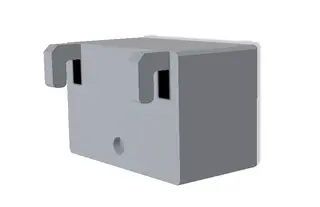

Two integrated hooks attach the holder to a SKADIS-style pegboard without screws. A cable opening allows the probe wire to pass through the holder.
Internal compartment dimensions: 45.5 × 27 × 25 mm (width × height × depth).
Hook clearance for panel thickness: 4.8 mm.
Please check the dimensions of your thermometer’s inserted body before printing. The front bezel can be larger than the internal compartment.
Tested on a 3D-printed SKADIS-style pegboard. Compatibility with the original IKEA SKADIS panel has not been tested.

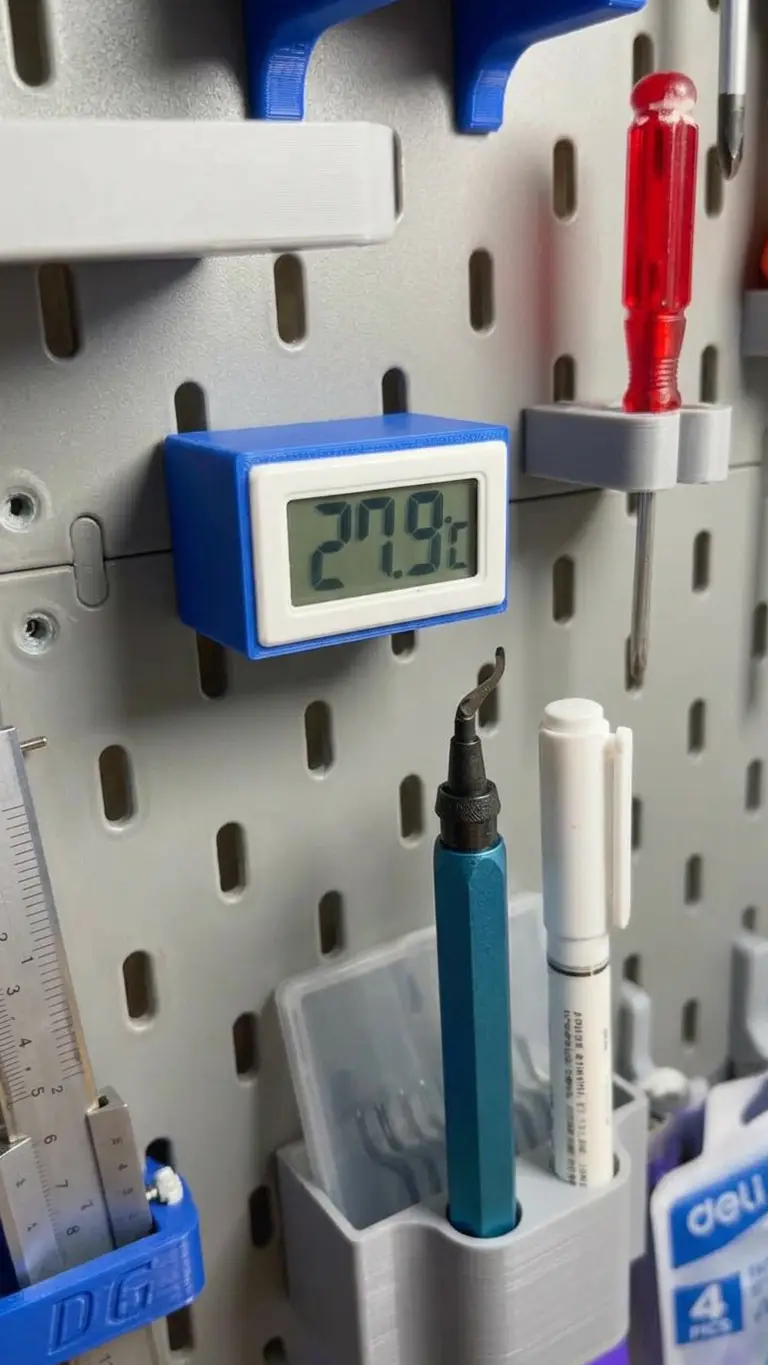

The holder shown in the photo was printed in ABS.
This download is for the holder only. The thermometer and pegboard are not included.
Descripción original del autor, publicada en Cults3D.
