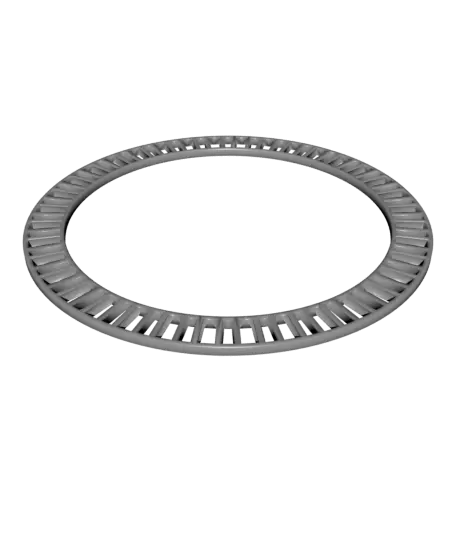

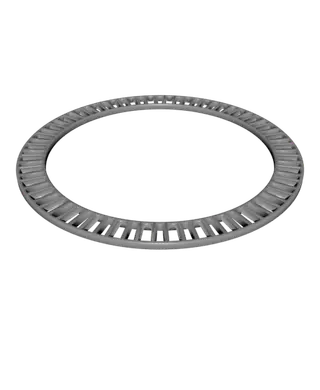

Lazy Susan Mechanism 2.0 (Conical Bearings)

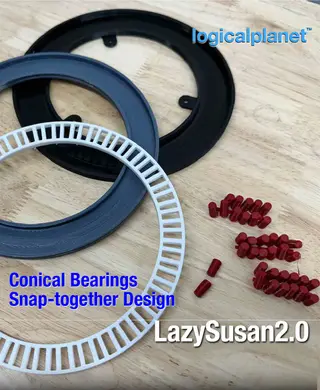

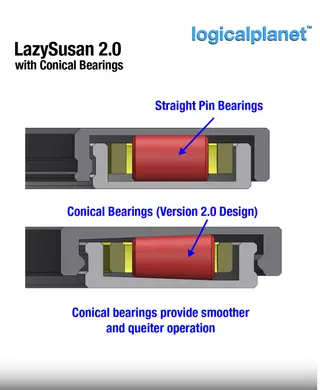

This is my second generation of Lazy Susan mechanisms which incorporate concial bearings making it smoother and quieter to operate. Attach it to a board on anything else you want to spin.

This posting includes two sizes as follows:

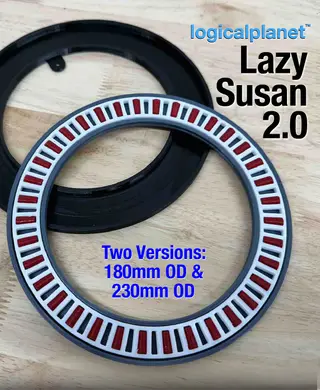

180mm outside diameter, uses 36 bearings 230mm outside diameter, uses 40 bearings

In general, you want to use the largest size you can fit on the object you are attaching it to (and that your print bed will allow). They can support a load in excess of 50kg.

100% printed - no hardware, fasteners, or adhesives required. No additional support is required. A very light film of lubricant (I prefer synthetic) applied to the inside of the assembly will help to reduce noise and allow it to spin more freely.

Print Settings:

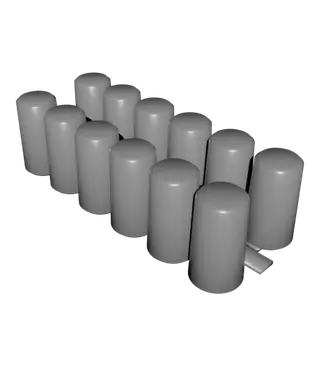

Material: PLA and ABS are best for the pin bearings. The other parts of the design can be PLA, ABS or PETG.

My Settings: Nozzle = 0.4mm Layer height = 0.2mm Line width = 0.4mm Wall count = 4 (1.6mm) Infill = 40%

Support: Designed to print without support.

Commercial Licensing is available through my logicalplanet Memberships here on Thangs. I will customize and provide commercial support to members on request.

I am committed to helping everyone get great print results to the extent I can so please contact me if you are having issues I enjoy trying to help resolve those challenges. I welcome requests, suggestions and ideas to help make this and all my products better. Please send me a message any time.

See my blog for more details and other product info… https://www.logicalplanet.com/
