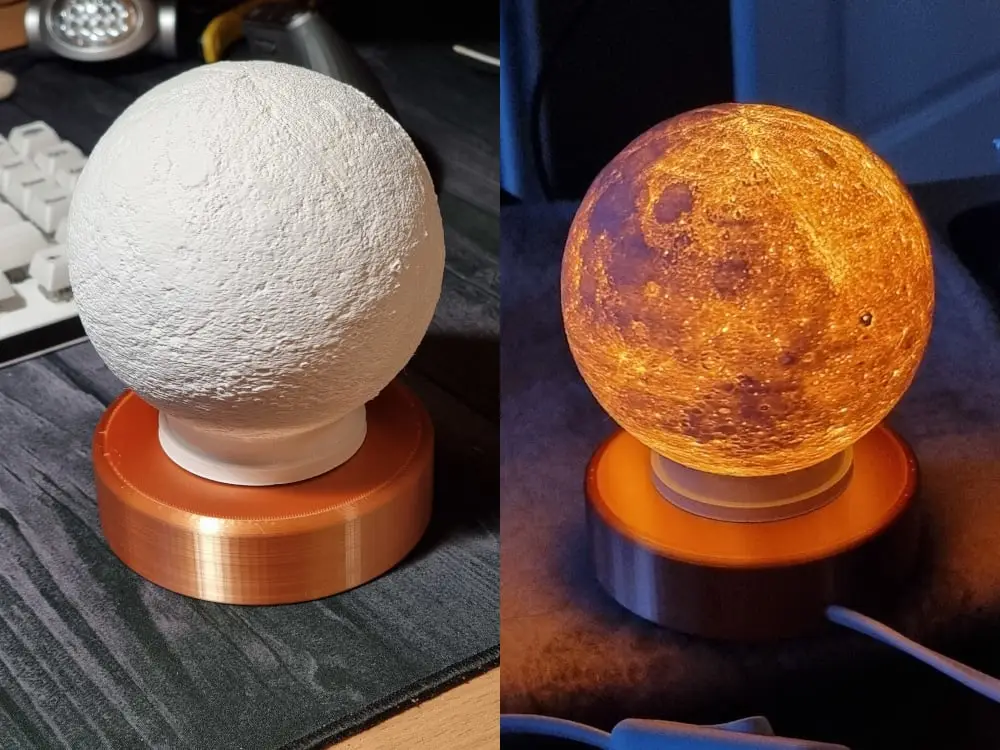

Lamp base for lithophane
por Marius Kav en Thingiverse

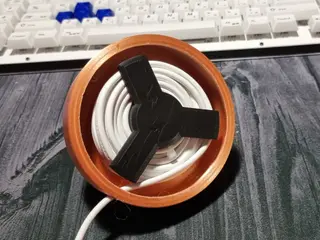

"thing in printables.com" "Thing Files" tab This is a Lamp base with ability to wind wire under it designed for small lithophane Sphere lithophane is generated with https://lithophanemaker.com/Lithophane%20Sphere.html - Upload any image image - check Moon Background - Picture Angular Height...
Licencia
Uso comercial permitidoPuedes imprimirlo, modificarlo y venderlo dando crédito al autor.
Al descargar aceptas respetar la licencia y dar crédito a Marius Kav.
Archivos (5)
- Categoría
- Hogar
- Formatos
- AMF, STL, FCSTD
- Descargas
- 4,639
- Publicado
Sobre este modelo
"thing in printables.com" "Thing Files" tab This is a Lamp base with ability to wind wire under it designed for small lithophane Sphere lithophane is generated with https://lithophanemaker.com/Lithophane%20Sphere.html - Upload any image image - check Moon Background - Picture Angular Height (degrees): 1 - Sphere Diameter (mm): 100 - Cylinder Outer Diameter: 55 - Cylinder Height: 15 - Cylinder Thickness: 5 - Cylinder Ledge Outer Diameter: 60

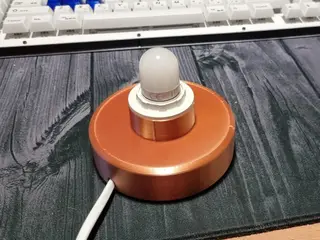

Parts: - any cable with a switch and a plug (I used locally sourced one) - socket for light bulb - looks like from here E14 with threads (need to remove end cap) - light bulb - 1.7W E14 LED lightbulb for fridges
Print with support :) How to hold light buld socket Print bottom part with supports and not remove them (squere 7mm holes) after You insert the lamp socket push those supports deeper, they should grab the socket and keep it down. Alternative would be to print those plugs separately.
Descripción original del autor, publicada en Thingiverse.
