L-menthol 3D Molecular Model — CAS 2216-51-5

L-menthol (C10H20O, CAS 2216-51-5) — a free educational 3D molecular model for teachers and students, by MolGod.org. Element symbols are cut into each atom sphere: a self-labelled teaching aid.

Look at the skeleton first: L-menthol contains one 6-membered ring, and students can trace 31 bonds (all of them single). Hand the model round and let students tally the engraved atoms: 10 C + 20 H + 1 O, 31 in total. On the printed model, students can point to the hydroxyl group (-OH). L-menthol has three stereocentres (R, S, R): a hands-on way to practise finding them and checking the CIP assignment. A good fit for lessons on chirality, enantiomers and CIP (R/S) rules, as well as on alcohols and hydrogen bonding.

MolGod.org publishes its molecular models free of charge for teachers and students. Teachers: the engraved symbols let students work with the model without a separate key.

Full record and more free models: https://molgod.org/molecule/2216-51-5/?utm_source=myminifactory&utm_medium=referral&utm_campaign=edu-3d-models Licence & provenance: https://molgod.org/licenses/stl/2216-51-5/ Same file on Wikimedia Commons: https://commons.wikimedia.org/wiki/File:L-menthol-3D-molecular-model-engraved-CAS-2216-51-5.stl

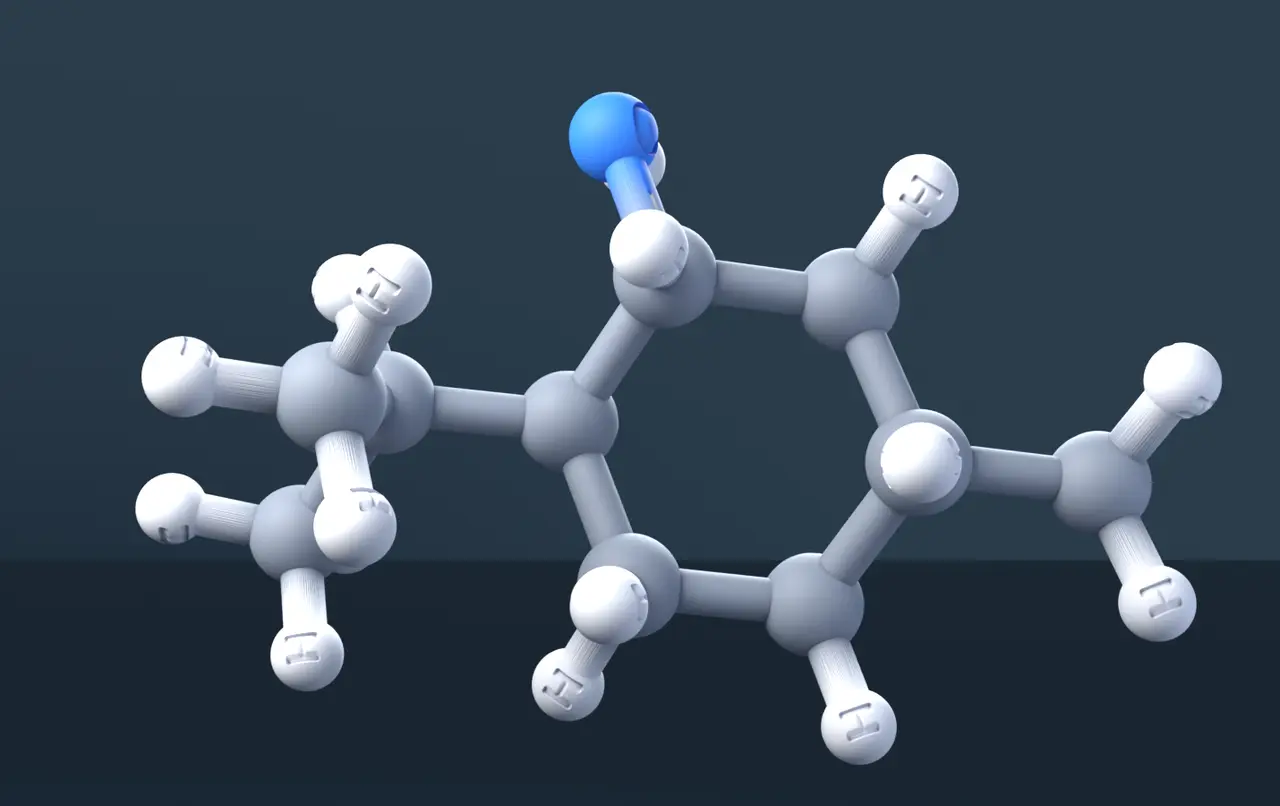

A ball-and-stick model of L-menthol with each element symbol recessed into its atom sphere, generated by MolGod.org from a PubChem-computed 3D conformer (not an experimental crystal structure); atomic coordinates and connectivity are unchanged. STL mesh: 329,522 triangles, closed (watertight) single solid. Coordinates in ångström (STL stores no unit) — scale the model deliberately in your slicer.

Names in other languages: Menthol (de); menthol (fr); mentolo (it); mentol (pl); 薄荷醇 (zh).

Chemical identity - CAS Registry Number: 2216-51-5 - Molecular formula: C10H20O - Molar mass: 156.26 g/mol (exact mass 156.151415257) - IUPAC name: (1R,2S,5R)-5-methyl-2-propan-2-ylcyclohexan-1-ol - MolGod ID: MG_954-696-860-97 (https://molgod.org/id/MG_954-696-860-97) - PubChem CID: 16666 (https://pubchem.ncbi.nlm.nih.gov/compound/16666) - Wikidata: Q407418 (https://www.wikidata.org/wiki/Q407418) - EC number: 218-690-9 - ChemSpider ID: 15803 - InChIKey: NOOLISFMXDJSKH-KXUCPTDWSA-N - SMILES: C[C@@H]1CC[C@H]([C@@H](C1)O)C(C)C

Required attribution (CC BY-SA 4.0): "L-menthol 3D model by MolGod.org — https://molgod.org/molecule/2216-51-5/ — CC BY-SA 4.0" Licence text: https://creativecommons.org/licenses/by-sa/4.0/
