L - All Sides - End Cap - Multiboard Beam
por Jonathan K en Thangs
End Caps attach to the end of Beams. They connect using Dual Clips (https://link.Multiboard.io/dual-clips).
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Revisa las condicionesMULTIBOARD LICENCE - Download Terms and Conditions - 12-June-2024
El autor usa su propia licencia. Revisa sus condiciones en la página original antes de compartir, modificar o vender.
Al descargar aceptas respetar la licencia y dar crédito a Jonathan K.
Archivos (1)
- End Cap - Multiboard Beam.stl STL · 493 KB
- Categoría
- Herramientas
- Formatos
- STL
- Descargas
- 5,644
- Publicado
Sobre este modelo

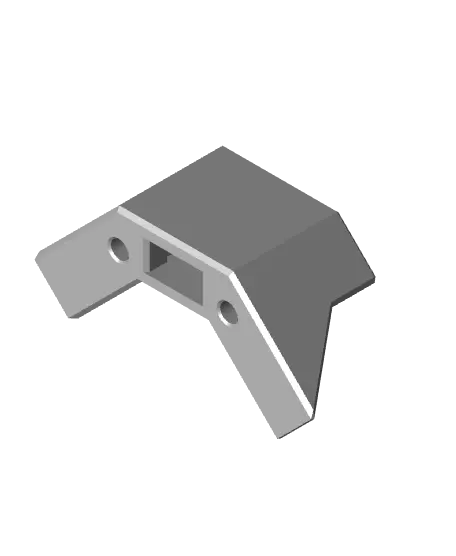

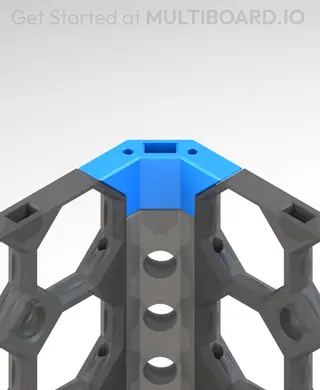

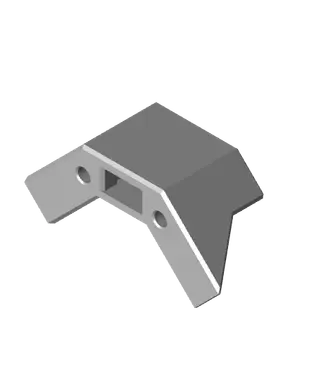

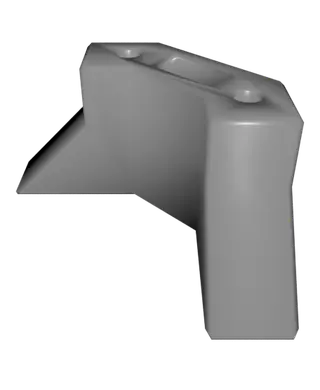

End Caps attach to the end of Beams. They connect using Dual Clips (https://link.Multiboard.io/dual-clips).
They also have holes for filament pieces to be inserted, which better holds the beams into place.
It also have holes to help you remove the Dual Clips using a small Allen key.
Printing Guidelines:
Use 3 perimeter wall thickness, 0.2 mm layer height, 15% infill, and no supports. Apart from that, use your printer's default settings.
The printing orientation is as provided in the file. Make sure the downloaded files are .STL. This part has been designed with a tolerance of 0.25 mm. Your printer will need to be able to bridge gaps of up to 30 mm for some designs.
---
This object is part of Multiboard, a FREE and ridiculously modular organization system with thousands of parts to create the most adaptable workspace possible. Learn more and find ALL the parts at https://multiboard.io
