KWS Rack v.2 - Heavy‑Duty 10‑Inch Homelab Rack
por Ilan Kushnir en MakerWorld
What is KWS Rack? - please visit the KWS Rack planner. KWS Rack is a modular, heavy‑duty homelab rack system for makers who want something that feels engineered, not flimsy.
MakerWorld entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalMakerWorld Exclusive License
Licencia exclusiva de la plataforma: uso personal, no se permite compartir el archivo ni vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a Ilan Kushnir.
Archivos (36)
- 6U-Leg.3mf 3MF · 183 KB
- magnets-insert.3mf 3MF · 38 KB
- connector-top-front.3mf 3MF · 36 KB
- connector-bottom-side.3mf 3MF · 32 KB
- base-leg.3mf 3MF · 40 KB
- connector-top-handle.3mf 3MF · 71 KB
- connector-top-flat.3mf 3MF · 44 KB
- bottom-heavy-duty-base.3mf 3MF · 136 KB
- FOR-P1S-bottom-heavy-duty-base.3mf 3MF · 132 KB
- bottom-shelf-stopper-type1.3mf 3MF · 51 KB
- bottom-shelf-stopper-type2.3mf 3MF · 42 KB
- connector-inner.3mf 3MF · 50 KB
- connector-inner-front-to-back.3mf 3MF · 72 KB
- connector-outer.3mf 3MF · 76 KB
- 3U-Leg.3mf 3MF · 180 KB
- printed-side-plate-3U.3mf 3MF · 27 KB
- acrylic-side-3U.dxf DXF · 2 KB
- acrylic-side-6U.dxf DXF · 2 KB
- acrylic-side-9U.dxf DXF · 2 KB
- acrylic-side-12U.dxf DXF · 2 KB
- acrylic-side-15U.dxf DXF · 2 KB
- acrylic-top.dxf DXF · 3 KB
- top-plate-140mm-fan.3mf 3MF · 13 KB
- top-plate-140mm-fan-grill.3mf 3MF · 31 KB
- 6U-Leg.step STEP · 818 KB
- 3U-Leg.step STEP · 481 KB
- magnets-insert.step STEP · 187 KB
- connector-inner.step STEP · 76 KB
- connector-outer.step STEP · 48 KB
- connector-side-bottom.step STEP · 90 KB
- connector-front-bottom.step STEP · 78 KB
- connector-front-top.step STEP · 110 KB
- bottom-heavy-duty-base.step STEP · 752 KB
- connector-top-flat.step STEP · 120 KB
- connector-top-handle.step STEP · 191 KB
- full-rack-assembled-9u.step STEP · 9,9 MB
- Categoría
- Tecnología
- Formatos
- 3MF, DXF, STEP
- Descargas
- 12,617
- Publicado
Sobre este modelo

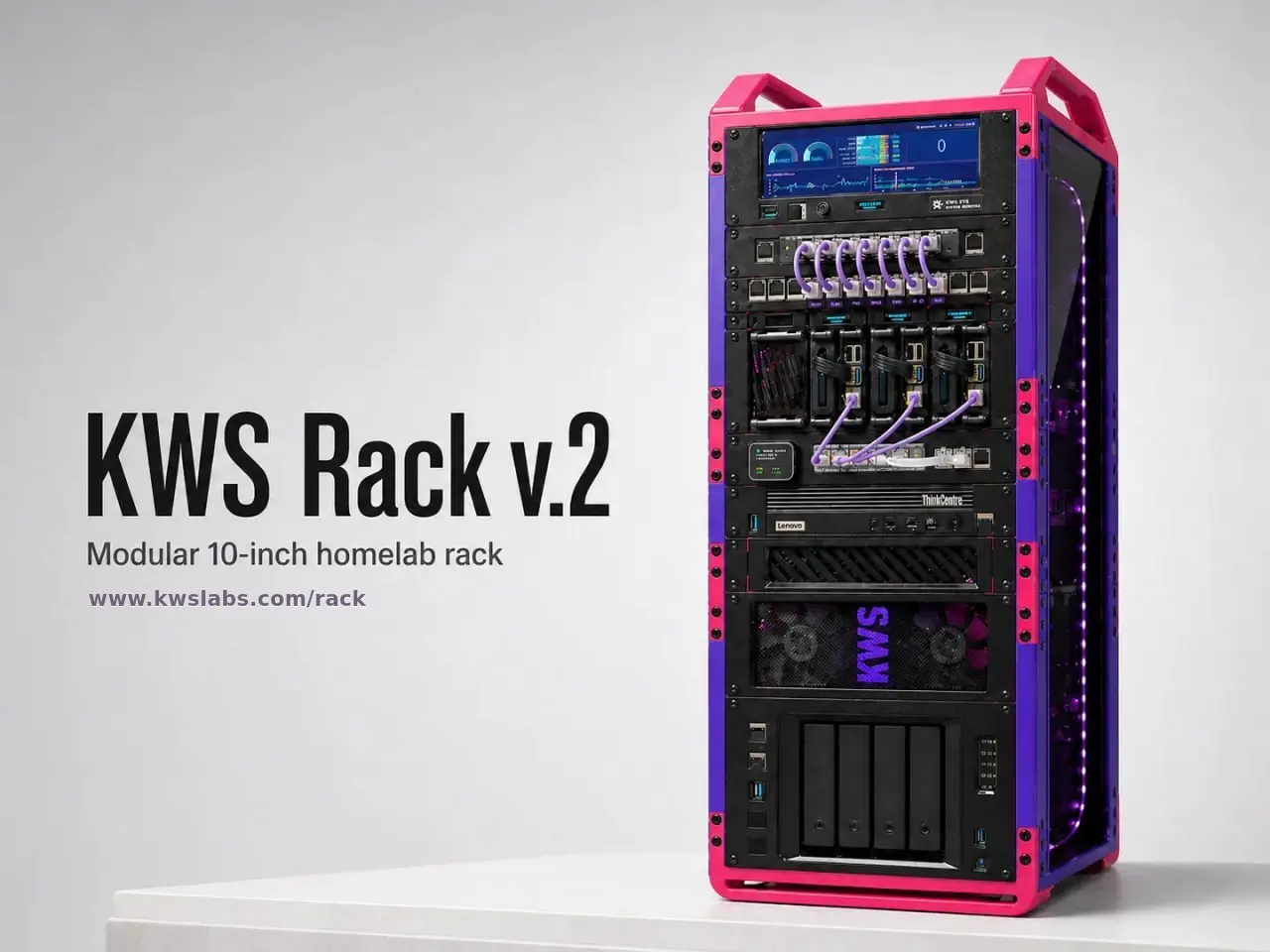

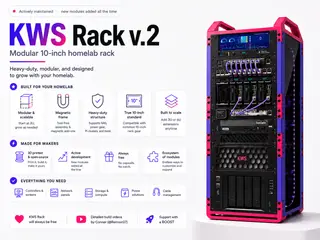

What is KWS Rack? - please visit the KWS Rack planner KWS Rack is a modular, heavy‑duty homelab rack system for makers who want something that feels engineered, not flimsy. It’s designed to hold real equipment - NAS devices, power supplies, Raspberry Pi clusters, screens - while staying clean, expandable, and enjoyable to build. You don’t need to print everything at once. Build what you need today, expand when your homelab grows. Visit www.kwslabs.com/racks to learn more
all community designs can be found here
Updates!
- 21st of April, 2026 - Please visit this Reddit post to see the full updates list
Boost Me💜 KWS Rack will always be free!
If you like the model and want to support my work, feel free to give it a BOOST 🚀
To see a detailed build process you must watch this amazing video by Conner! (@Rennoc07) 🚀
Modular & Scalable

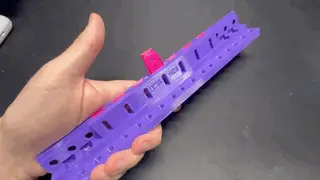

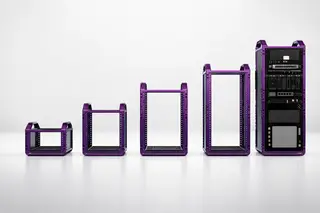

- Minimum size: 3U
- Maximum size: tested up to 30U!
- Recommended starting point: 6U cube base rack
- Add 3U or 6U extensions anytime
No redesigns. No wasted prints. Just stack and grow.
Key Features
- 🧲 Magnetic frame Keep screws and tools stuck to the rack while working. More magnetic add‑ons coming soon!
- 🏋️ Heavy‑duty structure Stable enough for NAS units, power gear, and dense builds.
- 📏 True 10‑inch rack standard Compatible with common 10‑inch rack gear and accessories.
- 🧊 Optional full enclosure Supports side and top panels (printed or laser‑cut 3mm acrylic).
- 📈 Built to scale Designed from day one to grow vertically without compromises.
- 💡 LED & cable management system (separate project will publish soon)
Upcoming Modules The rack is part of a growing ecosystem:
- Screen + Raspberry Pi system monitor / controller module
- Keystone patch panel with magnetic labels
- Rack cable management mounts
- Synology 4Bay Base module (a remix of this model)
- 2U snap‑in Raspberry Pi cluster (up to 8 Pis)
- Power‑supply shelf with cable management
- Magnetic removable back plate
- UPS + PDU back‑panel holder
You can contribute & find next planned additions here
Descripción original del autor, publicada en MakerWorld.
