Sobre este modelo
_Kwiblet_
Rotate the two halves of this twisting Kwiblet and move the marbles along its shifting track to rearrange them until all like colors touch. This is a very simple puzzle, but really more of a fidget toy!
---
The standard arrangement is 8 balls total, 4 of color A and 4 of color B. Kwiblet has been designed for use with 14mm ABS or Acrylic no hole beads (http://bit.ly/PuzzleBeads) (actual diameter is ~13.6mm). For those, use the 13.8mm version. For other balls that are 14mm or larger, use the 14mm version. That one works well with standard 9/16" glass marbles.
Glue in 4 6mmx3mm (1/4"x1/8") neodymium magnets (https://ebay.us/iHdF18) for a smooth and satisfying snap between positions. The magnets should fit snugly in the holes and you may need to use a flat surface to press fit the magnets flush. I also use E6000 craft adhesive (https://amzn.to/3DUKizv) to make sure the magnets are absolutely fixed in place. I like to use ABS filament for the clips for longevity, but PLA can work as well.
Add beads, then use the _clip.stl_ to snap the two Kwiblet halves together to securely join the puzzle.
---
Sources for non-printed parts:
14mm no hole ABS beads - eBay (http://bit.ly/PuzzleBeads) - or these Chinese Checkers Beads on Amazon (https://amzn.to/3byXlsV)
6mmx3mm Neodymium magnets - eBay N52 *best strength (https://ebay.to/3kMB1A4) - eBay N35 (https://ebay.us/iHdF18) - Amazon (https://amzn.to/3Qtm6f6)
E6000 Craft Adhesive - Amazon (https://amzn.to/3OHX22J)
Please feel free to ask questions in the comments and share your experiences and insights. Enjoy the puzzle and leave a tip if you'd like to support my ongoing work :)
---
Default print settings: - _kwiblette.stl_ - 0.1 to 0.2mm layer height*, 3+ perimeters/shells, 8 top/bottom layers, 10% infill (print 2) - _clip.stl_ - .15-0.25 mm layer height, print solid
Print with standard settings. I like 3 shells for a fairly strong part. No supports required.
---

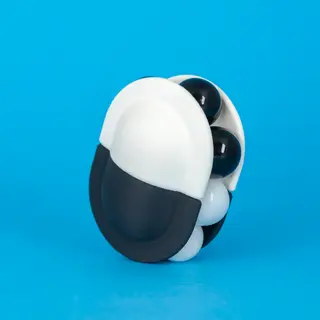

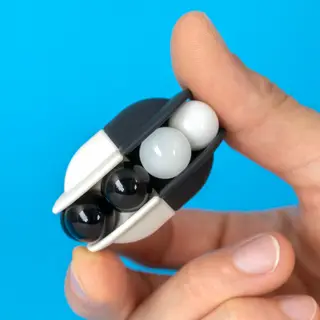

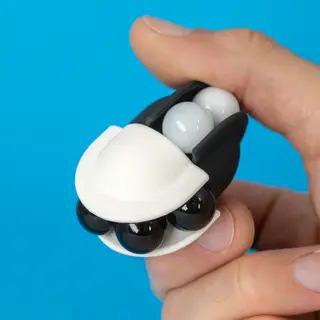

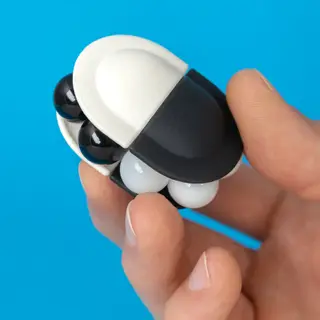

Photographed model shows the 14mm version with glass marbles, printed using Polymaker PolyTerra Matte PLA Black and White (https://amzn.to/3EFBpKM)(US Direct (https://bit.ly/polyTerra))
---
Relevant Video (https://youtu.be/9EumyZKUzhs?si=2h3srUN81GTLk_N1)
