Knurling bolt and nut
por akira 3dp0 en Thingiverse
<UPDATE June 22,2020> I added two .f3d files made in a simple way on Autodesk Fusion 360. - new_knurling_bolt_01.f3d - new_knurling_nut_01.f3d <UPDATE October 27,2018> I published Yet another knurling bolt and nut. <UPDATE June 4,2018> I uploaded Fusion360 (.f3d) files and step files. <UPDATE May...
Licencia
Uso comercial permitidoCC BY-ND 4.0 — Atribución, sin derivadas
Puedes imprimirlo y compartirlo sin cambios dando crédito; no se permite distribuir versiones modificadas.
Al descargar aceptas respetar la licencia y dar crédito a akira 3dp0.
Archivos (14)
- knurling_nut.stl STL · 1,2 MB
- knurling_bolt_20mm.stl STL · 1,1 MB
- knurling_bolt_30mm.stl STL · 1,0 MB
- knurling_bolt_40mm.stl STL · 1,4 MB
- knurling_bolt_50mm.stl STL · 1,4 MB
- knurling_bolt_60mm.stl STL · 1,4 MB
- knurling_bolt_80mm.stl STL · 2,1 MB
- knurling_bolt_100mm.stl STL · 2,1 MB
- knurling_bolt_01.f3d F3D · 2,7 MB
- knurling_nut_01.f3d F3D · 2,7 MB
- knurling_bolt_01.step STEP · 9,6 MB
- knurling_nut_01.step STEP · 9,5 MB
- new_knurling_bolt_01.f3d F3D · 1,3 MB
- new_knurling_nut_01.f3d F3D · 1,3 MB
- Categoría
- Herramientas
- Formatos
- STL, F3D, STEP
- Descargas (todas las plataformas)
- 152,267
- Publicado
También en
Sobre este modelo
<UPDATE June 22,2020> I added two .f3d files made in a simple way on Autodesk Fusion 360. - new_knurling_bolt_01.f3d - new_knurling_nut_01.f3d

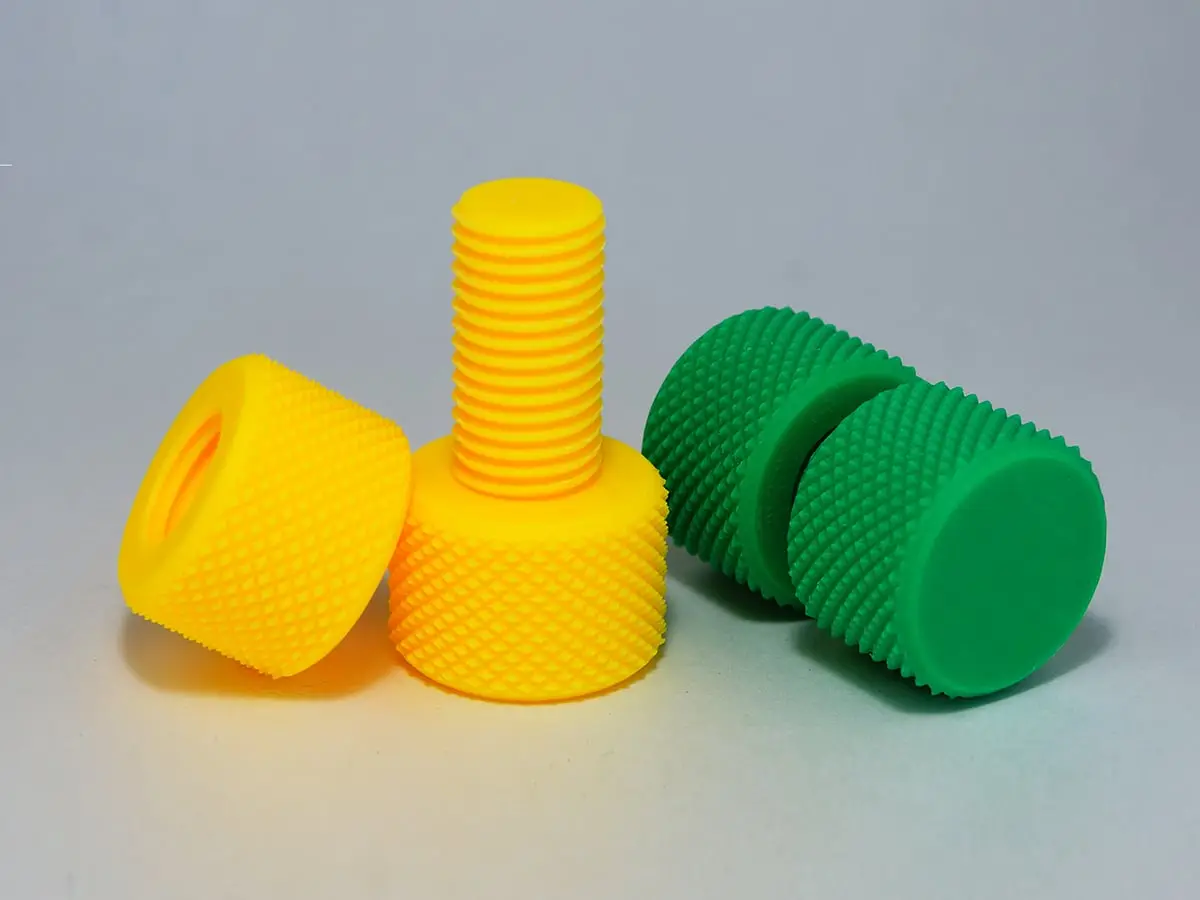

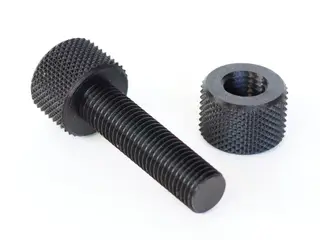

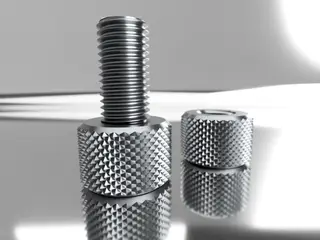

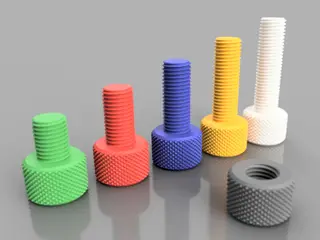

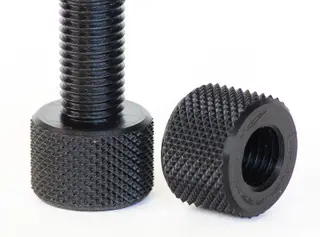

<UPDATE October 27,2018> I published Yet another knurling bolt and nut. <UPDATE June 4,2018> I uploaded Fusion360 (.f3d) files and step files. <UPDATE May 21,2018> An image of the tolerance between the nut and bolt was uploaded. Only measured on 3dcad. See at last thumbnail. < SUMMARY > There are knurling bolts and a nut that modeling on Autodesk Fusion 360. I got a inspiration form Knurled surface finishing library by aubenc. Thanks! I've prepared a bolt of various lengths. So, print a bolt you want. Bolts are M16, pitch 2.0, length 20, 30, 40, 50, 60mm, and Head OD 30mm, height 20mm. A nut is M16, pitch 2.0, height 20mm. See my YouTube about how to making a knurling on Fusion 360 Modeling a knurling on Autodesk Fusion 360
