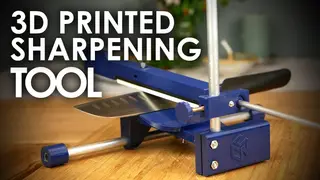

Knife Sharpening Tool V2.1 (with video)

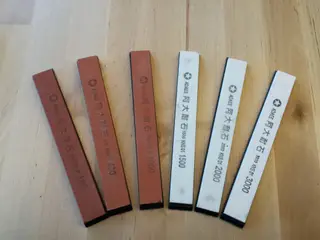

This is the fully revised Version 2.1! Watch how to make and use one: https://youtu.be/IM2il-zT2fA Bill of material: - Suitable sharpening stones set(aff): http://s.click.aliexpress.com/e/yUQ6vUU OR Individual sharpening stones (aff): http://s.click.aliexpress.com/e/cdz55fcM - 1x M3x12 cylindrical head bolt (X, spherical housing) - 1x M3 nut (X, spherical housing) - 1x M4x16 hex head bolt (Z, adj knob) - 1x M4x16 cylindrical head bolt (Y, file handle) - 2x M4 nuts (Z&Y) - 2x M5x20 cylindrical head bolt (Z, bottom stay) - 1x M5x20 hex head bolt (bed, blade stay) - 1x M5 washer (bed, blade stay) - 2x M5 nut (Z, bottom stay) - 1x M5 thumb nut (bed, blade stay) - 10mm diameter x 180mm aluminum rod/tube - 10mm diameter x 300mm aluminum rod/tube - 6mm diameter x 280mm aluminum rod/tube - 10x 10x2mm disc magnets (https://geni.us/Qgif)

Sharp knifes are essential in your kitchen. I was inspired by another 3D printed knife sharpener (http://www.dr-henschke.de/Messerschleifer.html) and adapted the design for relatively cheep Chinese water stones as you can find them on Aliexpress. Additionally I simplified the geometry to reduce the number of parts and to make the assembly easier.
