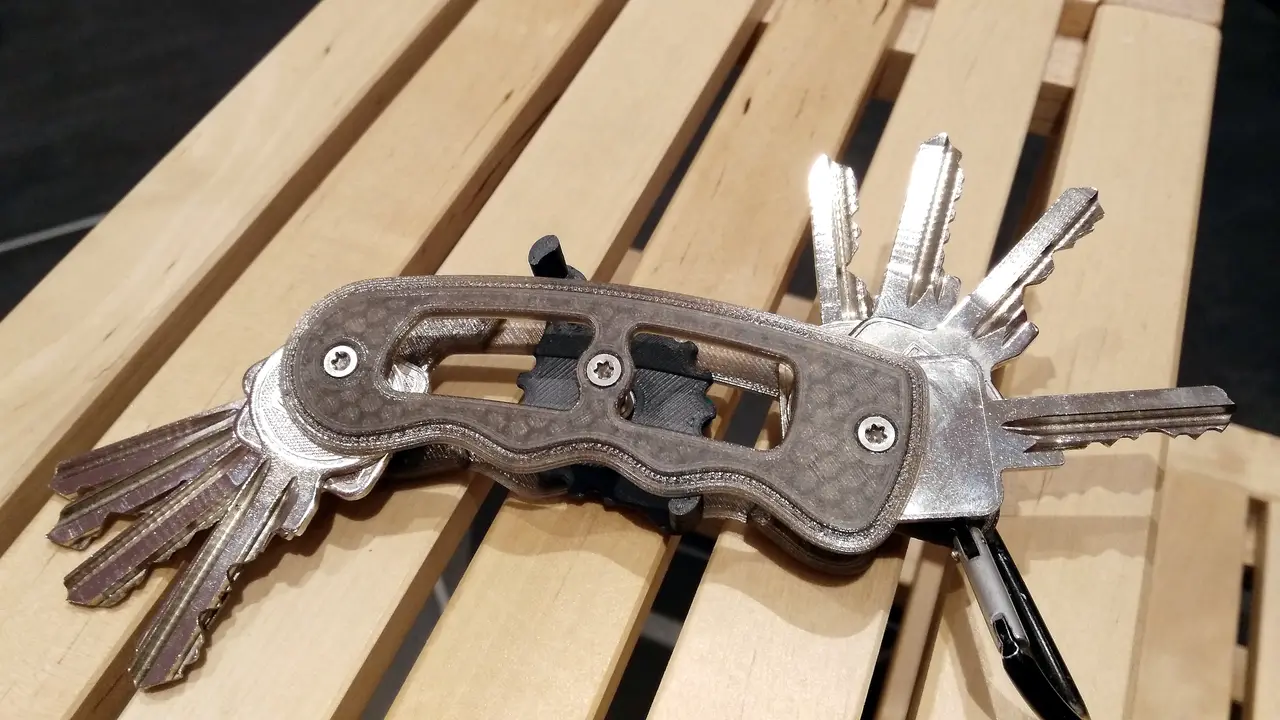

Knife shaped Key Organizer — modelo 3D

Knife shaped Key Organizer

por Marcus Rausch en Thingiverse

Not the last one, the latest one. This is a new version of http://www.thingiverse.com/thing:1613943. I changed the desigen a bit and I split the "key holder_1" in two parts, so I dont need any support material to print the parts. The parts "key holder 1A" and "key holder 1B" are glued together and..

Descargar los 7 archivos Ver en Thingiverse

7 archivos · 921 KB · se descargan uno tras otro

Licencia

Solo uso personal

CC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual

Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.

Al descargar aceptas respetar la licencia y dar crédito a Marcus Rausch.

Archivos (7)
Categoría
Tecnología
Formatos
STL
Descargas
19,975
Publicado

Sobre este modelo

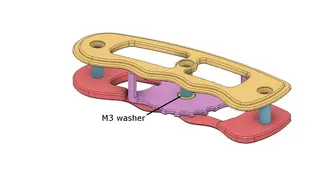

Not the last one, the latest one. This is a new version of http://www.thingiverse.com/thing:1613943. I changed the desigen a bit and I split the "key holder_1" in two parts, so I dont need any support material to print the parts. The parts "key holder 1A" and "key holder 1B" are glued together and screwed to "key holder 2" via three round spacers. I have used these round spacers (https://www.hstronic-gmbh.de/Abstandsrollen-Messing-vernickelt-Innendurchmesser-26-mm-fuer-Gewinde-M25) and cut a M3 thread inside. There are two versions of the key organizer. The first version is for up to nine keys and the second version for up to five keys. Parts for version one : 3x round spacers L=12mm, 1x locking disc_9 keys.stl, 1x key holder_1A.stl, 1x key holder_1B.stl , 1 x key holder_2.stl , 1x keychain.stl and spacer.stl to prevent the rattle if less than nine keys are installed (For example 2 spacer if you only have seven keys). 6x M3x6 countersink screw (DIN 965) , 1x M3 washer. Parts for version two : 3x round spacers L=7mm, 1x locking disc_5 keys.stl, 1x key holder_1A.stl, 1x key holder_1B.stl , 1 x key holder_2.stl , 1x keychain.stl and spacer.stl to prevent the rattle if less than nine keys are installed (For example 2 spacer if you only have three keys). 6x M3x6 countersink screw (DIN 965) , 1x M3 washer. If you want to attach a Laguiole or a Thiers blade to your Knife shaped Key Organizer check out http://www.thingiverse.com/thing:1846580 or http://www.thingiverse.com/thing:1865215 Watch also the videos. https://youtu.be/0hpCz6o1hX4 https://youtu.be/mWeCin7zpsY

Descripción original del autor, publicada en Thingiverse.
