A remix to mount the dock on the z-axis extrusions right below the printbed on my Rook Scalable 2020 MK2.
Licencia
Uso comercial permitidoPuedes usarlo, modificarlo y venderlo; si distribuyes versiones modificadas deben ir con la misma licencia y sus fuentes.
Al descargar aceptas respetar la licencia y dar crédito a Galvani Filho.
- Categoría
- Para tu impresora
- Formatos
- STL
- Descargas
- 0
- Publicado
Sobre este modelo

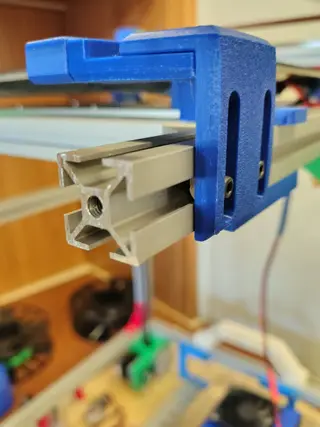

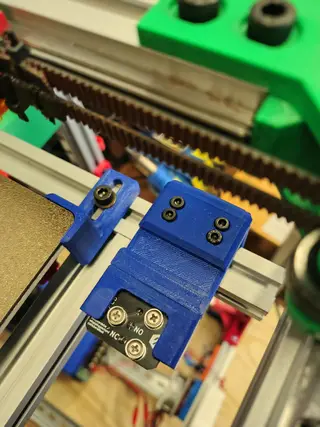

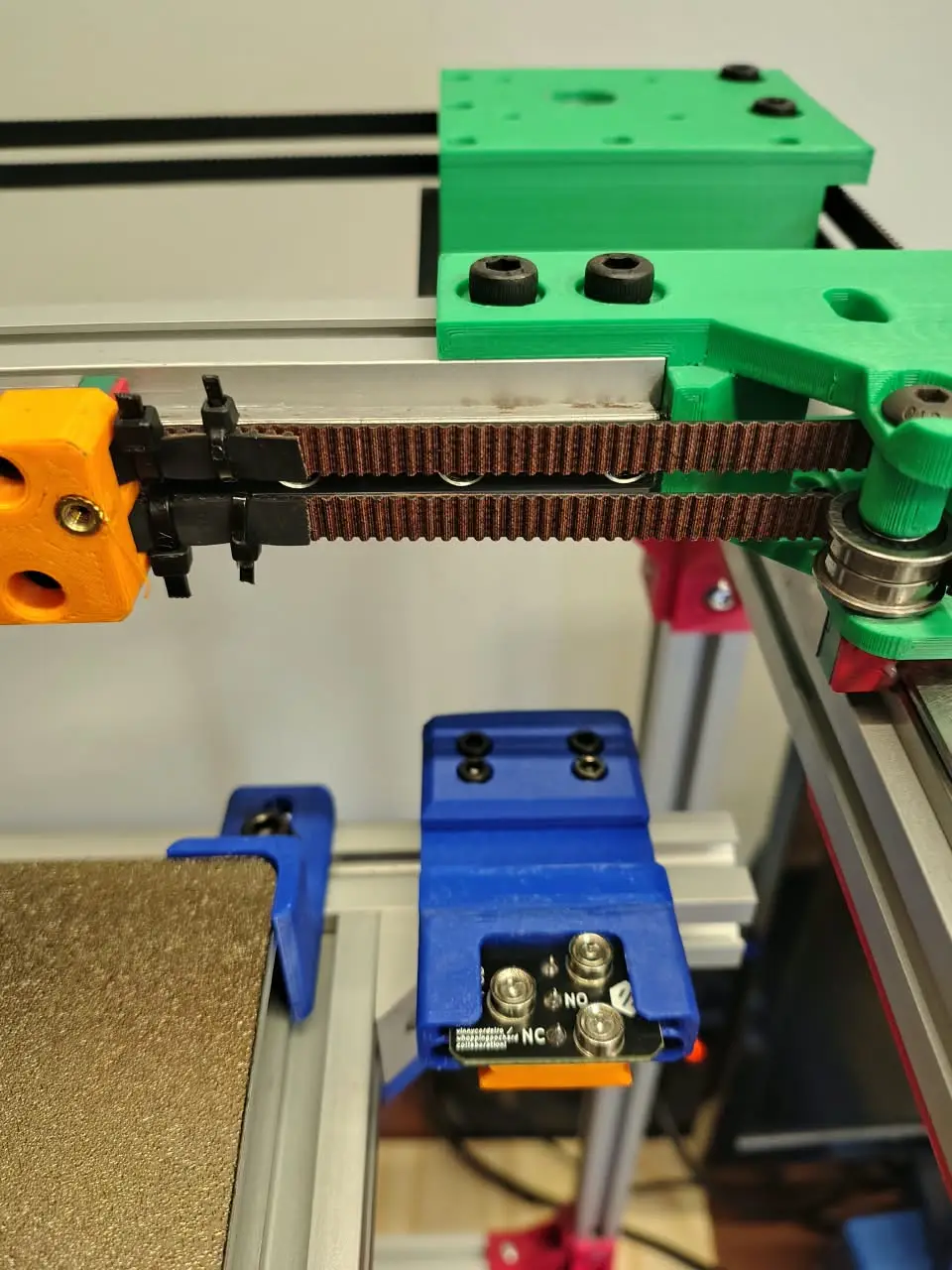

My Rook 2020 Scalable MK2 has a lot of overtravel, but I couldn't find a place for Klicky anywhere but on the top of the printbed frame. I remixed the original files to put a Better Dock a few millimeters just below the printbed on the right side of the z-axis extrusions. I position the toolhead at the right x and y positions then I roll the bed up a bit over z=0 so klicky latches in place. You'll need six M3x8 bolts and a couple of m3 t-nuts plus anything you already selected for the original model.
