Kitchen paper roll holder (IKEA Skadis compatible)
por Hawk7 en Printables
Paperroll holder made out of two parts. Easy roll replacement. Install with double sided tape, screws, hooks for SKADIS.
Licencia
Solo uso personalCC BY-NC 4.0 — Atribución, no comercial
Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a Hawk7.
Archivos (12)
- Holder-Left_Long.stl STL · 212 KB
- Holder-Left_Short.stl STL · 193 KB
- Holder-Right_Long.stl STL · 212 KB
- Holder-Right_Short.stl STL · 193 KB
- Base-Left_Clean.stl STL · 146 KB
- Base-Left_SingleScrew.stl STL · 162 KB
- Base-Left_DoubleScrew.stl STL · 178 KB
- Base-Left_SKADIS-Hooks.stl STL · 348 KB
- Base-Right_Clean.stl STL · 146 KB
- Base-Right_SingleScrew.stl STL · 162 KB
- Base-Right_DoubleScrew.stl STL · 178 KB
- Base-Right_SKADIS-Hooks.stl STL · 348 KB
- Categoría
- Hogar
- Formatos
- STL
- Descargas
- 2,322
- Publicado
Sobre este modelo
Kitchen paper roll holder

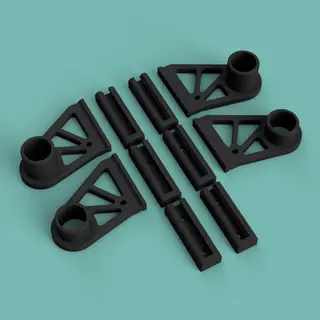

Sharing my paper roll holder model. Seperated parts make for easy replacement of the paper rolls. The thing consists of two parts on each side: - The “base” that can be mounted to the wall (or wherever) - The “holder” itself that slides into the base mount from the top
Roll measurements - Min inside diameter: Ø32mm - Max roll diameter: Ø110mm

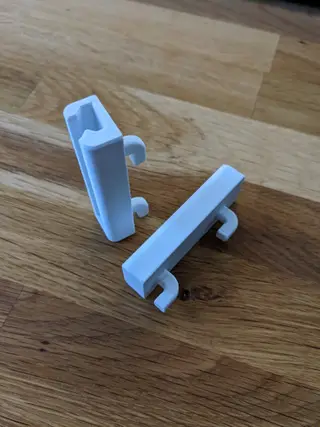

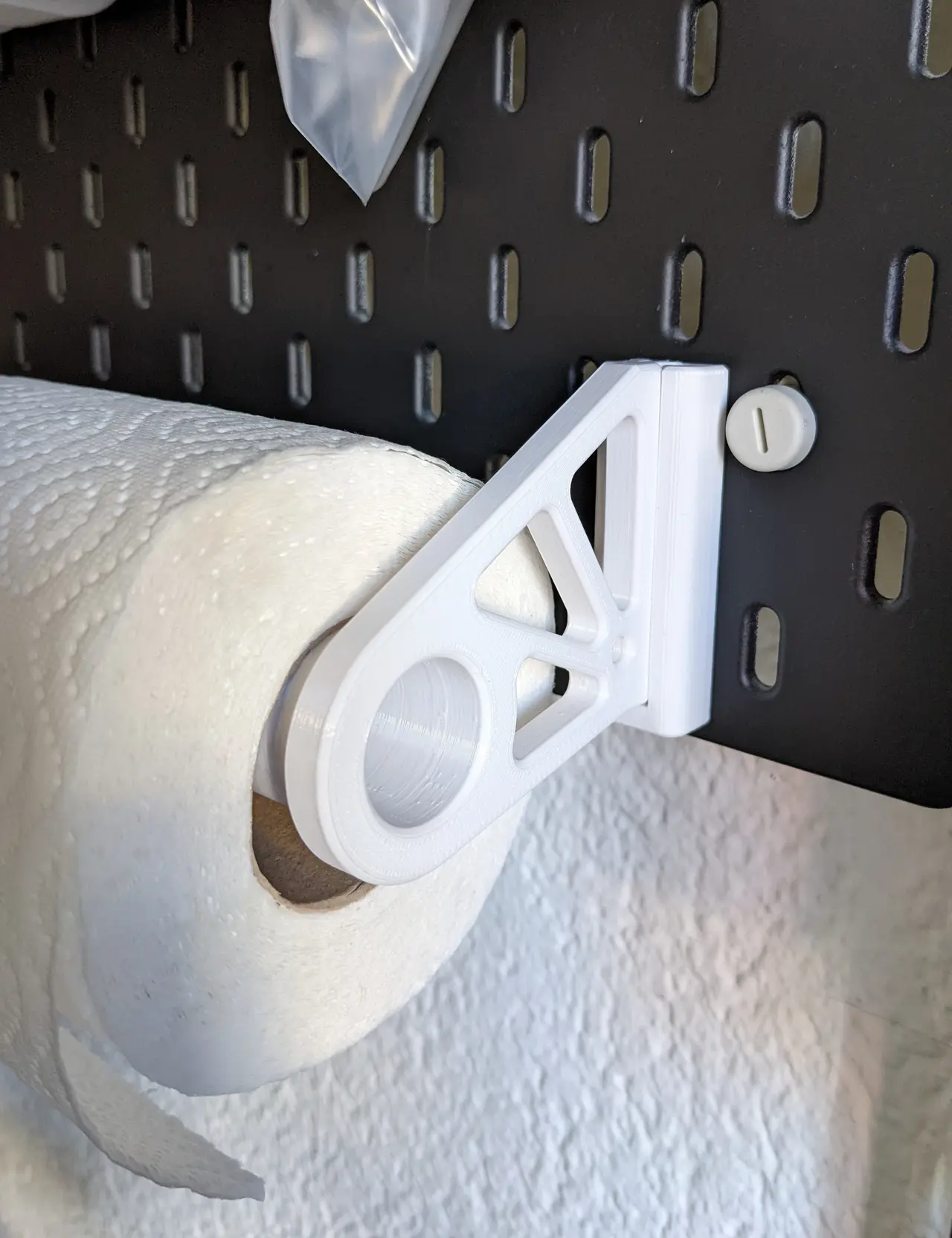

Models available for download Four different base models for select mounting options: - “Clean” for double sided tape or glue - “SingleScrew” for a single 3mm screw per base - “DoubleScrew” for two 3mm screws per base - “SKADIS Hooks” to hang it onto IKEA SKADIS Pegboards
Two different holders for your personal taste: - “Short” for a 16mm long extension - “Long” for a 26mm long extension

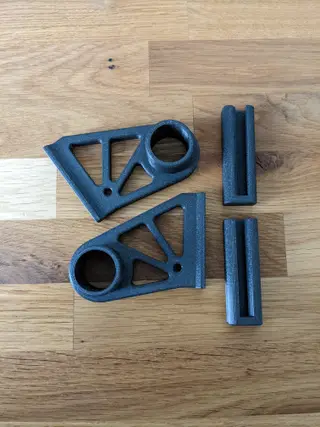

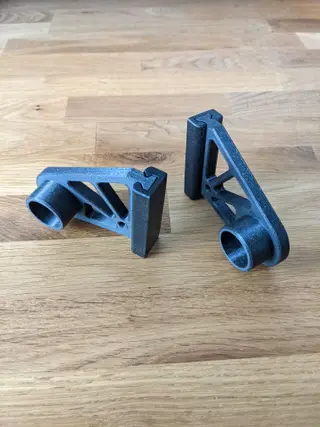

Printing I printed these models on my iMK3S+ with 0.2mm Layer height in PLA and PETG. No supports needed (Except for hook-bases). Images attached are the short version with clean base in PLA (Prusament Galaxy Black) and the long version with single screw base in PETG (Prusament PETG Signal White).
Feedback Let me know if you have any issues with the print, or if anything needs updating. If I find the time for it, I'll try to implement it. Also, if you like the design, let me know as well :) Hope you enjoy the model
Descripción original del autor, publicada en Printables.
