Junction Box, different sizes
por 3Dimensions en Printables
Configurable junction box for Wago 221 and Wago 2273, with various cable entry options
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a 3Dimensions.
Archivos (112)
- Example box 120x120.3mf 3MF · 6,1 MB
- Example box 120x80.3mf 3MF · 4,4 MB
- Example box 80x80.3mf 3MF · 3,5 MB
- Example box 80x60.3mf 3MF · 3,3 MB
- Example inserts.3mf 3MF · 178 KB
- Example sleeves.3mf 3MF · 2,9 MB
- Example caps.3mf 3MF · 561 KB
- 120x120 Clip-on Lid.stl STL · 3,2 MB
- Lid 120x120, Height 7mm.stl STL · 773 KB
- Lid 120x120, Height 15mm.stl STL · 766 KB
- Lid 120x120, Height 25mm.stl STL · 751 KB
- Lid 120x120, Height 75mm.stl STL · 806 KB
- Box 120x120, Variant 1.stl STL · 4,9 MB
- Box 120x120, Variant 2.stl STL · 19,9 MB
- Box 120x120, Variant 3.stl STL · 19,8 MB
- Box 120x120, Variant 4.stl STL · 22,9 MB
- Box 120x120, Variant 5.stl STL · 28,9 MB
- Box 120x120, Variant 6.stl STL · 28,0 MB
- Box 120x120, Variant 7.stl STL · 21,9 MB
- Box 120x120, Variant 8.stl STL · 20,9 MB
- Box 120x120, Variant 9.stl STL · 28,3 MB
- Box 120x120, Variant 10.stl STL · 28,6 MB
- Box 120x120, Variant 11.stl STL · 20,1 MB
- Box 120x120, Variant 12.stl STL · 21,5 MB
- Box 120x120, Variant 13.stl STL · 24,5 MB
- Box 120x120, Variant 14.stl STL · 24,2 MB
- Box 120x120, Variant 15.stl STL · 24,3 MB
- Box 120x120, Variant 16.stl STL · 23,0 MB
- Box 120x120, Variant 17.stl STL · 23,2 MB
- 120x80 Clip-on Lid.stl STL · 3,0 MB
- Lid 120x80, Height 7mm.stl STL · 727 KB
- Lid 120x80, Height 15mm.stl STL · 696 KB
- Lid 120x80, Height 25mm.stl STL · 685 KB
- Box 120x80, Variant 1.stl STL · 4,3 MB
- Box 120x80, Variant 2.stl STL · 15,3 MB
- Box 120x80, Variant 3.stl STL · 15,3 MB
- Box 120x80, Variant 4.stl STL · 17,4 MB
- Box 120x80, Variant 5.stl STL · 22,2 MB
- Box 120x80, Variant 6.stl STL · 21,5 MB
- Box 120x80, Variant 7.stl STL · 16,6 MB
- Box 120x80, Variant 8.stl STL · 16,2 MB
- Box 120x80, Variant 9.stl STL · 21,8 MB
- Box 120x80, Variant 10.stl STL · 21,8 MB
- Box 120x80, Variant 11.stl STL · 15,5 MB
- Box 120x80, Variant 12.stl STL · 16,3 MB
- Box 120x80, Variant 13.stl STL · 18,2 MB
- Box 120x80, Variant 14.stl STL · 17,9 MB
- Box 120x80, Variant 15.stl STL · 18,0 MB
- 80x80 Clip-on Lid.stl STL · 2,5 MB
- Lid 80x80, Height 7mm.stl STL · 586 KB
- Lid 80x80, Height 15mm.stl STL · 586 KB
- Lid 80x80, Height 25mm.stl STL · 640 KB
- 80x80, Variant 1.stl STL · 3,6 MB
- 80x80, Variant 2.stl STL · 11,5 MB
- 80x80, Variant 3.stl STL · 11,3 MB
- 80x80, Variant 4.stl STL · 13,0 MB
- 80x80, Variant 5.stl STL · 16,1 MB
- 80x80, Variant 6.stl STL · 15,5 MB
- 80x80, Variant 7.stl STL · 12,0 MB
- 80x80, Variant 8.stl STL · 15,9 MB
- Categoría
- Tecnología
- Formatos
- 3MF, STL, STP
- Descargas
- 5,984
- Publicado
Sobre este modelo

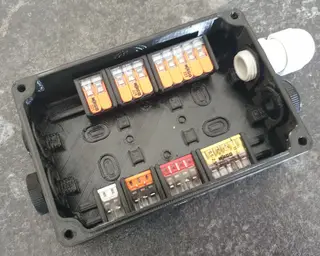

Print your own junction box and attach various WAGO terminals. Whichever you need for your application. Secure your cables with zip ties or various cable glands. Use the threads for your cable glands or drill your own holes to secure the cable gland with nuts. If you miss a variants please let me know! Anyway, if my time permits, I would like to provide further variants! Update 29.02.2024: Clip-on lid added Update 02.03.2024: Box 80x60 added Update 11.03.2024: Box 120x120 added, nuts thickness from 5mm to 4mm, thread of the sleeves extended by 1.2mm Update 21.03.2024: Higher lids added (15mm and 25mm for each box size), generic insert as stp-file, to create your own inserts. Features: Fix your cables with zip ties:
Clip different WAGO Inserts in a rail:

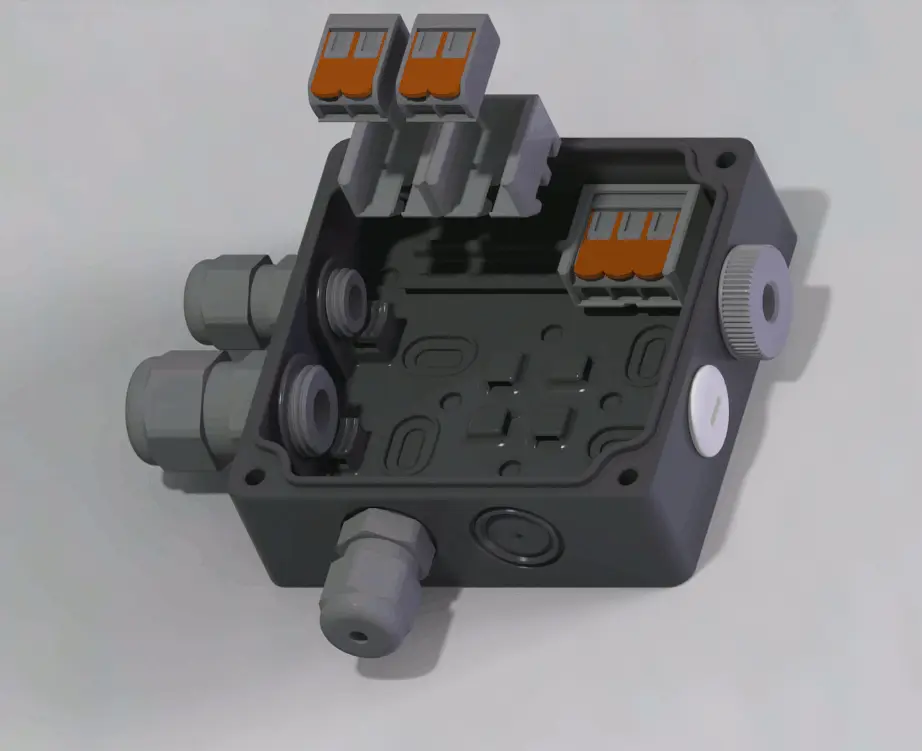

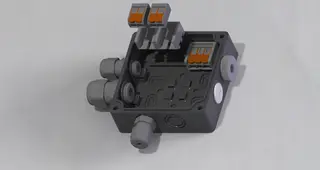

To mount the Wago inserts, they are clipped onto the rail. The Wago terminals can also be clipped in before or afterwards. Add various cable glands and accessories:

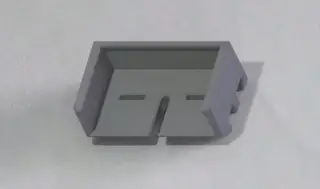

Inserts: - WAGO 2273-202 - WAGO 2273-203 - WAGO 2273-204 - WAGO 2273-205 - WAGO 221-412 - WAGO 221-413 - WAGO 221-415 - generic insert
Choose your lid: - Lid 80x60, with screws, height: 7mm, 15mm, 25mm - Lid 80x80, with screws, height: 7mm, 15mm, 25mm - Lid 120x80, with screws, height: 7mm, 15mm, 25mm - Lid 120x120, with screws, height: 7mm, 15mm, 25mm - Lid 80x60, clip on - Lid 80x80, clip on - Lid 120x80, clip on - Lid 120x120, clip on
Example: Lid 80x60, with screws
Example: Lid 80x60, clip on
Box Variants 80x80: BreakoutsM12 x 1.5M16 x 1.5M12x1.5 zip tiesM16x1.5 zip tiesRail for insertsNote 1 NOonly box 28x NO 3 8x NO 4 8x NO 5 8x NO 6 8xNO 7 4x4x NO different Positions
8 4x4xNO 9 4x4x NO 10 4x4xNO 114x4x YES 124x 4x YES 134x 4x YES 144x 4xYES 154x 2x2xYES
Box Variants 120x80: BreakoutsM12 x 1.5M16 x 1.5M12x1.5 zip tiesM16x1.5 zip tiesRail for insertsNote 1 NOonly box 210x NO 3 10x NO 4 10x NO 5 10x NO 6 10xNO 7 4x6x NO different Positions
8 4x6xNO 9 4x6x NO 10 4x6xNO 116x4x YES 126x 4x YES 136x 4x YES 146x 4xYES 156x 2x2xYES
Box Variants 80x60: BreakoutsM12 x 1.5M16 x 1.5M12x1.5 zip tiesM16x1.5 zip tiesRail for insertsNote 1 NOonly box 6x NO 3 6x NO 4 6x NO 5 6x NO 6 6xNO 7 2x4x NO 8 2x4xNO 9 4x2x NO 10 4x2xNO 114x2x YES 124x 2x YES 134x 2x YES 144x 2xYES
Box Variants 120x120: BreakoutsM12 x 1.5M16 x 1.5M12x1.5 zip tiesM16x1.5 zip tiesRail for insertsNote 1 NOonly box 212x NO 3 12x NO 4 12x NO 5 12x NO 6 12xNO 7 4x8x NO different Positions
8 8x4xNO 9 4x8x NO 10 8x4xNO 116x6x YES 126x 6x YES2 rails 136x 6x YES2 rails 146x 6xYES2 rails 156x 2x4xYES2 rails 168x 4xYES4 rails 178x 4x YES4 rails Print Settings: - See the different examples in download section, especially for orientation - I used PETG, PLA will work too - 0,2mm layer heigt - 0,4mm nozzle - 15% infill - no supports needed
Screws: - Use countersunk screws M4 to assemble the lid with screws
Miscellaneous: - Electrical work may only be carried out by trained electricians. - Does not represent a certified junction box according to VDE or similar standards. - Use at your own risk.
