Japanese Lantern Lithophane
por turbo022 en Printables

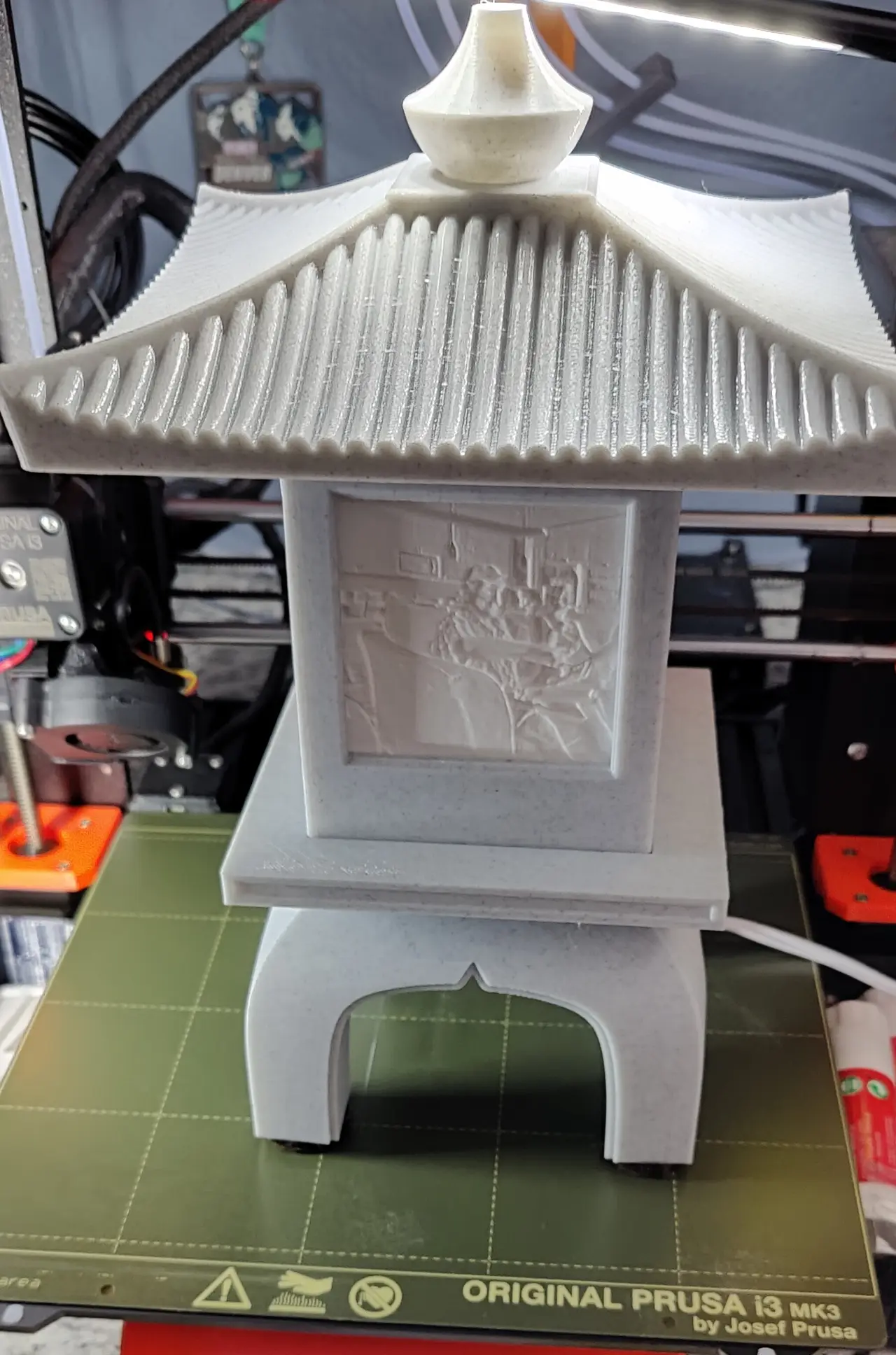

This is a Japanese style lantern that can accept 70x70mm lithophane panels to enjoy pictures of your choice!
Licencia
Uso comercial permitidoPuedes imprimirlo, modificarlo y venderlo dando crédito al autor.
Al descargar aceptas respetar la licencia y dar crédito a turbo022.
Archivos (6)
- Japanese Lamp base.stl STL · 504 KB
- Japanese Lamp center lithophane.stl STL · 205 KB
- Japanese Lamp Top.stl STL · 31,1 MB
- Japanese_Lantern_Top_0.15mm_PLA_MK3SMMU2S_1d1h49m.gcode GCODE · 70,7 MB
- Japanese Lamp center lithophane_0.15mm_PLA_MK3SMMU2S_11h20m.gcode GCODE · 10,3 MB
- Japanese Lamp base_0.15mm_PLA_MK3SMMU2S_17h16m.gcode GCODE · 20,2 MB
- Categoría
- Hogar
- Formatos
- STL, GCODE
- Descargas
- 670
- Publicado
Sobre este modelo

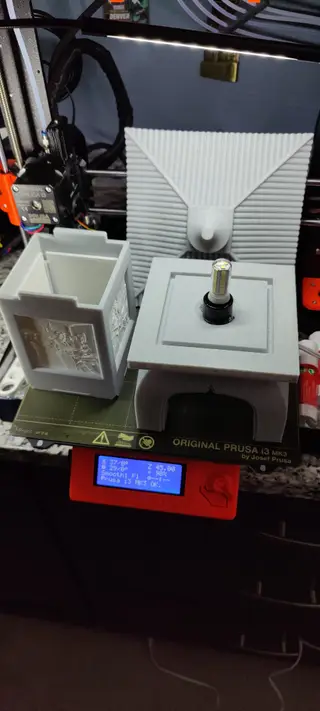

Giving full credit to the original design - this is a remix of this lantern - Japanese Garden Lantern Lamp by Keenan - Thingiverse I printed everything at .15 layer height. I did supports only on the middle section on the openings for the lithophane panels. I used the new snug supports and they came out perfectly. This remix includes a hole through the base to slide through the power cord from one of the feet to where the lighting socket is installed. I hot glued the lighting socket in place.
The Lithophane Panels I created were generated from Image to Lithophane (3dp.rocks) Settings for the lithophane panels: - 70mm - 3mm thickness - 1mm border - Positive image generation
Lighting parts used: - Lighting Socket - Light Bulb - Power Cord
Filament used: - Marble PLA - White PETG
