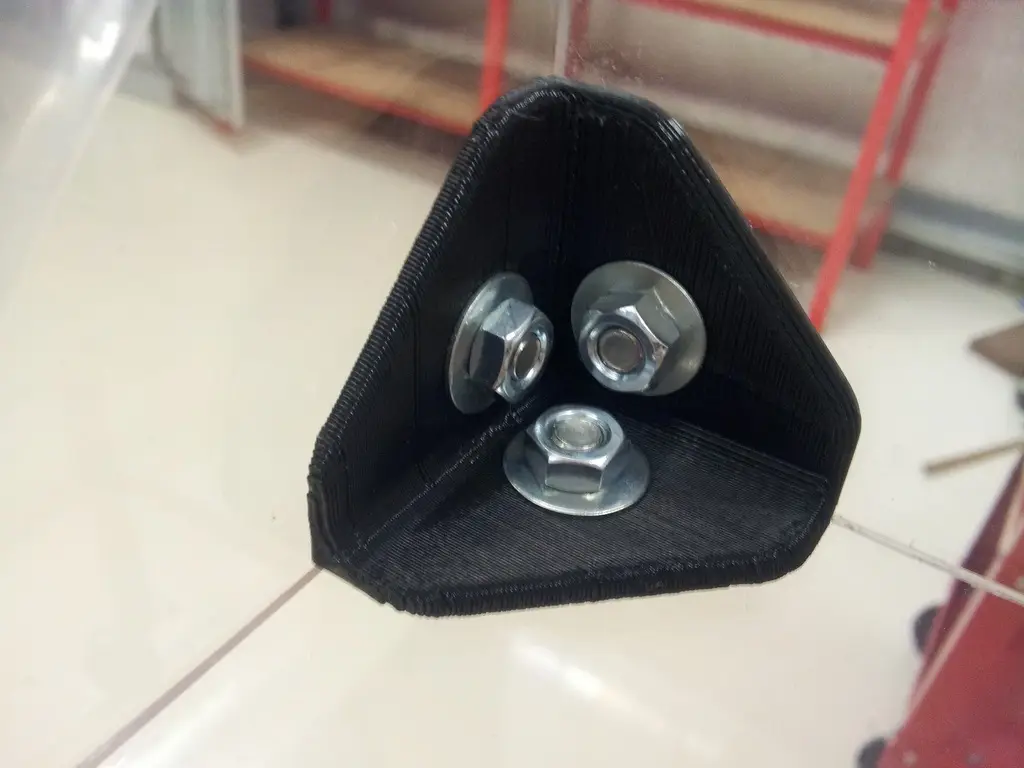

Internal Corner Bracket
por Tez en Thingiverse

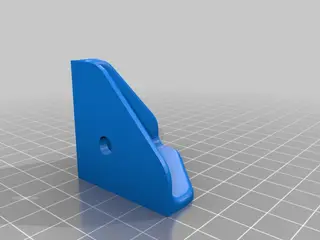

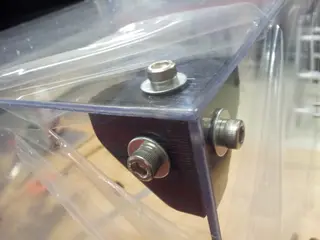

An internal Corner Bracket for sheet construction like perspex etc. or could even be used with self-taping screws under a timber shelf, its up to you! - The bolt holes are 6mm Dia. - The overall size is 40x40x40mm 3mm thick. - 15mm Bolt hole edge distance. I've attached the DXF to help customise.
Licencia
Uso comercial permitidoCC BY-SA 4.0 — Atribución, compartir igual
Puedes usarlo y modificarlo dando crédito; las versiones modificadas deben compartirse con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Tez.
- Categoría
- Hogar
- Formatos
- STL, DXF
- Descargas
- 17,103
- Publicado
Sobre este modelo
An internal Corner Bracket for sheet construction like perspex etc. or could even be used with self-taping screws under a timber shelf, its up to you! - The bolt holes are 6mm Dia. - The overall size is 40x40x40mm 3mm thick. - 15mm Bolt hole edge distance.
I've attached the DXF to help customise.
Descripción original del autor, publicada en Thingiverse.
