Insert Remover - Honeycomb Wall (HSW)
por Jodameister en Printables
A Tool to remove Inserts (hollow) from the Honeycomb Wall
Licencia
Solo uso personalCC BY-NC 4.0 — Atribución, no comercial
Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a Jodameister.
- Categoría
- Hogar
- Formatos
- STL, STEP
- Descargas
- 6,729
- Publicado
Sobre este modelo

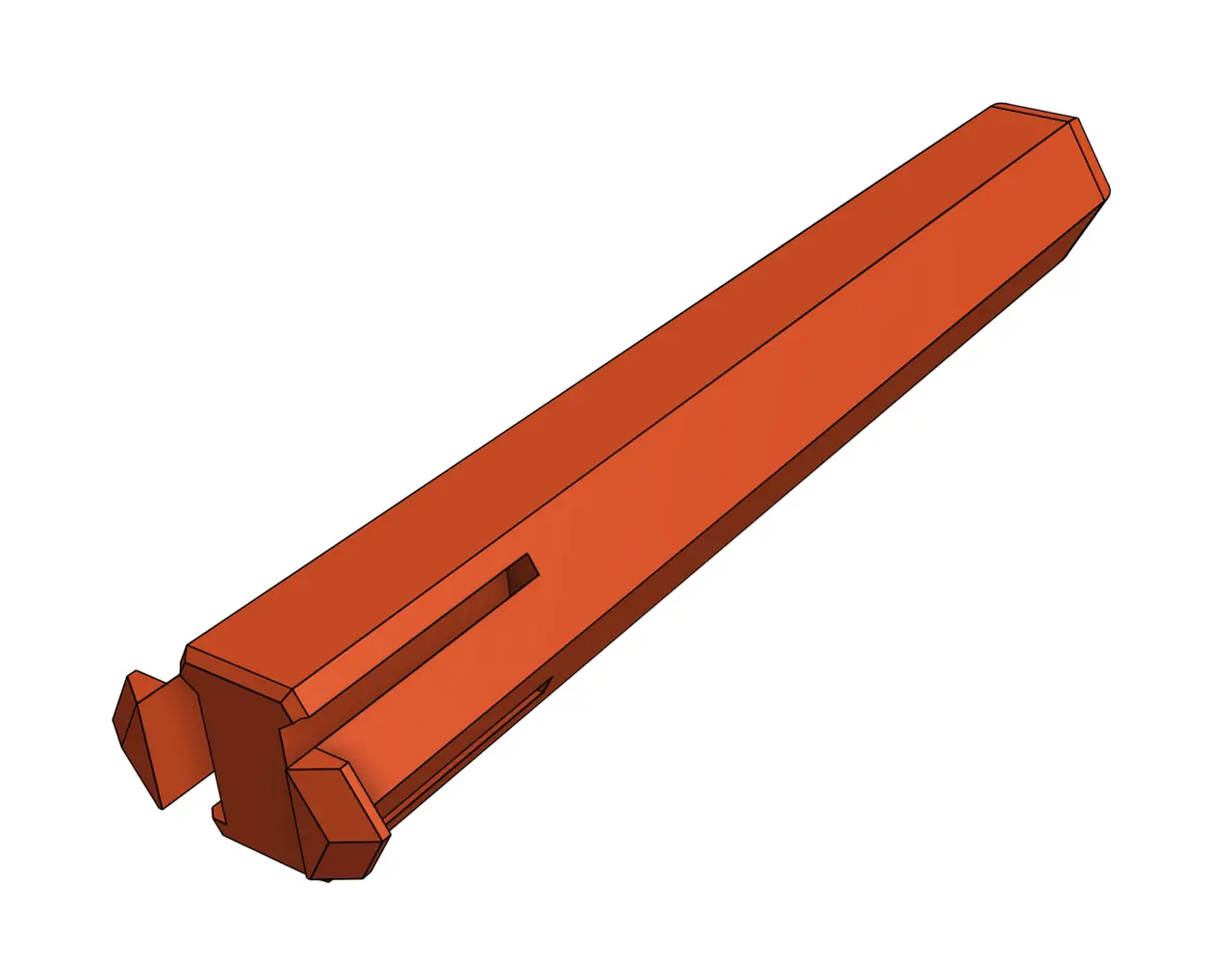

When the Inserts fits tight in the Honeycomb Wall, they are difficult to remove for replacing to another location. I tried with a screwdriver, but the PLA gets deformed. So I designed a removal tool. Stick the tool in the inner hex from the insert and press the hooks on both sides until they click in. Now lever the tool up and down and pull the insert out. When the insert is removed, you kann push the tool trough the insert. Print-Settings: - PLA - 0.2mm - Shells 4 - Infill 50% - Support: Yes, Bed only
STEP-File is provided. Fill free to remix it. If you print the tool and find it helpfull, please hit Like and rate it. Thank you!
