Infimech TX Exhaust Filter

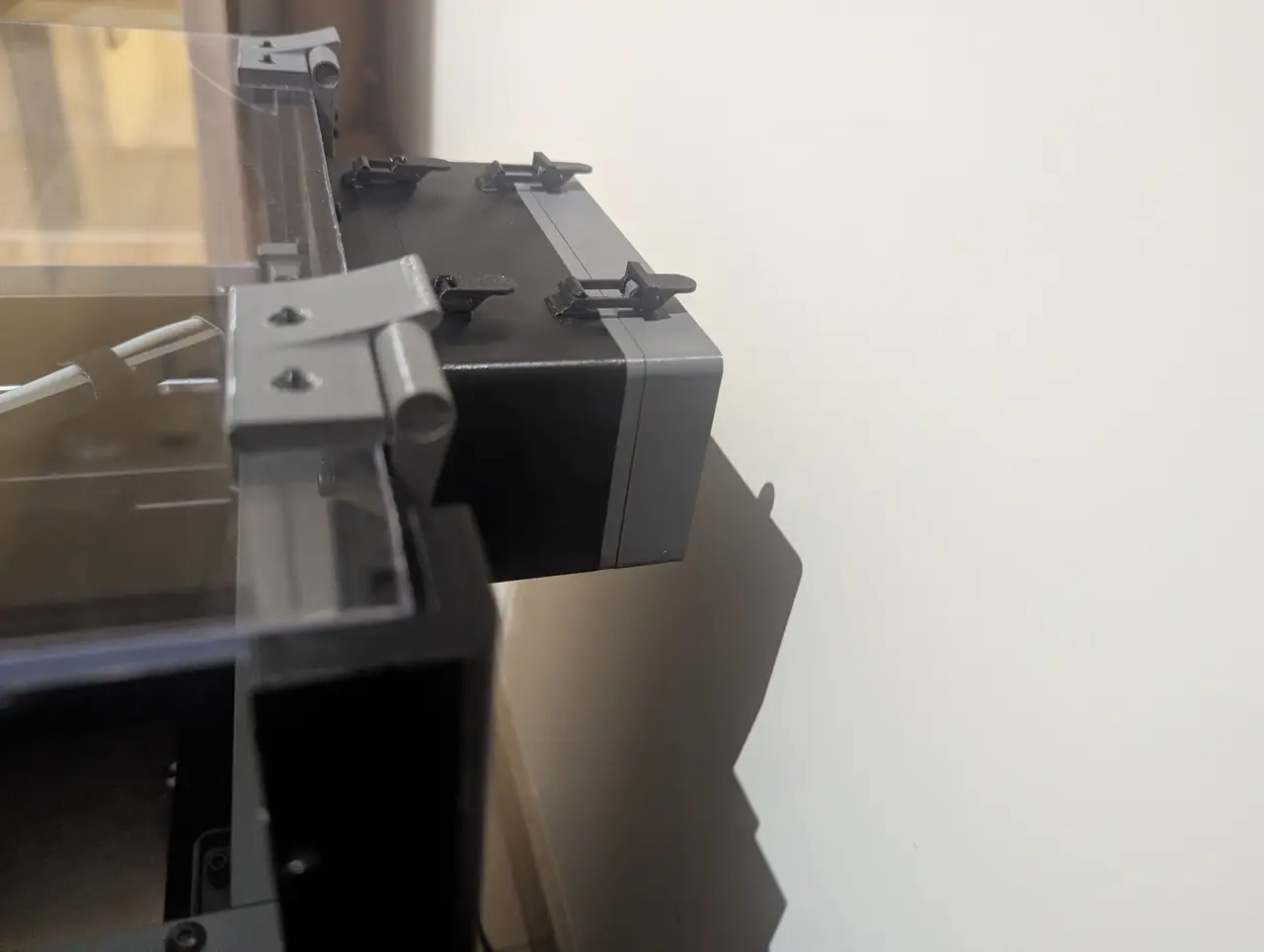

I created a carbon and HEPA filter for the TX. I used 2x5015 fans to help evacuate the air from the enclosure in the room. The system features a modular approach with quick-release latches.

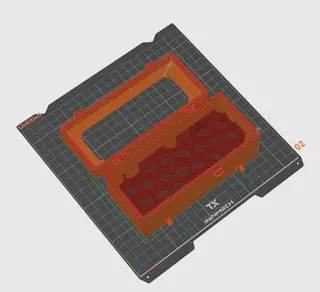

For the HEPA I settled on this ones and used 2 to get a bigger surface of 150x60mm. The carbon bed is similar in size and gave it a 20mm depth, it holds about 120-150 grams of carbon so it should last a while. The only hardware needed are 2 x M4x12 and nuts if it's used with my Top Hat, or M4x9 if used on the stock exhaust panel. The 3mf is attached if someone wants to build it. I don't really know 3mfs work, I hope the settings are transfered properly. The carbon housing has 2 additional objects inside it, one on it's face that needs not tops or bottoms and 18% zig-zag infill, and another inside that need no tops or bottoms and 8% hexagon infill. Also there is a carbon catch thinghie that requires you to embed a mesh of sorts inside the print. I used some window insect netting and it works great. This parts goes over the carbon and should stop it from falling out. I printed everything from PETG for a bit higher temp resistance.
