Industrial Worm Gearbox / Gear Reducer (Cutaway version)
*** PART OF MY INDUSTRIAL GEARBOX COLLECTION ***
Cults3D entrega los archivos a usuarios con cuenta gratuita
Licencia
Uso comercial permitidoPuedes imprimirlo, modificarlo y venderlo dando crédito al autor.
Al descargar aceptas respetar la licencia y dar crédito a LarsRb.
Archivos (12)
- (1x) Housing.stl STL
- 1x_Axle.stl STL
- 1x_Handle.stl STL
- 1x_Housing_bottom.stl STL
- 1x_Housing_top.stl STL
- 1x_NON-CUTAWAY_house.stl STL
- 1x_NON-CUTAWAY_top.stl STL
- 1x_Spacer_big.stl STL
- 3x_Spacer_small.stl STL
- 3x_Stop.stl STL
- x_Worm.stl STL
- x_Worm_gear.stl STL
- Categoría
- Varios
- Formatos
- STL
- Descargas
- 5,300
- Publicado
Sobre este modelo
*** PART OF MY INDUSTRIAL GEARBOX COLLECTION ***

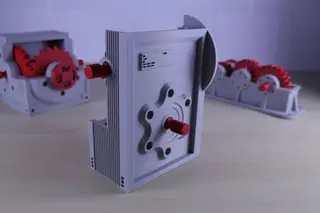

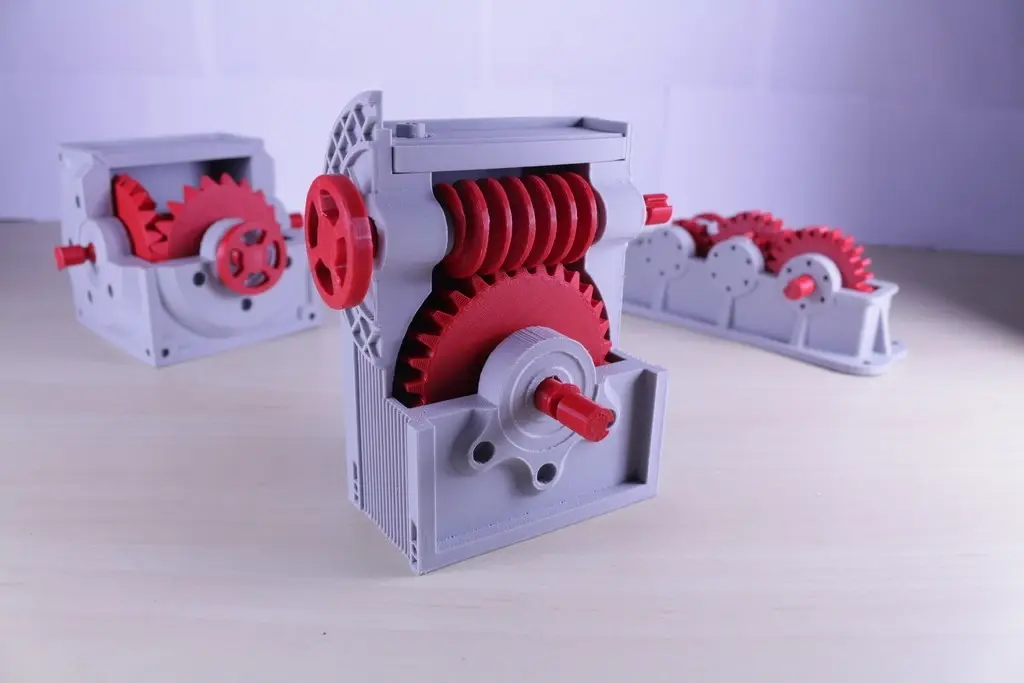

This is a fully 3D printable version of an industrial worm gearbox / gear reducer. This cutaway version can be used for training purposes, and has a gear ratio of 1:30
Worm gears

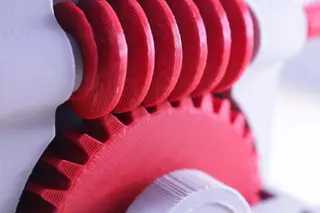

A worm gear consists of a “worm” and a “worm gear”. The worm is a gear with a screw-like shape, when the worm turns 360 degrees the worm gear rotates 1 teeth. Worm gear reducers are typically used in applications that requires high speed reduction when space is limited. Another advantage of the worm gear is that “back driving” is nearly impossible.
No additional hardware needed!
*** UPDATE 7-16-2018***

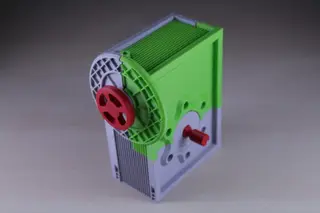

I`ve added a cap that can make the gearbox non-cutaway, see the green parts in the fourth picture. When you want the gearbox to be non-cutaway, you have to print the 2 files named with NON-CUTAWAY.
