Industrial Funnel Lamp - Steampunk E27 Lamp Shade with Truss Table and Wall Stand
A wide industrial funnel with riveted seams, hexagonal vents, a beaded rim and a geared neck, perfect over a desk or a workbench. The stand is a bolted truss bracket on a square column with bolted plates and an industrial base with hex bolts.
Cults3D entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalLicencia de uso privado de Cults3D: puedes imprimirlo para ti. No se permite compartir el archivo ni vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a VRam3D.
Archivos (5)
- Industrial_Funnel_Lamp_Arm.stl STL
- Industrial_Funnel_Lamp_Shade.stl STL
- Industrial_Funnel_Lamp_Table_Base.stl STL
- Industrial_Funnel_Lamp_Table_Column.stl STL
- Industrial_Funnel_Lamp_Wall_Plate.stl STL
- Categoría
- Hogar
- Formatos
- STL
- Descargas
- 0
- Publicado
Sobre este modelo
A wide industrial funnel with riveted seams, hexagonal vents, a beaded rim and a geared neck, perfect over a desk or a workbench. The stand is a bolted truss bracket on a square column with bolted plates and an industrial base with hex bolts.
One design, three ways to use it:

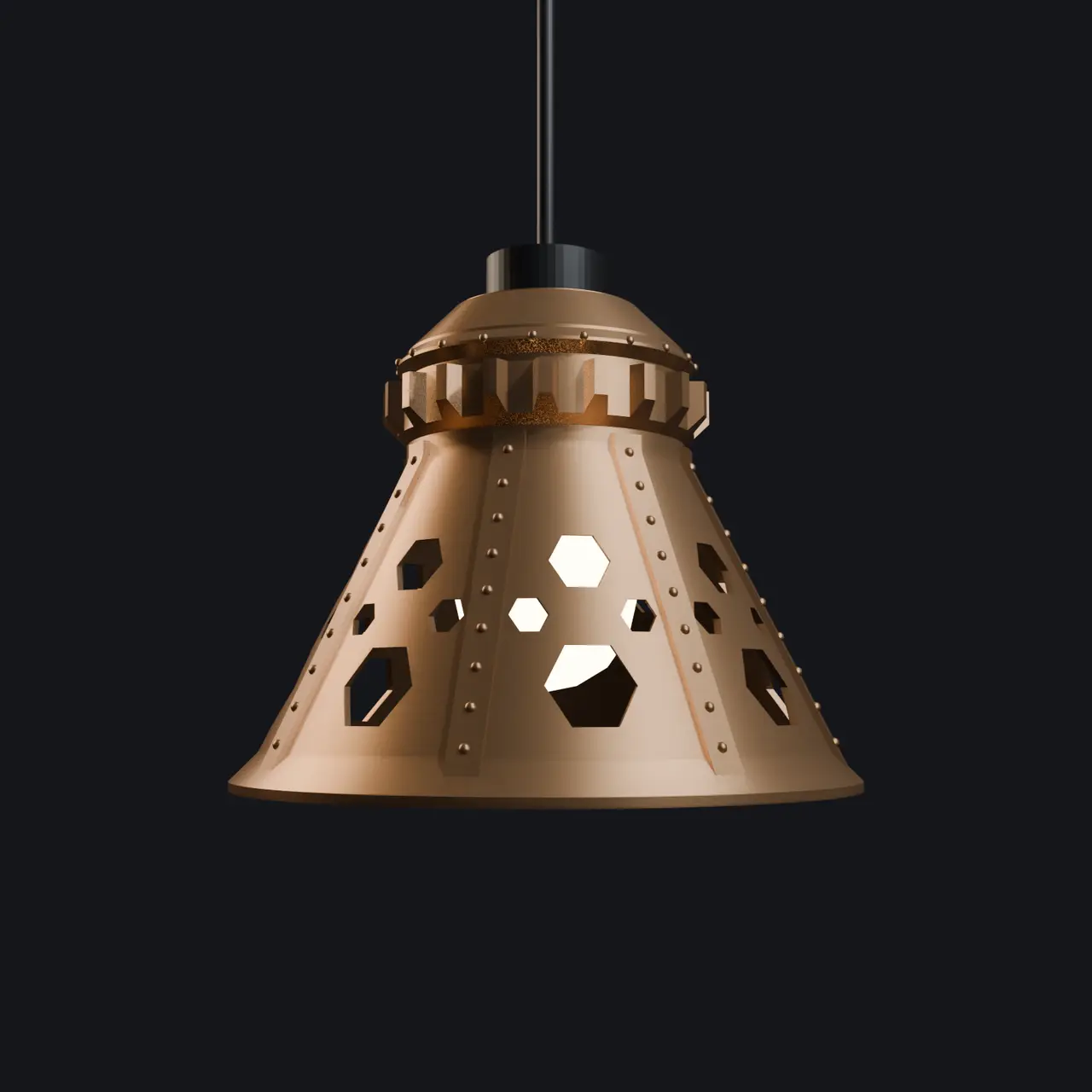

- PENDANT: hang the shade from the ceiling on any standard E27 pendant cord set.

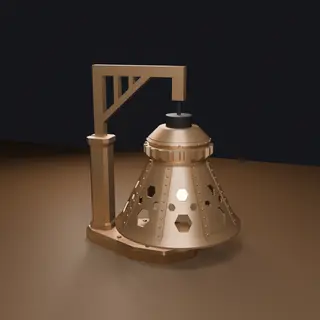

- TABLE LAMP: the shade hangs from the arm of a steampunk stand. The shade hangs over a wide base,
so the lamp is very stable (it needs a tilt of about 24 degrees to tip over).

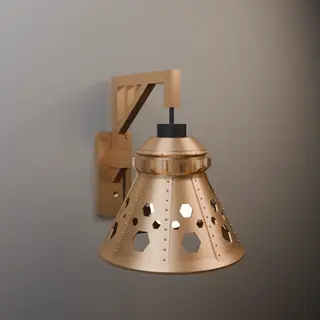

- WALL LAMP: the same arm drops into a wall plate fixed with two screws.
No rewiring, no glue, no screws in the lamp itself: you only need a standard E27 pendant cord set
(cable + lamp holder with shade ring) and an LED bulb. The cable snaps into hidden channels of the

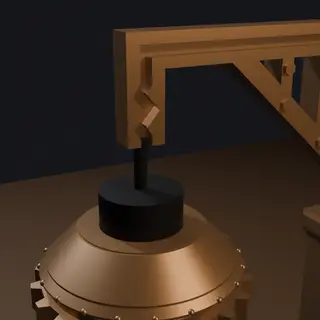

stand, and a zig-zag cable grip at the tip of the arm holds the shade at the height you choose.
Every part prints without supports and is already oriented in the STL files.
WHAT TO PRINT
- Pendant lamp ...... Shade
- Table lamp ........ Shade + Arm + Table_Column + Table_Base
- Wall lamp ......... Shade + Arm + Wall_Plate
PARAMETERS
- Shade: 202 mm diameter x 158 mm high. 8 riveted seams, 24 hexagonal vents, 20-tooth geared neck, beaded rim, 200 mm wide.
- Stand: bolted truss bracket, square column with bolted plates, industrial base with hex bolts, steel-style wall plate.
- Mounting hole: 40.5 mm diameter with a 3 mm thick flat clamping area (standard E27 holder
with threaded sleeve and shade ring).
- Table lamp assembled: 263 x 202 x 293 mm (L x W x H), about 820 g printed
including the shade. Static tip-over angle about 24 deg in the weakest direction.
- Wall lamp: projects 253 mm from the wall, 248 mm high in total.
- Joints: 12 x 14 mm rectangular pegs in 12.5 x 14.5 mm sockets (0.25 mm clearance per side).
- Cable channel: snap-in, 5.4 mm mouth / 6.8 mm inside, for round 2-core cords of 6-7 mm.
- Bulb: A60 LED (60 x 108 mm) or LED filament ST64 / G80; at least 24 mm from glass to plastic.
- Approximate filament: shade 247 g, arm 65 g, column 99 g,
base 297 g, wall plate 76 g.
Descripción original del autor, publicada en Cults3D.
