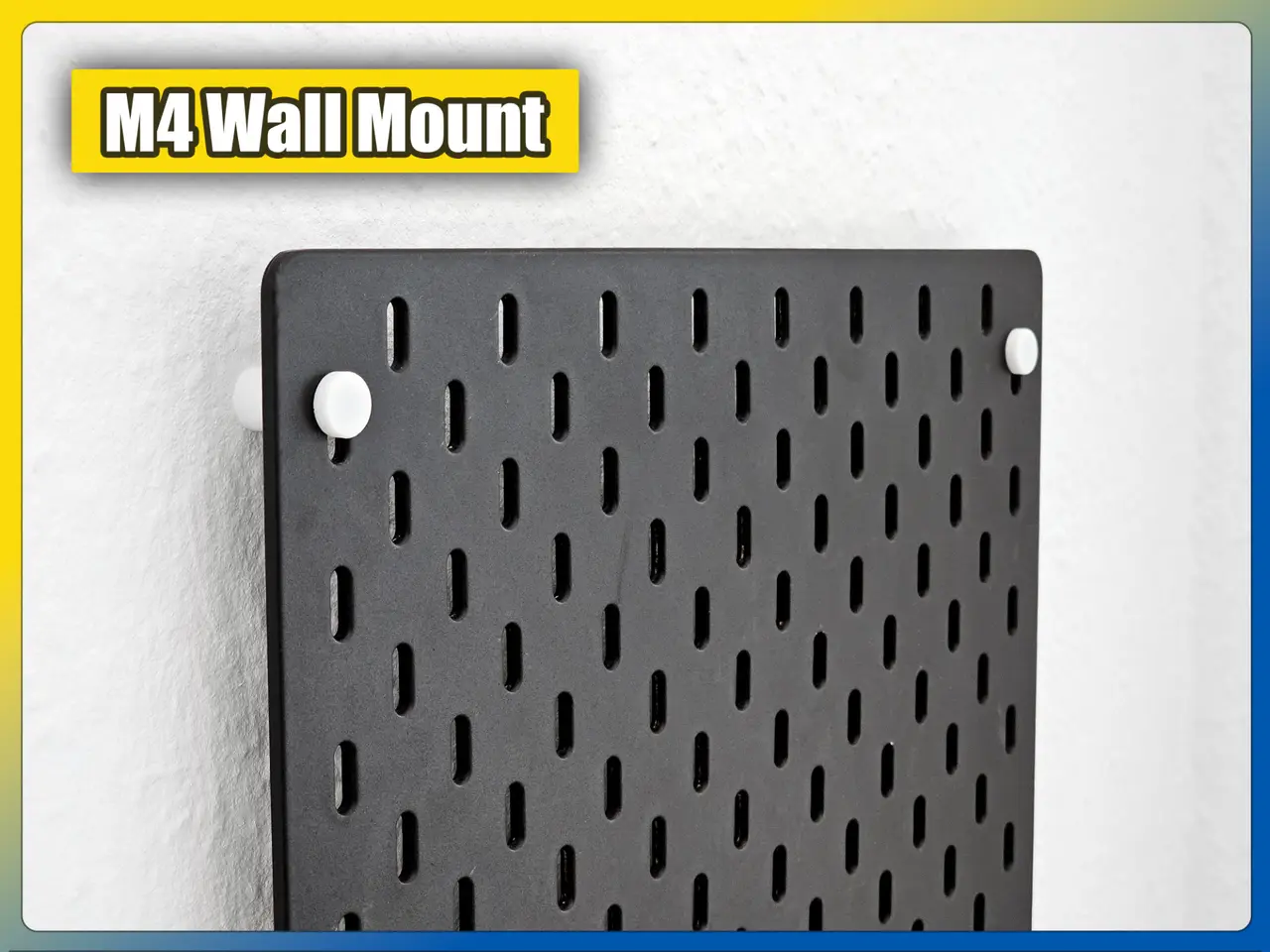

IKEA Skadis Wall Mount
por AU3D en MakerWorld
This streamlined mounting mechanism is perfectly suited for both the original IKEA Skadis boards and those crafted from DIY 3D-printed designs. It includes a 20mm version that seamlessly integrates with the original mounting system. This variant allows for either reinforcing the lower section of…
MakerWorld entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalStandard Digital File License
Licencia estándar de archivos digitales: solo uso personal. No se permite compartir, revender ni subir el archivo a otros sitios, ni vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a AU3D.
Archivos (9)
- Cap for Slot.stl STL · 588 KB
- Countersunk Rosette Slot.stl STL · 172 KB
- Standoff 10mm.stl STL · 92 KB
- Standoff 20mm.stl STL · 141 KB
- Panhead Rosette.stl STL · 185 KB
- 4x Wall Mount with 10mm Standoff.3mf 3MF · 1,2 MB
- 4x Wall Mount with 20mm Standoff.3mf 3MF · 1,2 MB
- 4x Wall Mount with 10mm Standoff for A1 Mini.3mf 3MF · 1,2 MB
- 4x Wall Mount with 20mm Standoff for A1 Mini.3mf 3MF · 1,2 MB
- Categoría
- Herramientas
- Formatos
- STL, 3MF
- Descargas
- 36,943
- Publicado
Sobre este modelo

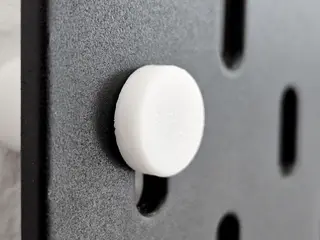

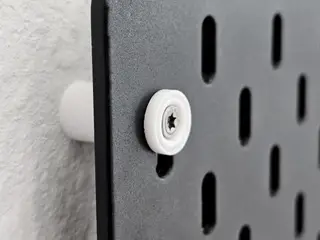

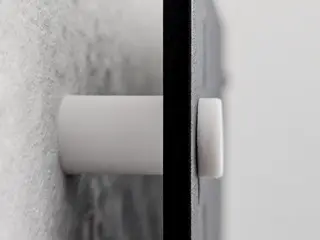

This streamlined mounting mechanism is perfectly suited for both the original IKEA Skadis boards and those crafted from DIY 3D-printed designs. It includes a 20mm version that seamlessly integrates with the original mounting system. This variant allows for either reinforcing the lower section of the board or completely substituting the standard mounts. Meanwhile, the 10mm version minimizes the board's footprint while still providing generous space at the rear for any accessories. After installation, the screw cap can be effortlessly attached to the countersink washer, concealing the screws for a clean finish. It is just pushed it place. Please allow the components to cool down on their own before detaching them from the build plate. Premature removal could result in deformation. Updates 31.07.2024: I have added a variant for panhead style screws that accommodates all M4 panhead screws and some M5 screws. The screw head must be smaller than 9mm in diameter. Installation Use M4 screws (recommended 50mm+ for the 20mm standoff version; 40mm+ for the 10mm standoff version). Use proper wall anchors! Be careful not to overtighten the screws! Skadis Collection I am constantly developing more IKEA Skadis attachments. Check out my
- IKEA Skadis Shelves, Trays and Container Collection
- General IKEA Skadis Collection
- IKEA SKADIS Boards Collection
Descripción original del autor, publicada en MakerWorld.
