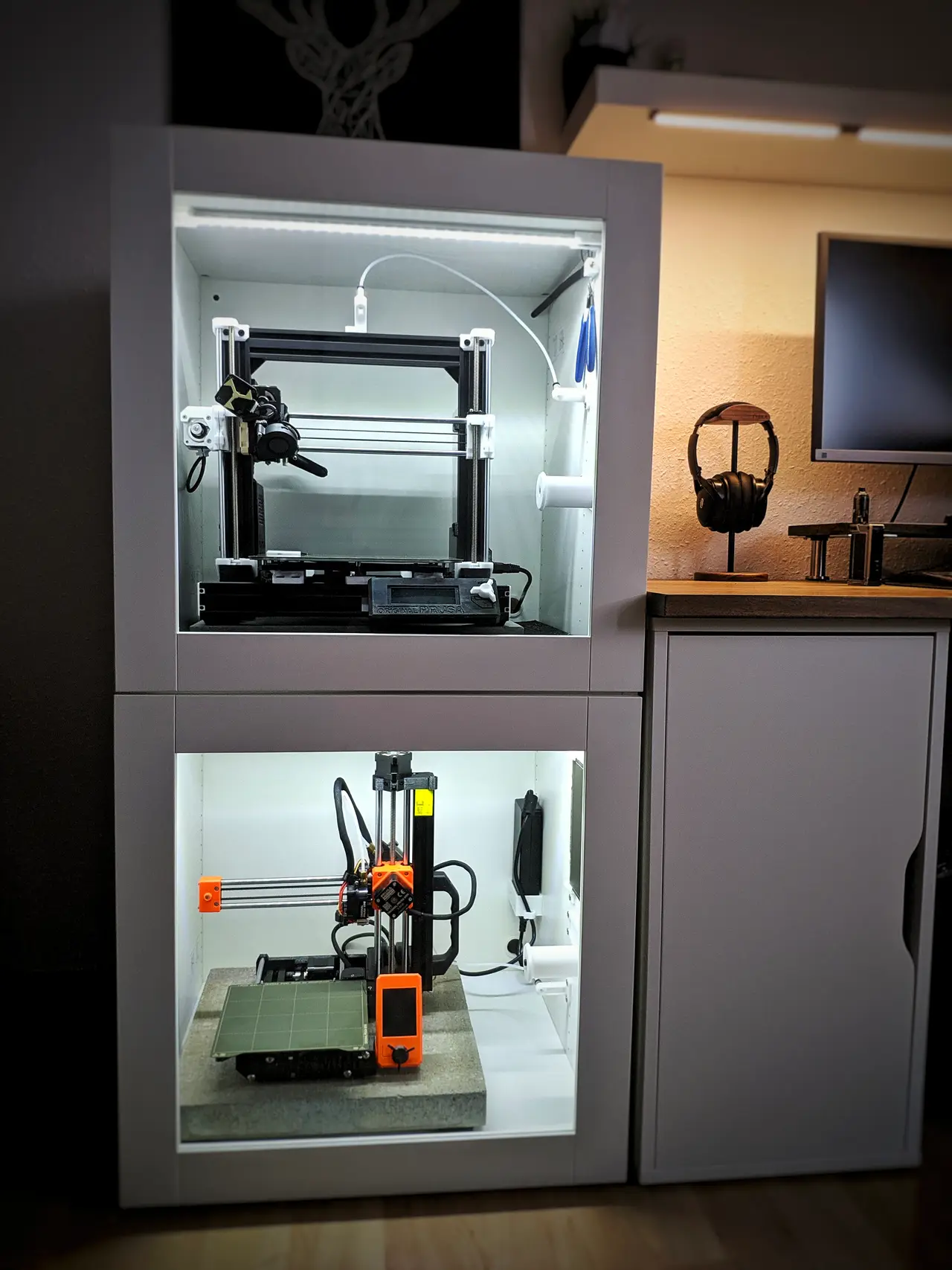

Ikea Platsa Modular Dual Prusa Enclosure (MINI/MK3s/Bear)
por padigree en Printables
Second Attempt with some Changes now. ! !Work is still in progress.
Licencia
Uso comercial permitidoPuedes imprimirlo, modificarlo y venderlo dando crédito al autor.
Al descargar aceptas respetar la licencia y dar crédito a padigree.
Archivos (27)
- platsa_lamp_wo_switch_lr.stl STL · 67 KB
- platsa_inlet_powersupply_32mm.stl STL · 38 KB
- platsa_raspberrycase_pinmount.stl STL · 186 KB
- platsa_usb_tool_dualsd_pinmount.stl STL · 90 KB
- platsa_mini_sheet_mount_v2.stl STL · 163 KB
- platsa_pliers_pinmount.stl STL · 34 KB
- platsa_mini_psu_mount_right.stl STL · 216 KB
- mini_ptfe_feeder_platsa_m6_straight_easy.stl STL · 136 KB
- platsa_mini_sh_mount_v2.stl STL · 37 KB
- platsa_lamp_w_switch_right_final.stl STL · 39 KB
- platsa_spool_holder_short_69mmspool.stl STL · 468 KB
- platsa_usb_pinmount_single.stl STL · 25 KB
- mini_ptfe_feeder_platsa_m6_straight.stl STL · 137 KB
- mk3s_topbowden_platsaenclosure.stl STL · 122 KB
- mini_ptfe_feeder_platsa_m10_straight_easy.stl STL · 135 KB
- mk3_tool_sd_usb_hex_taped.stl STL · 32 KB
- platsa_spoolholder_cap.stl STL · 1,0 MB
- mini_ptfe_feeder_platsa_m10_straight.stl STL · 136 KB
- mini_usb_tool_mount_taped.stl STL · 42 KB
- platsa_adapterplatte_m4hex_final.stl STL · 143 KB
- bear_filament.stl STL · 121 KB
- platsa_adapterplatte_m3insert_final.stl STL · 81 KB
- ptfe_feeder_platsa_m6_45_deg.stl STL · 2,9 MB
- ptfe_feeder_platsa_m10_45_deg.stl STL · 2,9 MB
- platsa_bowden_m6_right.stl STL · 2,9 MB
- platsa_spoolholder.stl STL · 6,0 MB
- ziptiesocket.stl STL · 27 KB
- Categoría
- Para tu impresora
- Formatos
- STL
- Descargas
- 1,028
- Publicado
Sobre este modelo
Second Attempt with some Changes now.
!!Work is still in progress. Materials list and files are not complete at the moment!!
waiting for my second anti vibration mat and a new (smaller) stone for the Mini.

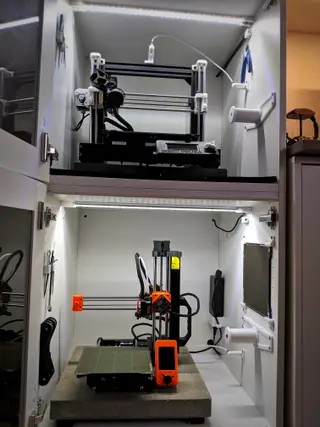

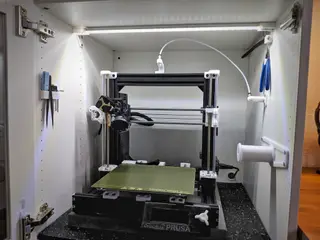

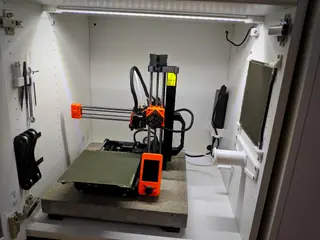

All work will be continued here for now. Rebuilt the thing, edited some parts, Additionally I added the Prusa Mini and Swapped my MK3s to Bear System. Some parts will be added in future.
If you need additional info, ask in the comments section, so everybody can read it :) Feel free to ask, remix, print, edit and say thanks.
After my IKEA Lack table was a bit too unstable for me and would've optically no longer fit well into my new apartment, I decided to build another (strong) housing for my printers. In the print files you can find some Remixes or Self creations of 3d printed parts used to make this enclosure.
This enclosure is modular, because you can stack them over each other or place and connect another next to each other. Like a big Kallax system out of Platsas :D
Bill Of Material:
IKEA things:
2x/4x HJÄLPA hinges: 603.312.00 [Only these if you don't want softclose]
2x/4x BESTÅ hinges : 802.612.58 [if you like softclose + need aditional HJÄLPA Hinges]
1x/2x VÄRD 60x60cm doors: 603.473.19
1x/2x Platsa body 60x55x60 cm: 103.309.72
Local Store things:
1-2x Anti vibration dampening mat (60x60cm thickness between 0,6 and 2cm)
Stone 40x40x3cm (or a smaller variant for the mini - 30x30x2)
Some Wood screws (4,5x16) or similar
Double sided Tape for some tool holders
Some PC4M6 or M10 Connectors (PTFE Couplers)
Some M3 push-in Threads or hex nuts
PTFE Tube for reverse Bowden systems
Some wires for Lighting
Leds for Lighting (and the profile)
Maybe a Switch
Power Strip
Drill / Hole-saw (32mm for Power inlet/s)
Things:
Universal:
Platsa_Spool_Holder_short_69mmSpool (Shortened Spool holder for 800g / 1000g Spools ; You'll also need 1x Platsa_SpoolHolder_Cap)
Platsa_SpoolHolder (his bigger brother - used it 8 months without problems, now after the bear conversion it seems to be a bit to big. You'll also need 1x Platsa_SpoolHolder_Cap. Thanks to dermartin https://www.thingiverse.com/dermatin)
