ICOM IC-7300/IC-9700 stacking bracket
por Gemini Wing en Printables
Stacking bracket for ICOM IC-7300/IC-9700 transceivers. Wanted to be able to use the tilt foot on the lower radio.
Licencia
Uso comercial permitidoPuedes imprimirlo, modificarlo y venderlo dando crédito al autor.
Al descargar aceptas respetar la licencia y dar crédito a Gemini Wing.
- Categoría
- Tecnología
- Formatos
- STL
- Descargas
- 0
- Publicado
Sobre este modelo

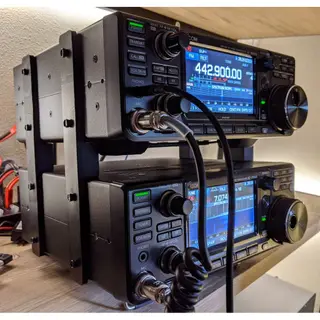

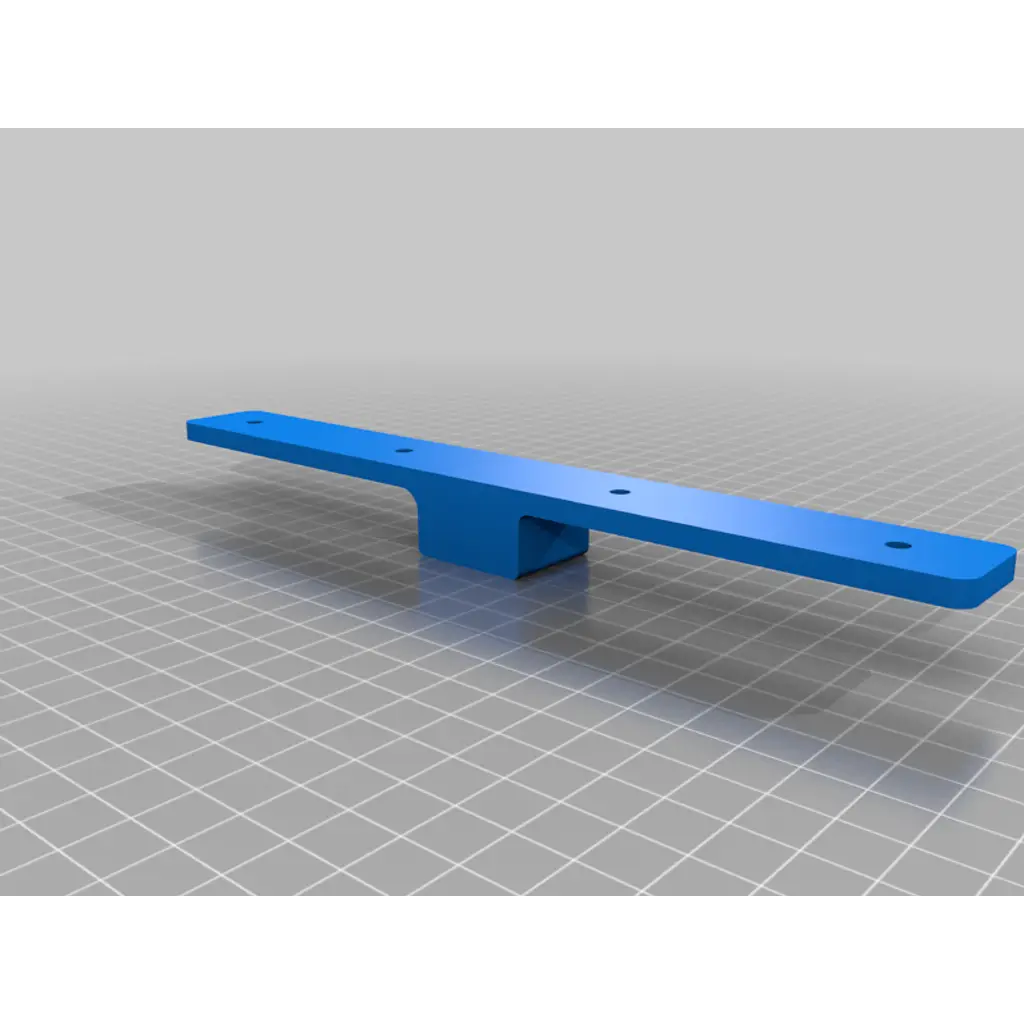

Stacking bracket for ICOM IC-7300/IC-9700 transceivers. Wanted to be able to use the tilt foot on the lower radio and a little more space between the units. This bracket (x4) provides the necessary stability and additional air gap.
Note the asymmetry: the top and bottom of the radio cases have different curve radii.
Use at your own risk. I designed this for a fixed spot. Would strongly encouragenot moving the radios in this configuration, nor using mobile.
Print Settings
Printer Brand:
Prusa
Printer: I3 MK3S
Rafts: No
Supports: No
Resolution: 0.20mm
Infill: 20%
Filament: Atomic Carbon Fiber Extreme Black PETG CF Notes: Printed with four perimeters to get decent wall thickness.
Category: Electronics
Descripción original del autor, publicada en Printables.
