HP 325 FHD webcam Mount for Voron 2.4
por andreacsantiagoz en Thingiverse
A simple (and somewhat crude) mount for a HP 325 webcam that you can mount on any of the exterior rails of the Voron V2.4. This was a simple model I made for a webcam I already owned. Tighten the nuts and bolts once the desired webcam orientation is set. I routed the cable through one of the...
Licencia
Uso comercial permitidoCC BY-SA 4.0 — Atribución, compartir igual
Puedes usarlo y modificarlo dando crédito; las versiones modificadas deben compartirse con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a andreacsantiagoz.
Archivos (5)
- Categoría
- Para tu impresora
- Formatos
- STL
- Descargas
- 0
- Publicado
Sobre este modelo

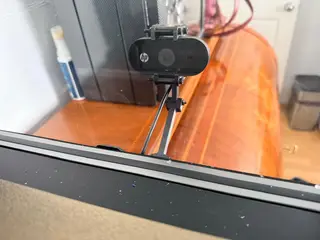

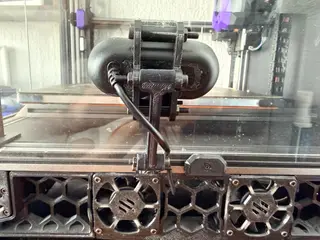

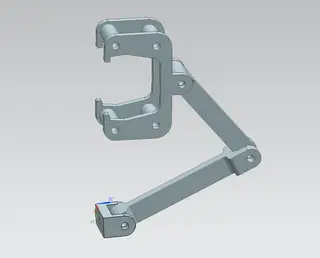

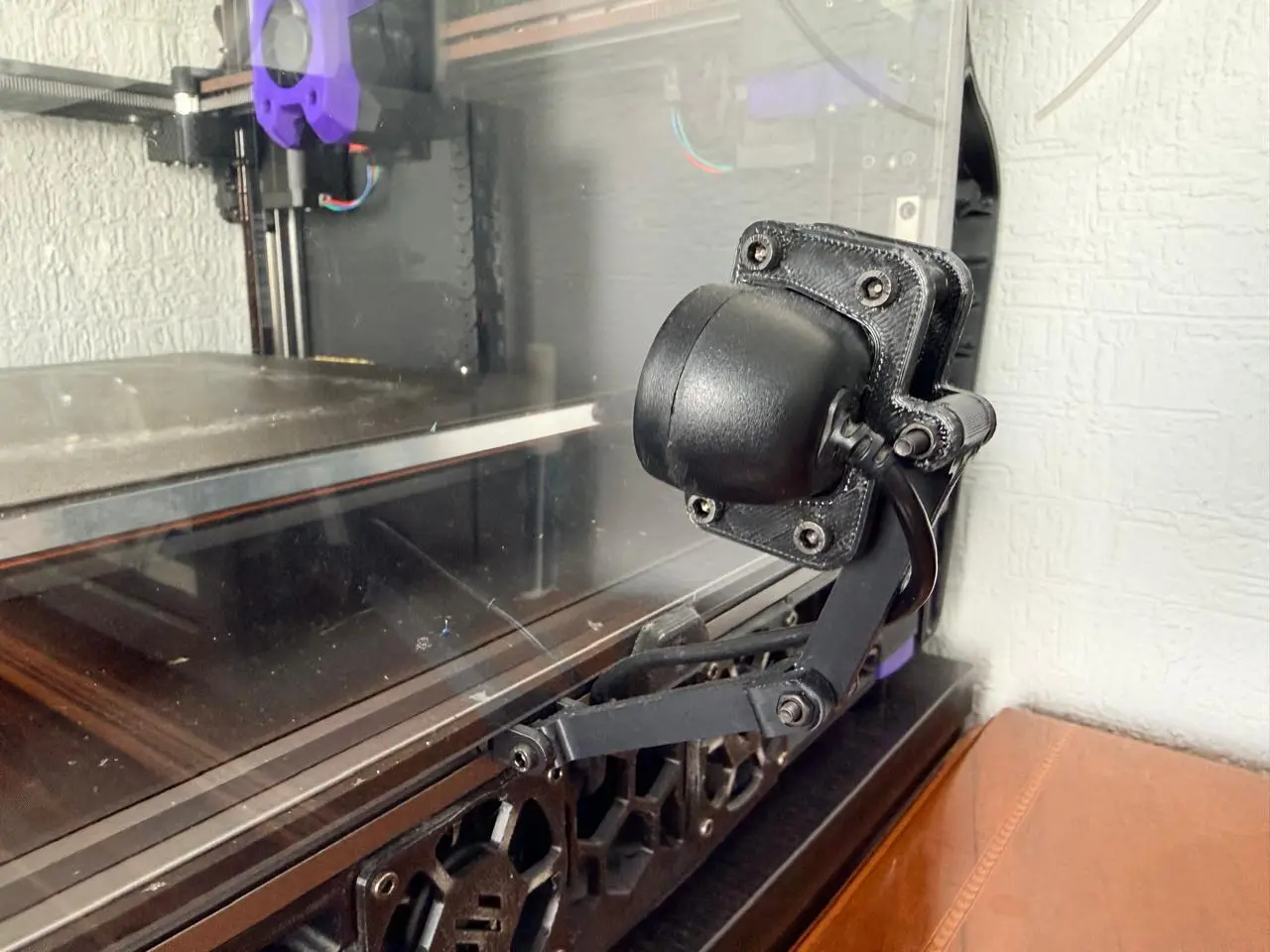

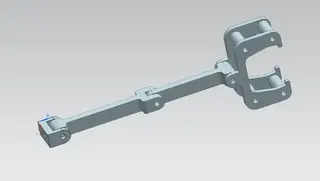

A simple (and somewhat crude) mount for a HP 325 webcam that you can mount on any of the exterior rails of the Voron V2.4. This was a simple model I made for a webcam I already owned. Tighten the nuts and bolts once the desired webcam orientation is set. I routed the cable through one of the hexagonal holes in the side skirt and connect it directly to the raspberry pi. Material: PLA or ABS (I preferred ABS) Supports: Not needed Parts to print: One of each Orientation: As loaded. They should have the same orientation as the reference image of the slicer. BOM: - 7x 3M nuts - 5x 3M 30mm bolts - 2x 3M 20mm bolts - 1x 3M 8mm bolt - 1x 3M T nut
Descripción original del autor, publicada en Thingiverse.
