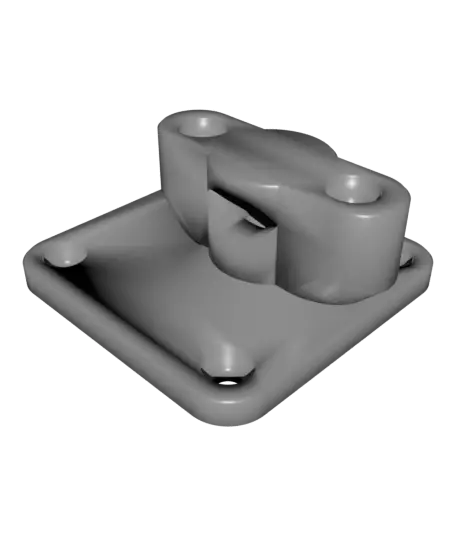

Hotend Cable Guide for Direct Drive Ender 3 V2 & Other Creality 3D Printers
I have overengineered a cable guide for my Direct Drive Ender 3 V2 setup. It uses the original Extruder Stepper Motor mount (42 x 42 mm) to guide the power cable to the hotend. The ball bearings allow the cables to follow any movement of the print head.
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalSin licencia indicada
El autor no indicó una licencia: todos los derechos le pertenecen. Úsalo solo para imprimir en casa y consulta al autor para cualquier otro uso.
Al descargar aceptas respetar la licencia y dar crédito a Patrick M.
Archivos (2)

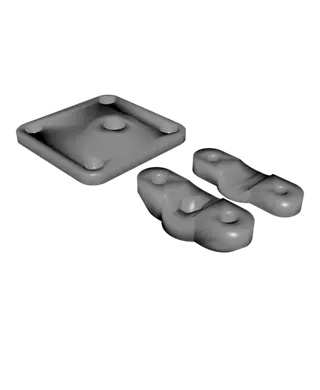

- Cable Guide Parts.stl STL · 523 KB

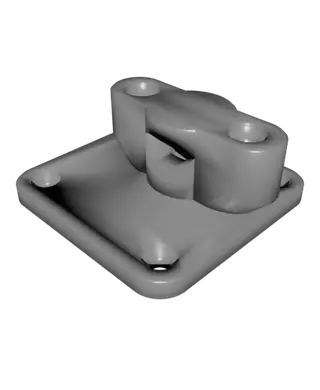

- Cable Guide - Display only.stl STL · 523 KB
- Categoría
- Para tu impresora
- Formatos
- STL
- Descargas
- 509
- Publicado
Sobre este modelo

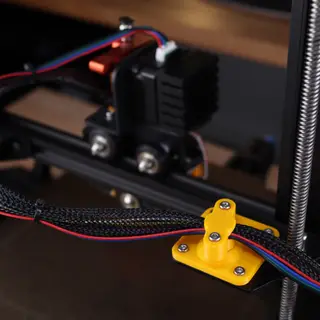

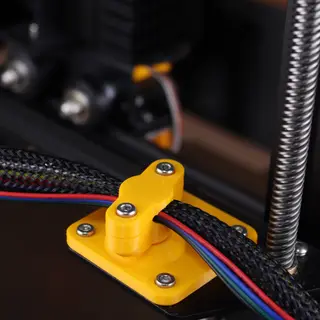

I have overengineered a cable guide for my Direct Drive Ender 3 V2 setup. It uses the original Extruder Stepper Motor mount (42 x 42 mm) to guide the power cable to the hotend. The ball bearings allow the cables to follow any movement of the print head.
The cable guide works with other Creality 3D Printers as well.
Bill of Materials - M3 Threaded Inserts (6x) - https://geni.us/ThreadedInserts - M3 Round Head Screws & Hex Nuts (various lengths) - https://geni.us/M3-Screws - 3x7x3 mm Ball Bearings - https://geni.us/7pVaEB
Print Settings - Filament: PLA - https://geni.us/FavFilament - Print Temp: 210 °C - Bed Temp 60 °C - Perimeters: 3 - Infill: 25% - Support: Paint on supports for selected parts
I am printing with a Creality CR-6 SE & Ender 3 V2
Check out this video for more details on the installation: https://youtube.com/shorts/VOmFvDSy6BU
License Type = CC BY-NC-SA (CC Attribution-NonCommercial-ShareAlike)
