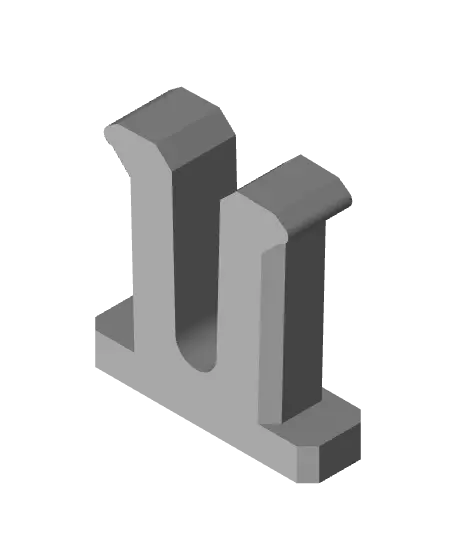

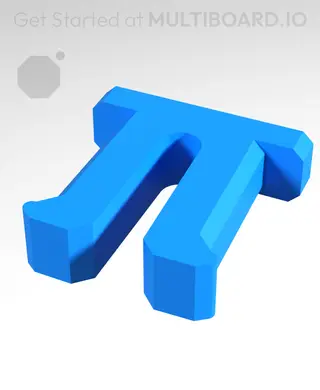

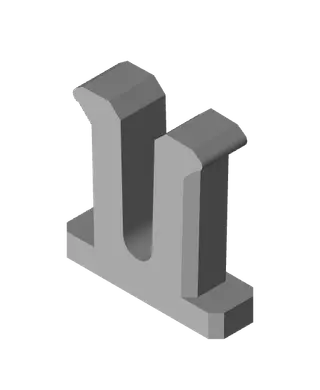

Holding Pin
por Jonathan K en Thangs
Used for locking external attachments (like Extensions (https://link.Multiboard.io/multibin-extensions) or Lids (https://link.Multiboard.io/bin-lids)) to Multibins.
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Revisa las condicionesMULTIBOARD LICENCE - Download Terms and Conditions - 12-June-2024
El autor usa su propia licencia. Revisa sus condiciones en la página original antes de compartir, modificar o vender.
Al descargar aceptas respetar la licencia y dar crédito a Jonathan K.
Archivos (1)
- External Bin Stacking Pin.stl STL · 23 KB
- Categoría
- Herramientas
- Formatos
- STL
- Descargas
- 4,678
- Publicado
Sobre este modelo
Used for locking external attachments (like Extensions (https://link.Multiboard.io/multibin-extensions) or Lids (https://link.Multiboard.io/bin-lids)) to Multibins.

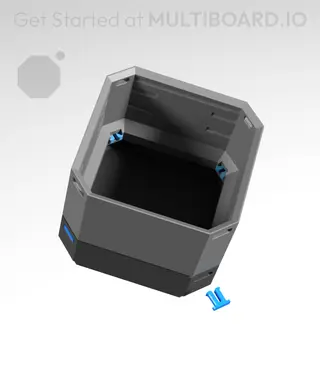

The Pin in inserted into the Multibin's corner holes from the outside.

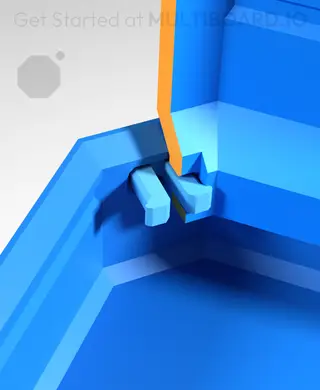

Use the holding pin to stop a multibin shell from sliding out of the rail plate. The holding pin connects up from inside the shell up into the rail plate.
Learn more about this part at https://multiboard.io/knowledge-hub
Printing Guidelines:
Use 3 perimeter wall thickness, 0.2 mm layer height, 15% infill, and no supports. Apart from that, use your printer's default settings.
The printing orientation is as provided in the file. Make sure the downloaded files are .STL. This part has been designed with a tolerance of 0.25 mm. Your printer will need to be able to bridge gaps of up to 30 mm for some designs.
For more information about printer settings, click here (https://multiboard.io/knowledge-hub/printing-guidelines).
---

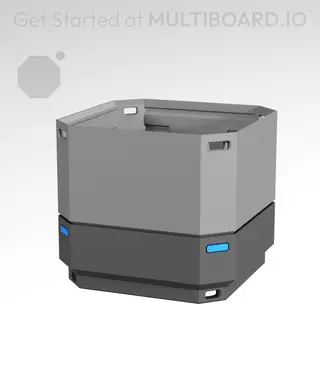

This object is part of Multiboard, a FREE and ridiculously modular organization system with thousands of parts, for creating the most adaptable workspace possible. Learn more and find ALL the parts at https://multiboard.io
Descripción original del autor, publicada en Thangs.
